Westinghouse Air Brake Company Instruction Pamphlet No 5066-5 RL brake equipment
Westinghouse Air Brake Company Instruction Pamphlet No 5066-5

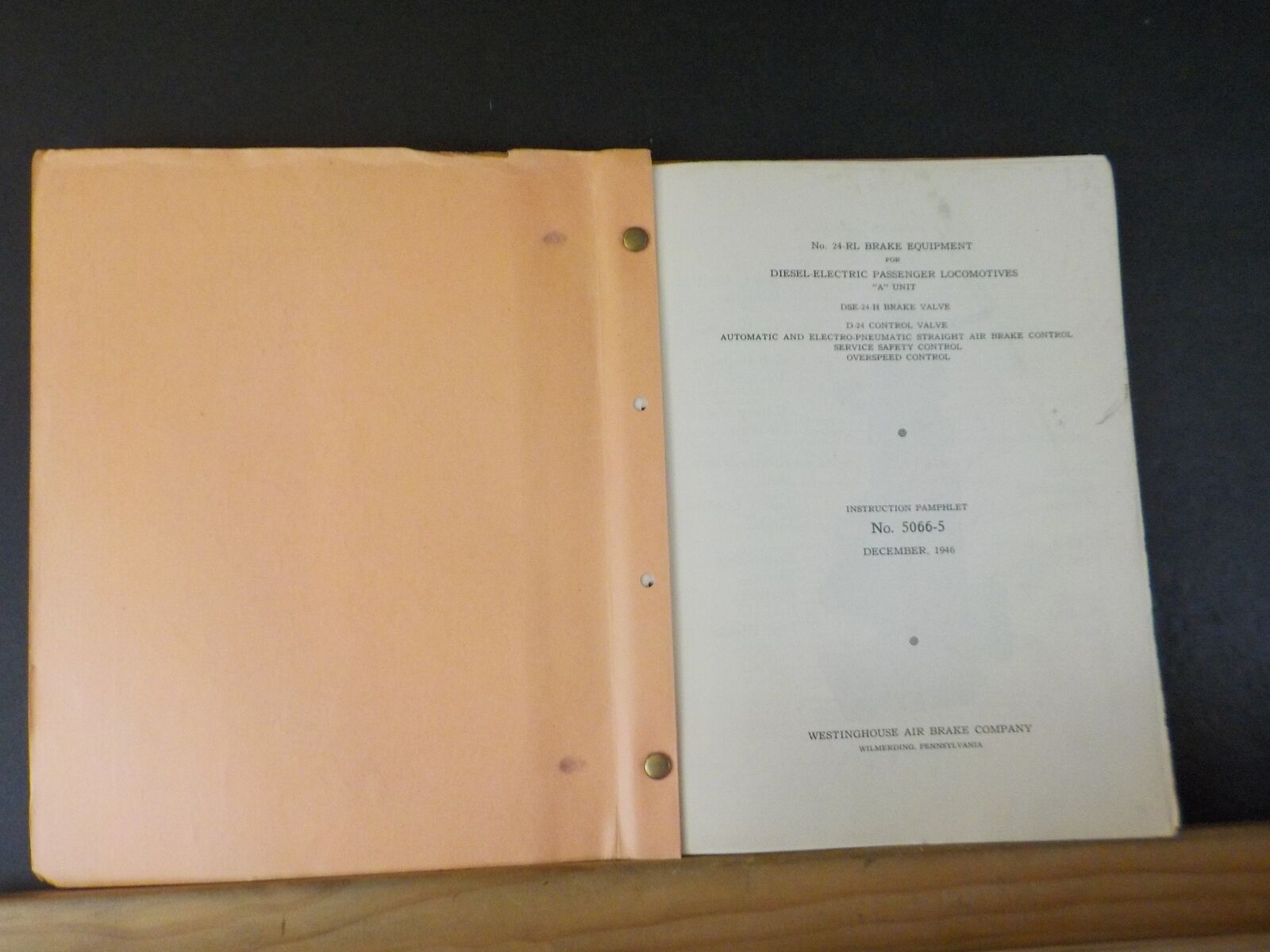

Metal Clasp Folder
122 pages
December 1946
CONTENTS

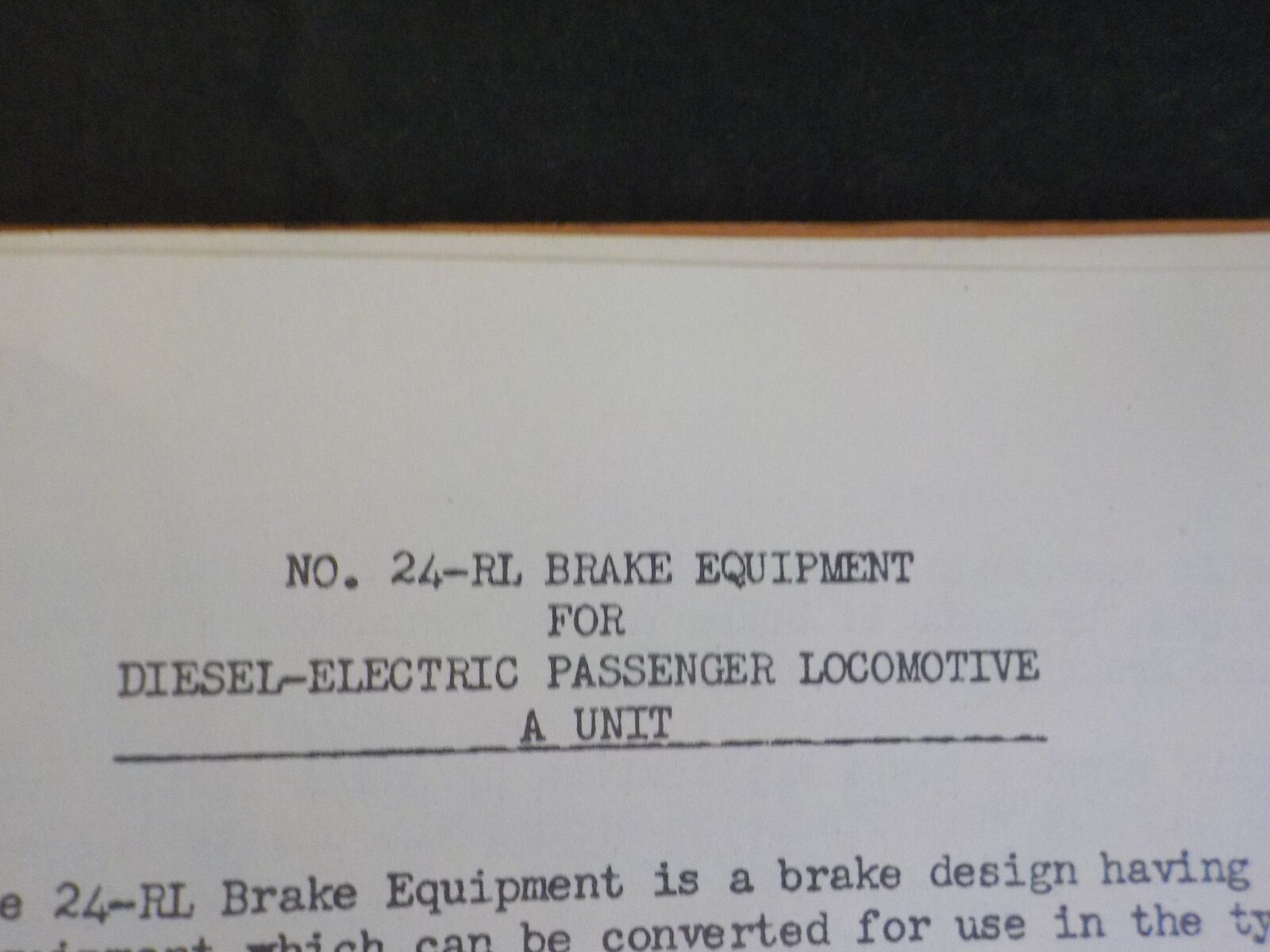

No 24-RL Brake Equipment for Diesel-Electric Passenger Locomotive A Unit
Parts of the Locomotive A Unit Plate A
Parts of the Overspeed Protection and Safety Control Equipment
Description of the Parts
Volume Reservoir
Type H Air Filter Fig 23
Wiring
Safety Control Devices
Overspeed Protection Devices
Operation of the Equipment
Independent Brake valve Operation
Safety Control Feature
Figure DSE 24 h Brake Valve

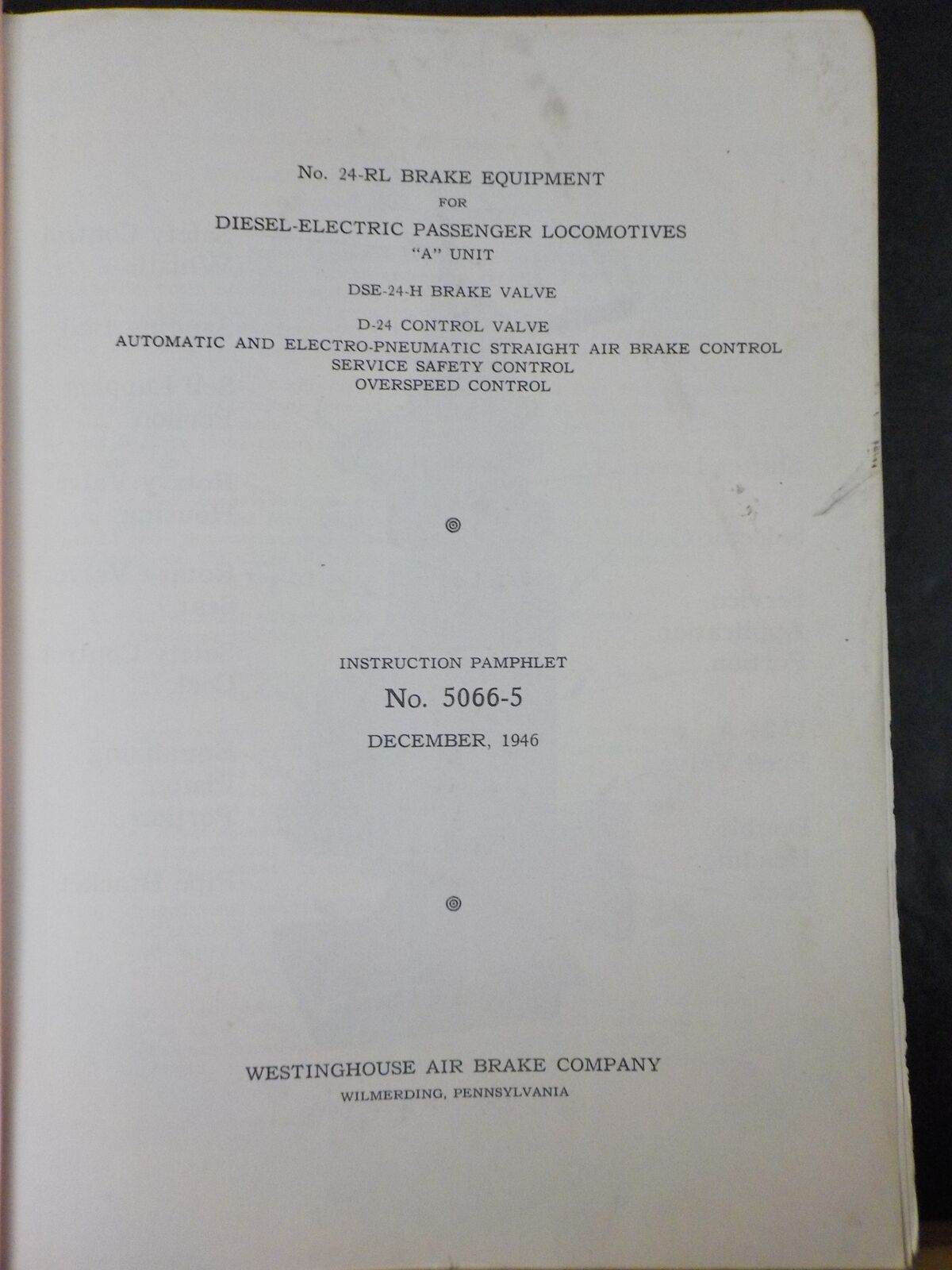

This pamphlet contains No 24-RL Brake Equipment for Diesel-Electric Passenger Locomotives A Unit, DSE-24-H Brake Valve, D-24 Control Valve, Automatic and Electro-Pneumatic Straight Air Brake Control, Service Safety Control, Overspeed Control
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
