Union Pacific Common Standard Drawings Vol 1 Bridges & Buildings Cattle Guards
Union Pacific Common Standard Drawings Bridges & Buildings Cattle Guards, Stock Chutes & Fire Protection from James L Ehernberger Collection Vol 1
Soft Cover Stapled
80 Pages
Copyright 1994

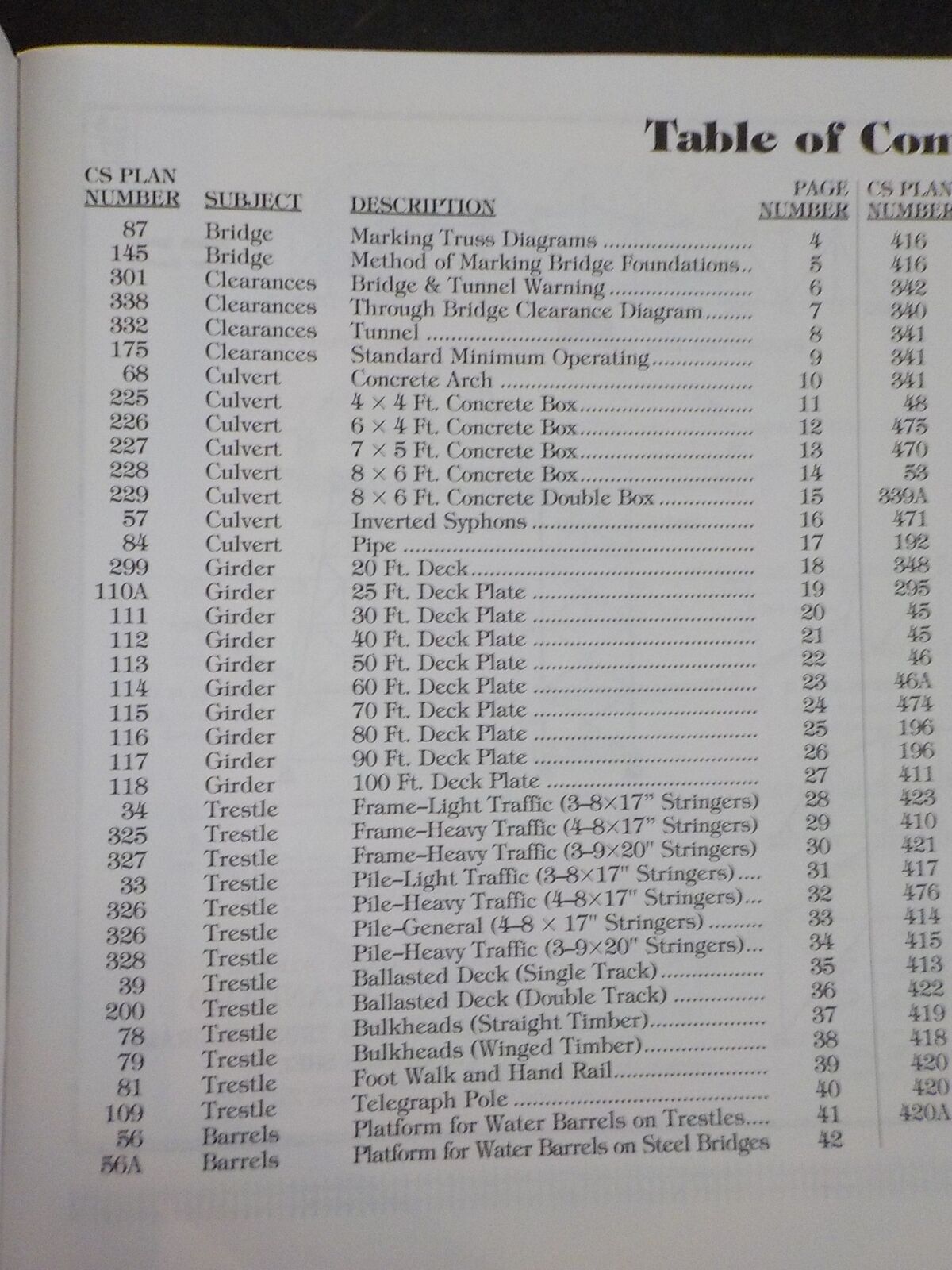

CONTENTS
CS Plan No.SubjectDescription
87BridgeMarking Truss Diagrams 4
145BridgeMethod of Marking Bridge Foundations 5
301Clearances Bridge & Tunnel Warning 6
338Clearances Through Bridge Clearance Diagram 7
332Clearances Tunnel 8
175Clearances Standard Minimum Operating 9
68CulvertConcrete Arch 10
225Culvert4 x 4 Ft. Concrete Box 11
226Culvert6 x 4 Ft. Concrete Box 12
227Culvert7 x 5 Ft. Concrete Box 13
228Culvert8 x 6 Ft. Concrete Box 14
229Culvert8 x 6 Ft. Concrete Double Box 15
57CulvertInverted Syphons 16
84CulvertPipe 17
299Girder20 Ft. Deck 18
110AGirder25 Ft. Deck Plate 19
111Girder30 Ft. Deck Plate 20
112Girder40 Ft. Deck Plate 21
113Girder50 Ft. Deck Plate 22
114Girder60 Ft. Deck Plate 23
115Girder70 Ft. Deck Plate 24
116Girder80 Ft. Deck Plate 25
117Girder90 Ft. Deck Plate 26
118Girder100 Ft. Deck Plate 27
34TrestleFrame-Light Traffic (3-8x 17" Stringers)28
325TrestleFrame-Heavy Traffic (4-8x 17" Stringers)29
327TrestleFrame-Heavy Traffic (3-9x 20" Stringers)30
33TrestlePile-Light Traffic (3-8 x17" Stringers) 31
326TrestlePile-Heavy Traffic (4-8x 17" Stringers) 32
326TrestlePile-General (4-8 x 17" Stringers) 33
328TrestlePile-Heavy Traffic (3-9x 20" Stringers) 34
39TrestleBallasted Deck (Single Track) 35
200TrestleBallasted Deck (Double Track) 36
78TrestleBulkheads (Straight Timber) 37
79TrestleBulkheads (Winged Timber) 38
81TrestleFoot Walk and Hand Rail 39
109TrestleTelegraph Pole 40
56BarrelsPlatform for Water Barrels on Trestles 41
56ABarrelsPlatform for Water Barrels on Steel Bridges42
416BarrelsWater Barrel (Wood) for Fire Protection43
416BarrelsWater Barrel (Steel) for Fire Protection 44
342Cattle Guard Wood Type 45
340Cattle Guard Pheney Type 46
341Cattle Guard Kalamazoo Type 47
341Cattle Guard Kalamazoo Type 48
341Cattle Guard Kalamazoo Type 49
48Stock Chute Portable Type 50
475Stock Chute For Unloading Stock from Trucks 51
470Stock Yards Reinforced Concrete Water Troughs 52
53StationLayouts for Single Track 53
339AStationPlatforms for Important Stations 54
471StationWooden Door Mat for Depots 55
192StationClearances-Build., Platforms & Sidings 56
348StationFrame Telephone Booth 57
295StationTrack Scale 58
45Tool House Section-Plan & Fixtures 59
45Tool House Section-Plan, Sections & Elevations 60
46Tool House Section-With End Entrance 61
46ATool House Section-With Side Entrance 62
474Tool House Section-Scrap Bins 63
196Tool House Signal Maintainers 64
196Tool House Signal-Plan, Sections & Elevations 65
411FireChimney Details for Stove Pipe Connection66
423FireRoof Ventilator for Smoke Stacks 67
410FireExtinguisher Plan & Elevations 68
421FireHose Cabinet for Outside Installation69
417FireLadder & Pump Tank Box Ele. & Sec 70
476FireFlagging Equipment Containers 71
414FireChemical Engine House Plans 72
415FireHose Cart House 73
413FireHydrant Hose House Plans 74
422FireRack for Washing & Drying Fire Hose 75
419FireBin for Rags & Waste 76
418FireGrease Case - Rubbish Incinerator 77
420FireOxygen & Acetylene Storage Building78
420FireOxygen & Acetylene Storage Building79
20AFireOxygen & Acetylene Storage Building80
PREFACE
A principal goal accomplished by the Great Rebuilder of the Union Pacific, Edward H. Harriman, was standardization. Beginning in 1904 and for years afterwards, Union Pacific Common Standards were often known as "Harriman Standards." Mergers in recent years brought into the Union Pacific network different standards, therefore, new standards were necessary, which are now known as "Engineering Standards." The pages reproduced here were in effect at various intervals between 1904 and 1990.
Primarily for historical purposes it was necessary to include more than one drawing of some subjects. Many items no longer exist in the current standards, but have been included to represent what was a part of a variety of subjects in the Common Standards. Every effort has been made to utilize original materials; however, in a few isolated cases only photostat copies were available.
Due to their complexity of details, many drawings were discontinued as Common Standard, and were incorporated into the Chief Engineer category. The general signal system detailed drawings were never a part of the Common Standards; however, minor signal related items were. Track components in the original set of drawings cover various rail weights, but due to space limitations, only the 100 pound weight is included in this series. One must also bear in mind that these drawings normally consist of the small simple type system-wide structures, while the Chief Engineer drawings cover details for larger facilities or many other subjects.
I wish to express my appreciation to John Bromley of the Union Pacific Public Relations Department for permission to reproduce these drawings, and to Lou Schmitz who provided some higher quality copies making it possible to obtain better reproductions.
JAMES L. EHERNBERGER
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
