Train Shed Cyclopedia #82 Boilers 1919 Part 3

Train Shed Cyclopedia #82 Boilers 1919 Part 3

Regular price $10.00 Sale

Train Shed Cyclopedia #82 Boilers (Part 3) from the 1919 Locomotive Cyclopedia. 64 Full-size Pages reprinted from the Original Edition. At one time or another, almost any kind of rolling equipment can be found in the Train Shed at any major rail terminal. When searching for a name for an open-ended series of books about locomotives, rail and passenger cars, and other information of interest to rail fans and modelers, the concept of the Train Shed seemed to cover almost any topic we might present. Hence the title of this series.
While the text and illustrations in the various issues will come from a variety of sources, they will have at least two things in common. One, each subject will be carefully selected for usefulness. Two, every page will be reproduced from an authentic, original railroad publication in the Newton K. Gregg collection or on loan from another collection. The original will be identified by publisher, date and author (if applicable). Selections of pages will be noted, as will any changes in size of reproduction from the original.
On the outside back cover are titles in print or in preparation. Suggestions for other subjects are welcome: we aim to include in our Train Shed all subjects in large enough demand. By excerpting parts of the original books, instead of printing them in their entirety, we can maintain flexibility and variety, and reproduce valuable works for all to enjoy.

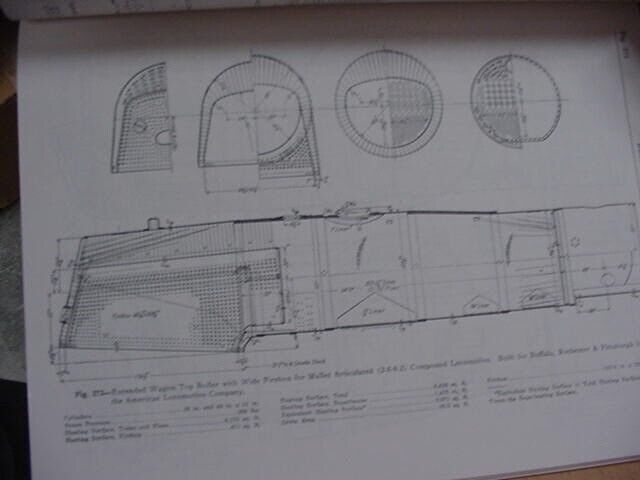

Included in this edition are the following: Vauclain Compound Rack Locomotive for Mountain Service. Built for the Manitou and Pikes Peak by the Baldwin Locomotive Works Cross sections and elevations Names of parts. Extended Wagon Top Boiler with Belpaire Firebox for Mikado and Pacific Locomotives Actual pictures and names of parts. Straight Top Boiler with Wide Firebox and Combustion Chamber for Santa Fe (2-10-2) Locomotive Elevations and Cross sections. Straight Top Boiler with Wootten Firebox for Pacific 4-6-2 Locomotive. Built for Delaware, Lackawanna & Western by American Locomotive Company. Straight Top Boiler with Belpaire Firebox for Consolidation 2-8-0 Locomotive. Built for Toledo, Peoria & Western by the Baldwin Locomotive Works. Extended Wagon Top Boiler for Shay Geared Locomotive. Built for Geo. Palmer Lumber Company by the Lima Locomotive Works. Extended Wagon Top Boiler with Belpaire Firebox for Mikado 2-8-2 Locomotive. Built for Great Northern by the Baldwin Locomotive Works. Extended Wagon Top Boiler with Wide Firebox for Consolidation 2-8-0 Locomotive. Built for Central Vermont by the American Locomotive Company. Extended wagon top Boiler with Belpaire Firebox for Decapod 2-10-0 Locomotive. Built by the Pennsylvania Railroad. Includes Elevations and cross sections. Boilers: Conical--Conical Boiler with Wide Firebox for Pacific 4-6-2 Locomotive. Built for Leigh Valley by the Baldwin Locomotive Works. Elevations and Cross sections. Boiler Details; Fireboxes Elevations and Cross sections. For Pennsylvania Railroad and others. Boiler details Rivets Fireboxes Seams Braces Stay bolts Fire Doors Domes and Miscellaneous Lagging and Combustion Oil Burning Arrangements Oil Burners Brick Arch Pulverized Fuel Throttle Valves and Dry Pipe Throttle Levers Steam Pipes. Relates to all major RR systems and some small Railroads.
