Train Shed Cyclopedia #32 1927 Locomotives Tenders

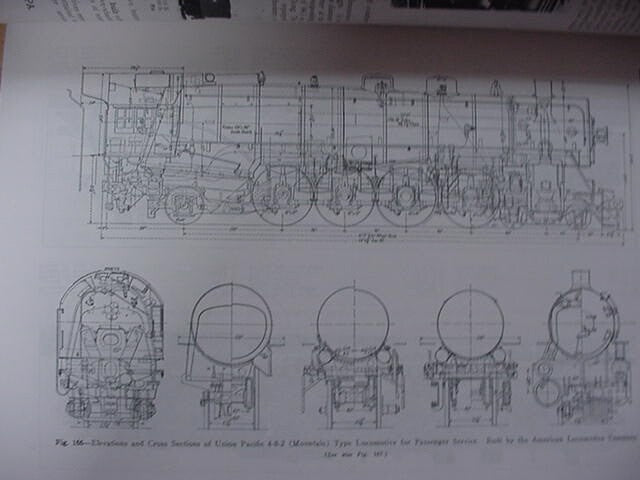

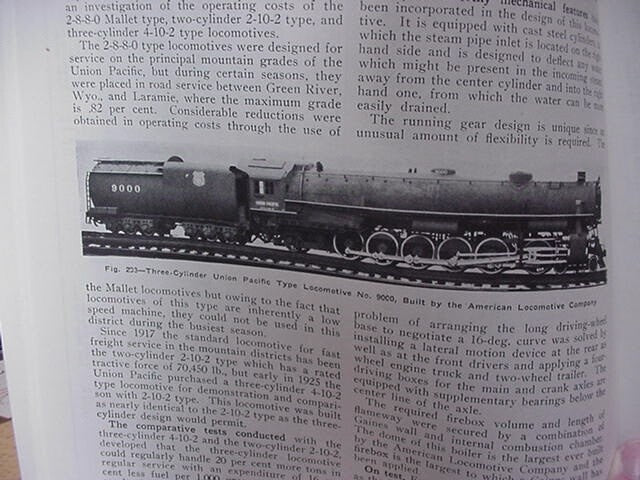

Train Shed Cyclopedia #32 1927 Locomotives, Tenders and Trucks (Part2) from the 1927 Locomotive Cyclopedia - 80 Full-Size Pages Reprinted from the original editionContents: Articles; 4-8-2 TYPE LOCOMOTIVES - The required maximum sustained horsepower - The problem of weight distribution - The boiler - The cylinders - The main driving boxes - The tender - The successful solution of this problem ** MOUNTAIN TYPE LOCOMOTIVES - The St. Louis-San Francisco Railway - The Chicago, Burlington & Quincy Railroad - Among the most notable mountain type locomotives in service - The three valve motions - The boiler - The Tender is one of the largest yet built ** ALCO THREE CYLINDER LOCOMOTIVES - There are many explanations why the power is increased - A two cylinder locomotive is limited practically to five coupled axles - The Advantages of the three cylinder - Some of the practical results of these advantages - Both power and speed are increased - The greatest economy - The comparatively low dynamic effects -Experience has demonstrated greater power, speed and economy ** THE UNION PACIFIC TYPE LOCOMOTIVE - The selection of the 4-12-2 design - The comparative test conducted - Many noteworthy mechanical features-Test Results ** COMMONWEALTH TRAILING TRUCKS AND CRADLES - The Delta type of trailer truck - The Commonwealth K.W. type - The Commonwealth locomotive cradle -- The importance of this device ** RALO-ACME FLANGED BOTTOM TANKS - The flanged bottom, characteristic of the Ralo-Acme System - Other advantages of the System - The greater strength of the Structure - The soundness of the design ** Pictures and Detailed drawings of the Following: Locomotives; 4-8-2 type - Locomotives; Three-Cylinder 2-8-2 type -- Locomotives; Three-Cylinder 4-6-2 type -- Locomotives; Three-Cylinder 4-8-2 type -- Locomotives; Three-Cylinder 4-10-2 type -- Locomotives; Three-Cylinder 4-12-2 type - Locomotives; High-Pressure, Water-Tube boiler - Locomotives; Tank and Narrow Gage -Engine Trucks; two wheel leading and Four-wheel leading - Engine Trucks; Four wheel leading; two wheel trailing -Tender Trucks; four-wheel, six wheel - Tenders; General designs -Tenders; Tanks - Tenders; water and oil tanks - Tenders; Tanks and details - Tenders; Underframes - Tenders; coal pushers -- ** RR Lines mentioned: NYC - PENNSY - CANADIAN NATIONAL - B & O -DENVER AND RIO GRANDE WESTERN - SOUTHERN PACIFIC - RICHMOND FREDRICKSBURG & PATOMIC - SEABOARD -TEXAS & PACIFIC - GREAT NORTHERN - ILLINOIS CENTRAL - L&N - LACKAWANNA - ALTON & SOUTHERN - MISSOURI PACIFIC - LOUISVILLE & NASHVILLE - WABASH - ROCK ISLAND - LEHIGH VALLEY - UNION PACIFIC - DELAWARE AND HUDSON - CENTRAL RR OF NEW JERSEY
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
