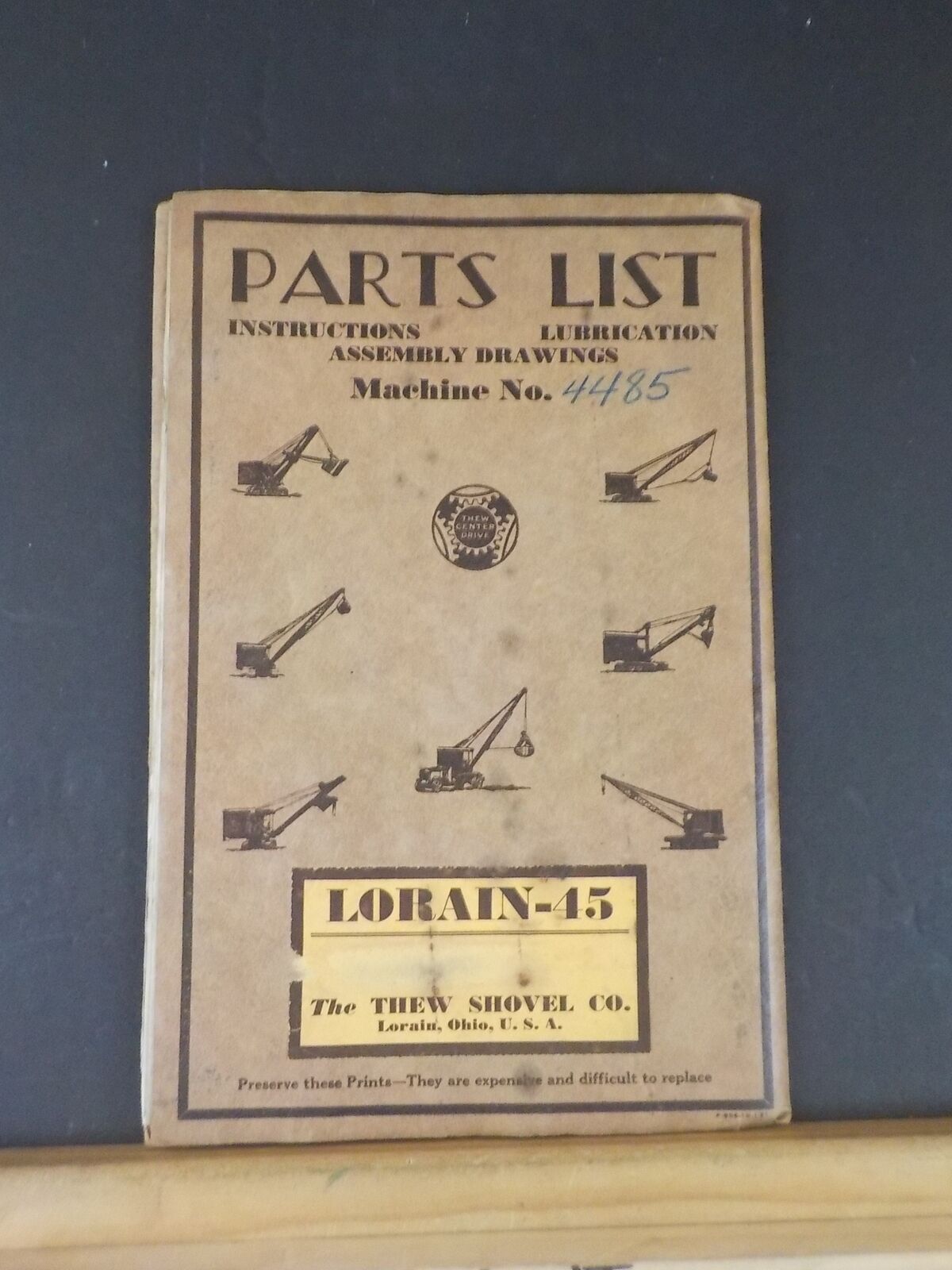

Thew Shovel Parts List Instructions Lubrication Assembly Drawings Machine #4485
Parts List Instructions, Lubrication, Assembly Drawings Machine No. 4485
Lorain-45 The Thew Shovel Co. 1928-1929?
Lot of blueprints Measures approx 11 X 14 inches

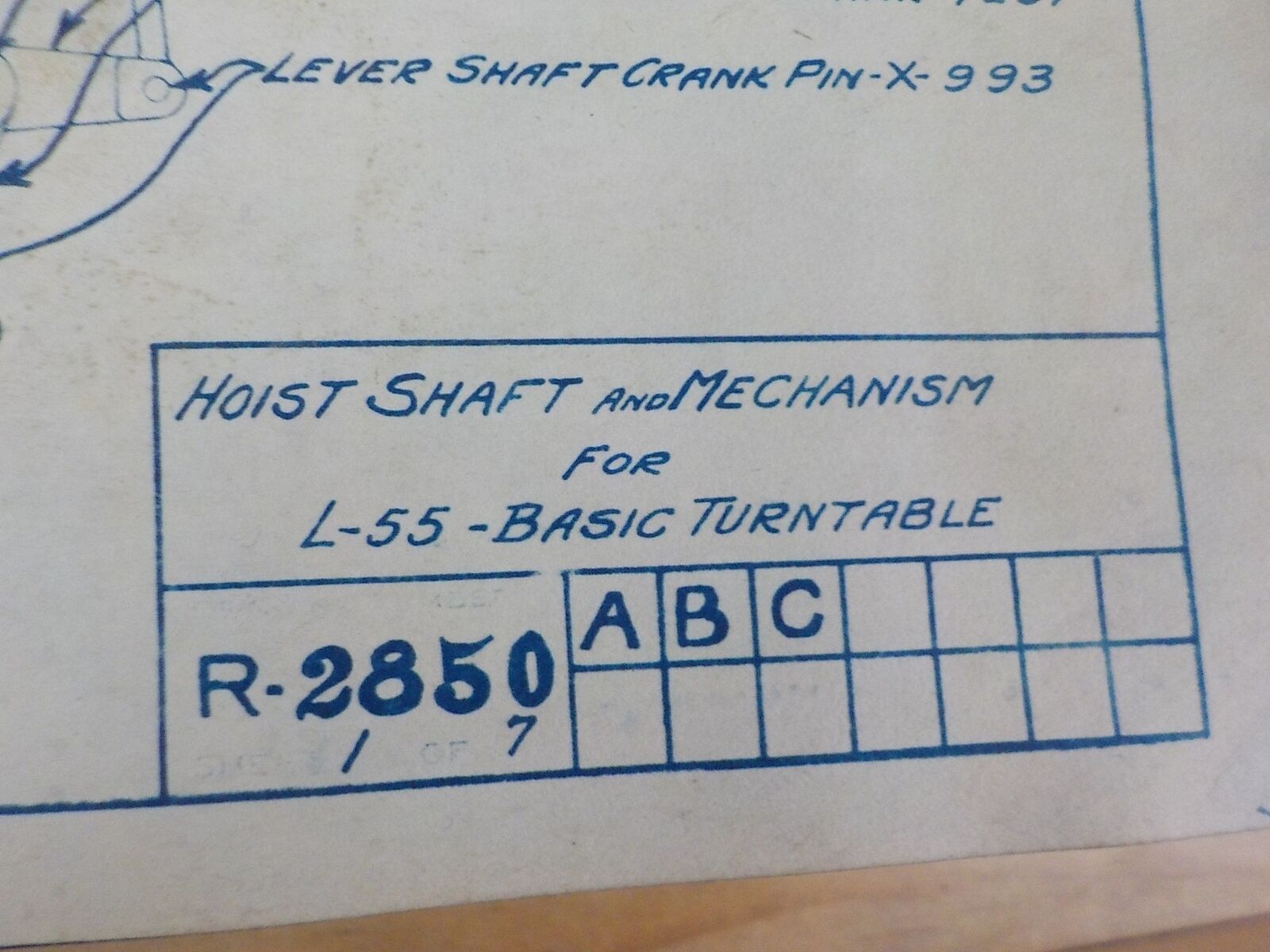

Hoist Shaft and Mechanism for L-55-Basic Turntable R-2850 C

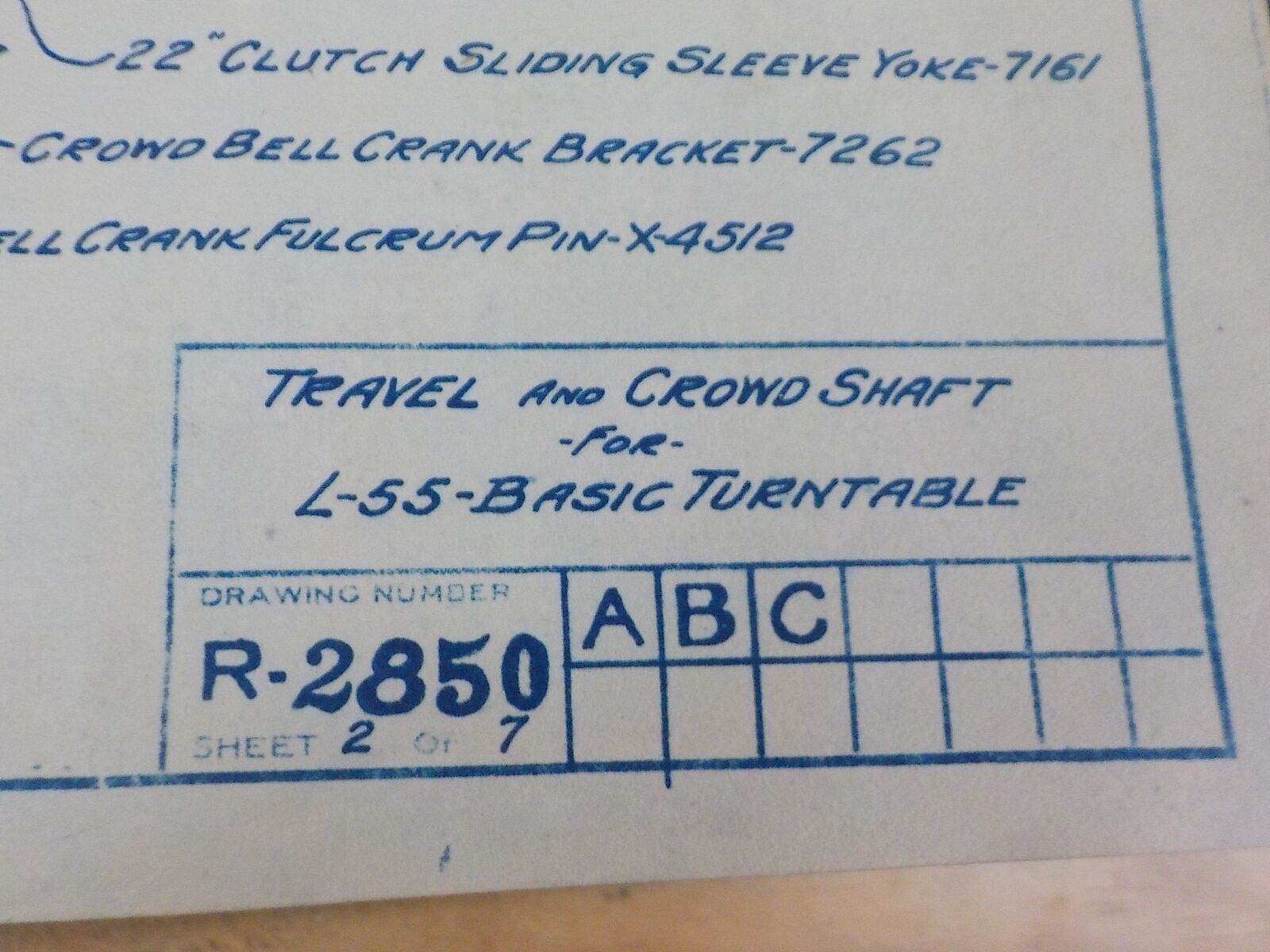

Travel and Crown Shaft for L-55-Basic Turntable R-2850 C
Swing Shaft and Mechanism for L-55-Basic Turntable R-2850 C

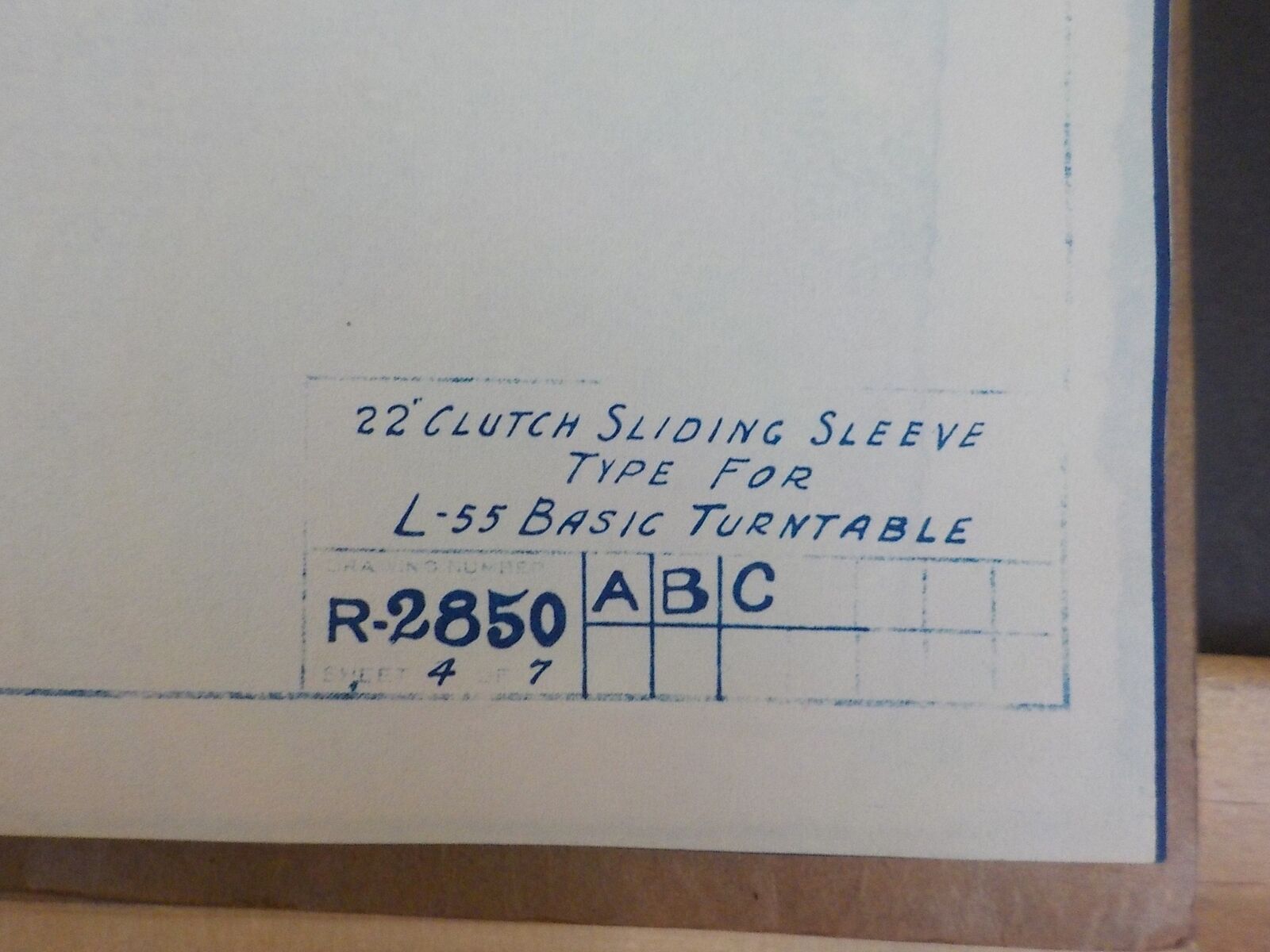

22 Clutch Sliding Sleeve Type for L-55 Basic Turntable R-2850 C
Silent Chain Material for L-55 Basic Turntable R-2850 C
Boom Hoist for L-55 Basic Turntable R-2850 C
A-Frame + Basic Turntable Bed. L-55 R-2850 C

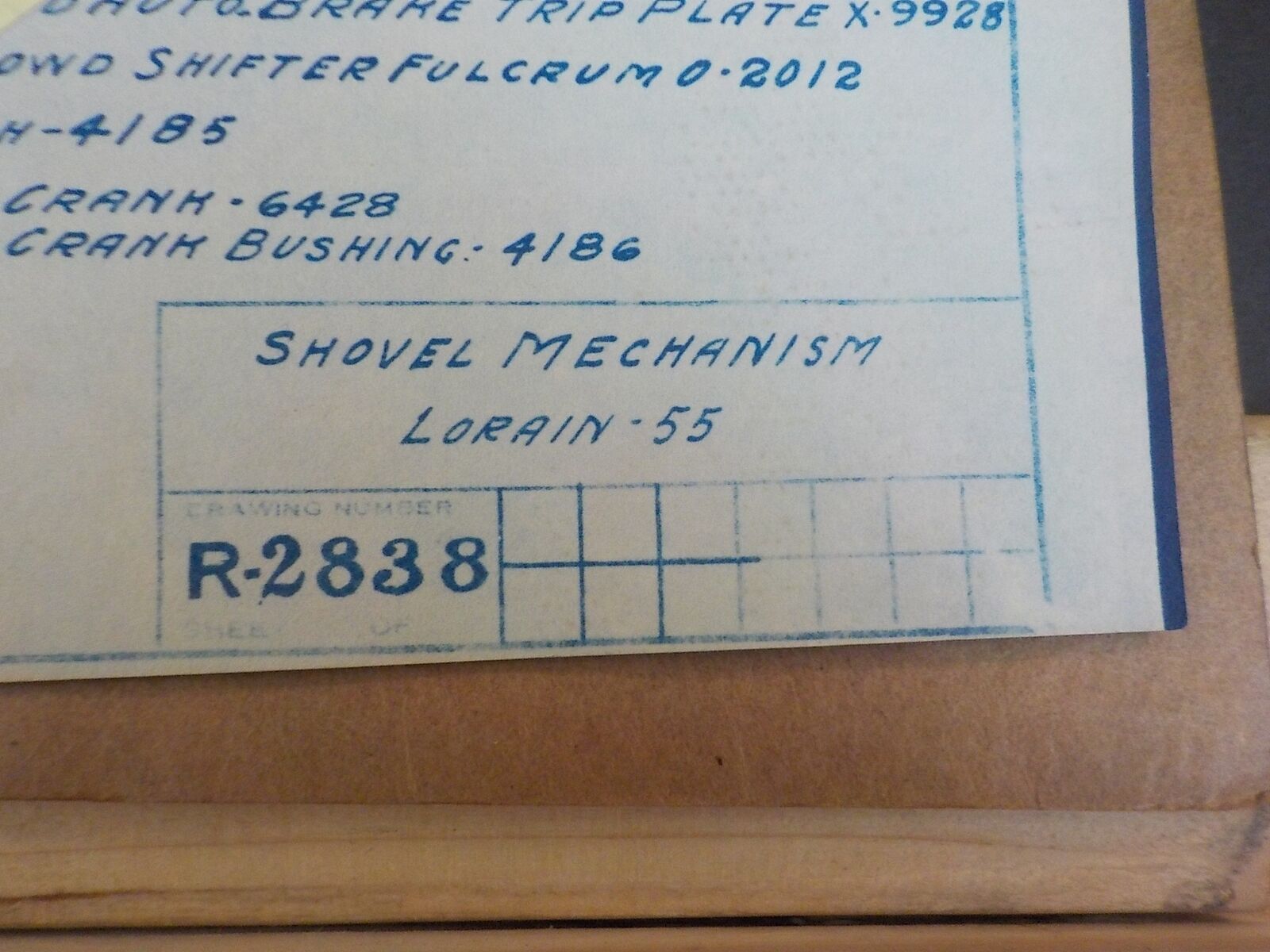

Shovel Mechanism Lorain-55 R-2838
Center Drive Truck Body Lorain-45 R-2810
Center Drive Truck Body Lorain-45 R-2810
Center Drive Truck Lorain 45 Attachment R-2811
H.L. Waukesha Engine for Lorain 45 R-2844 A
Steel Cab for Lorain-55 2758 A
General Specifications of Cables
18-Shovel Boom + Mechanism for Lorain-55 R-2822
All Steel Dipper Stick and Snatch Block Lorain-55 R-2949
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
