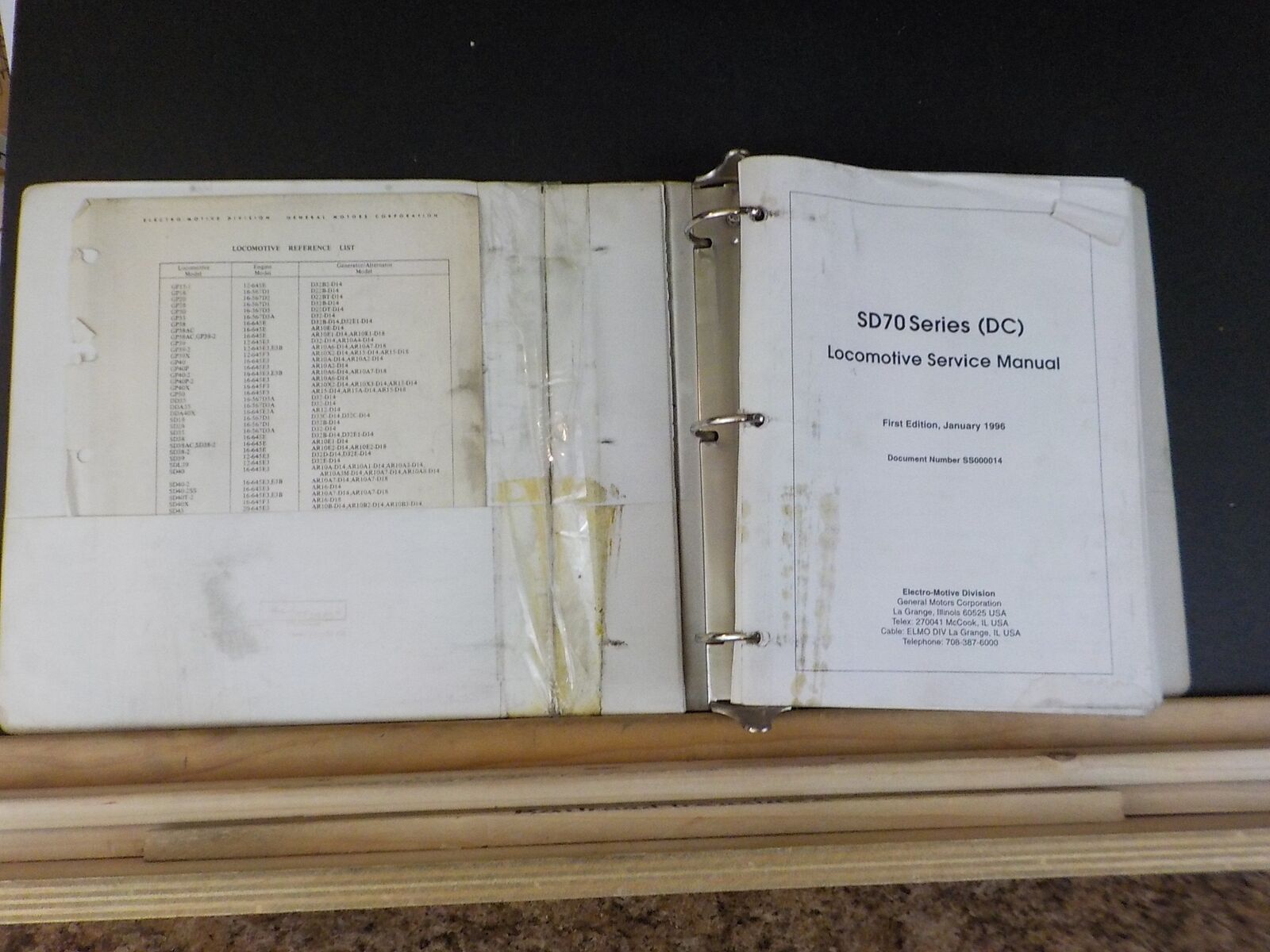

SD70 series (DC) Locomotive Service Manual EMD GE

$500.00

RailroadTreasures offers the following item:

Binder approx. 2 inches NOTEBOOK has been taped inside cover

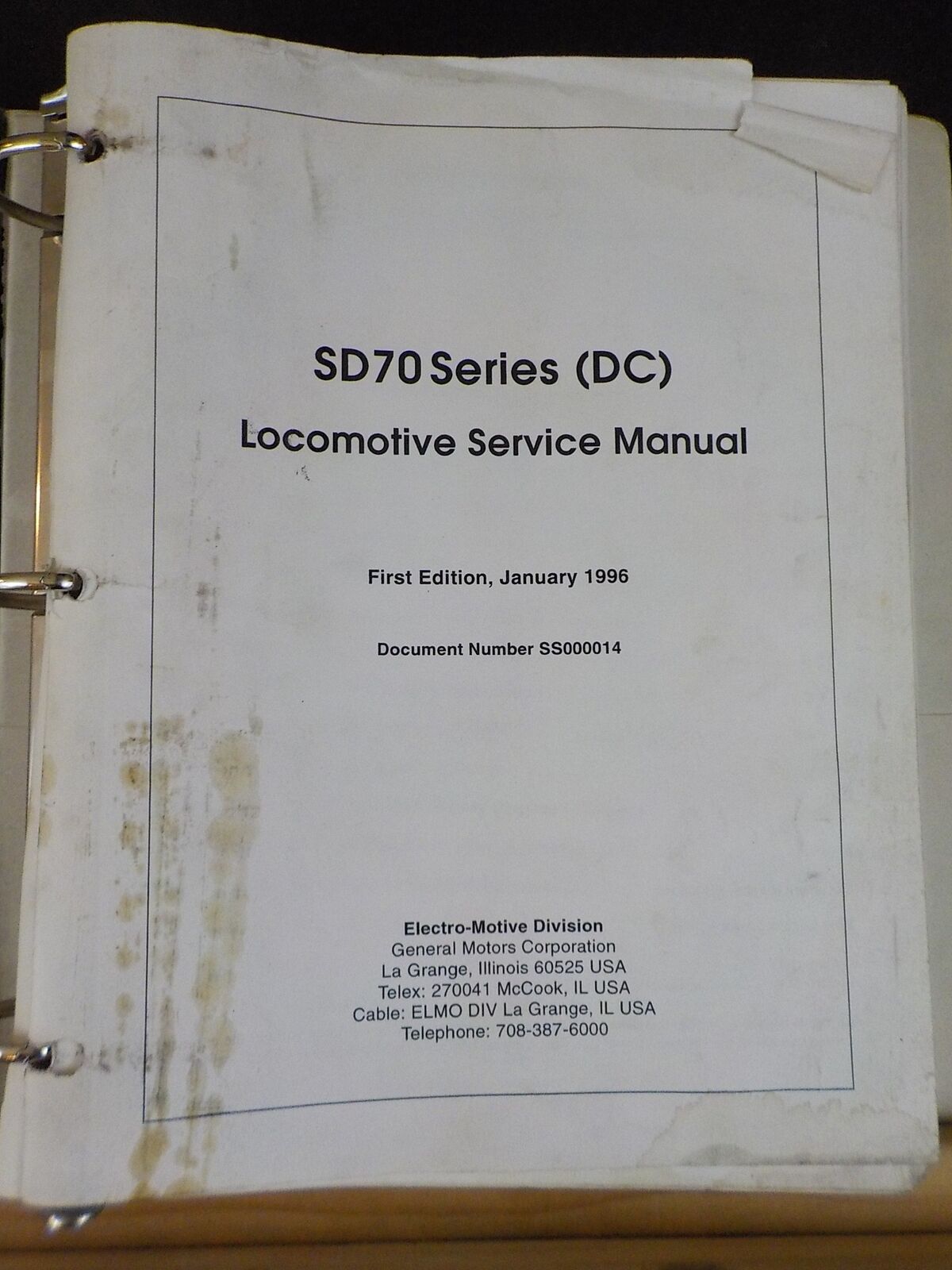

First edition January 1996

USED

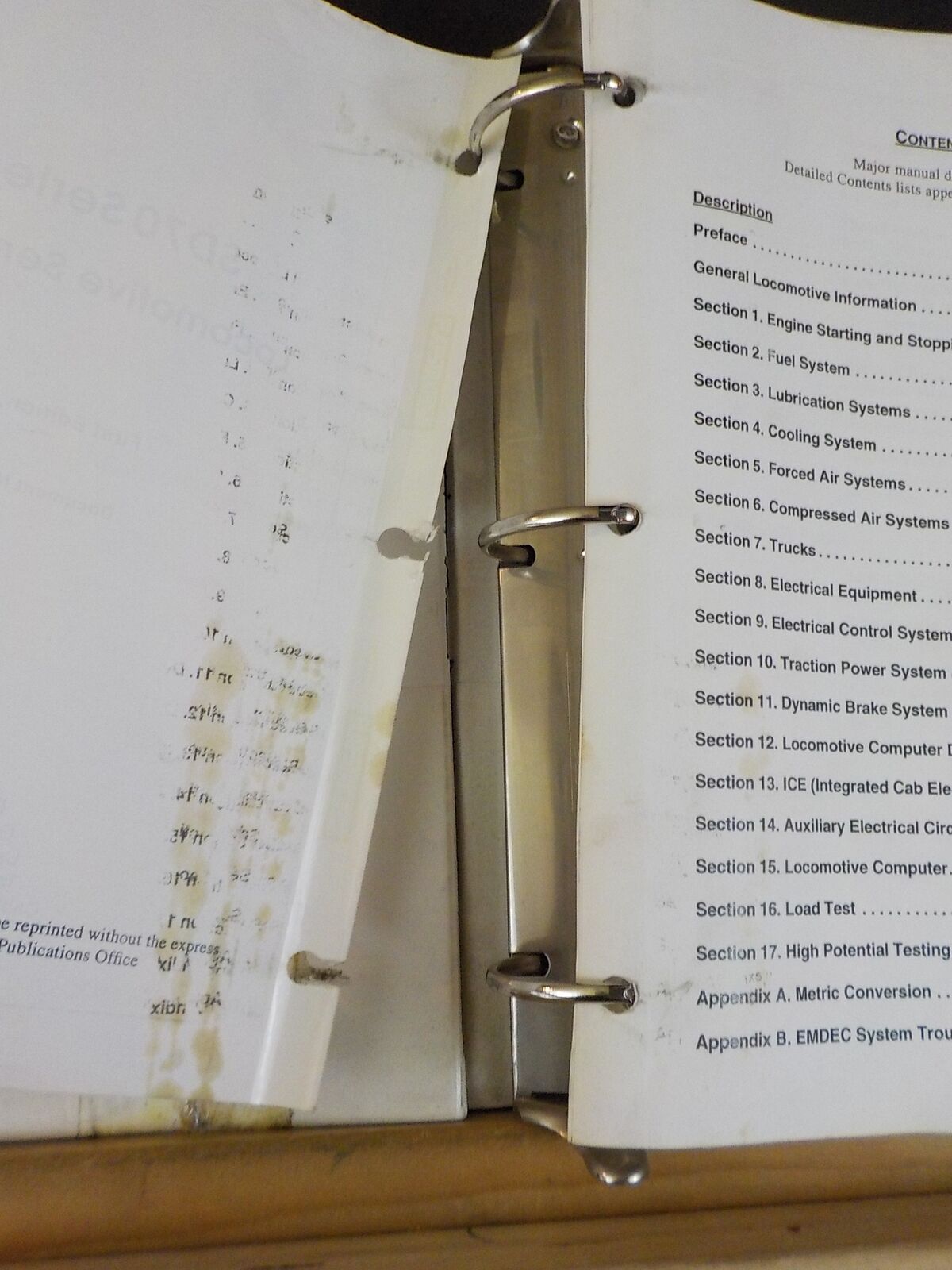

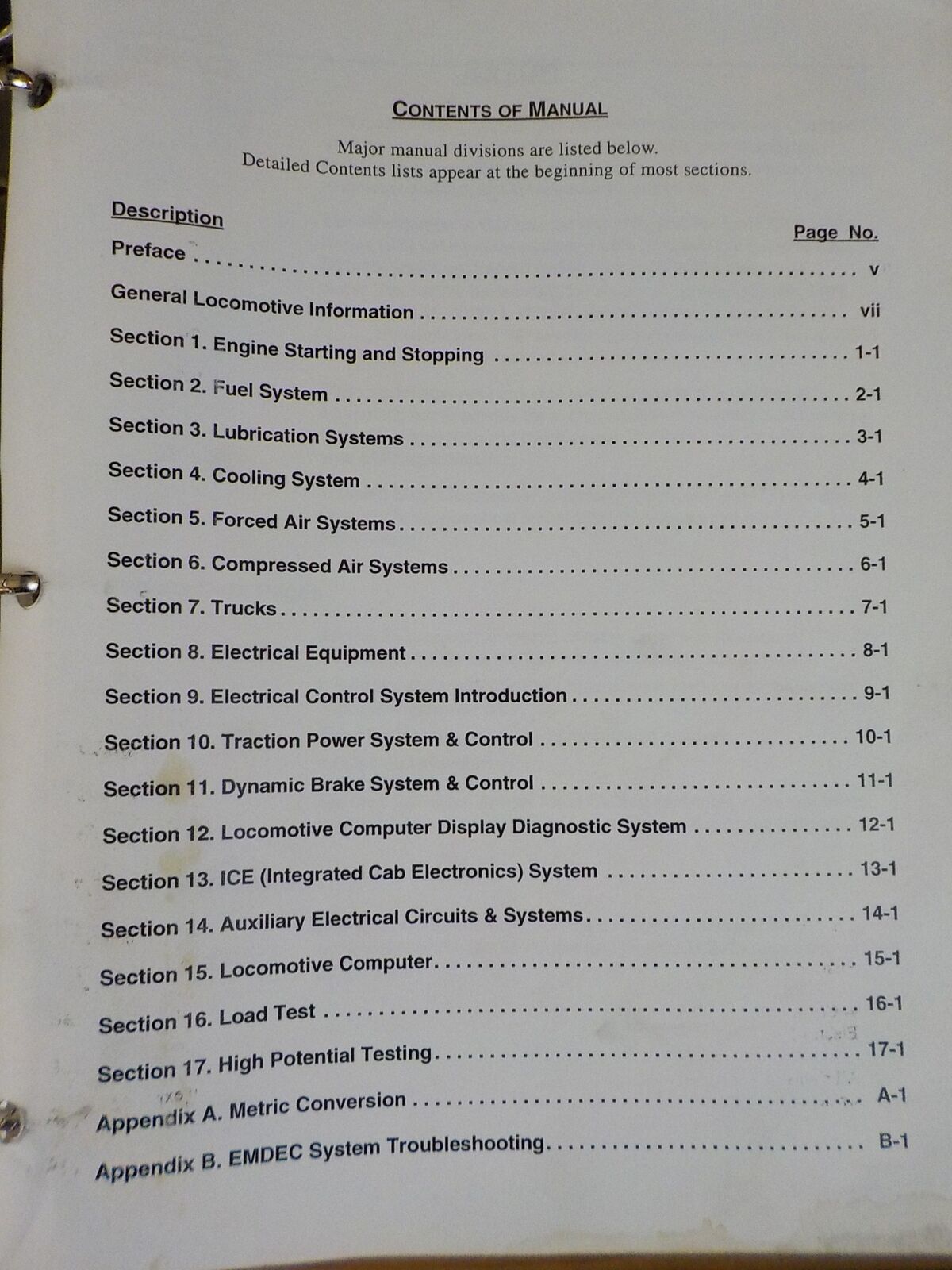

CONTENTS OF MANUAL

Major manual divisions are listed below.

Detailed Contents lists appear at the beginning of most sections.

DescriptionPage No.

Preface

General Locomotive Information vii

Section 1. Engine Starting and Stopping 1-1

Section 2. Fuel System2-1

Section 3. Lubrication Systems3-1

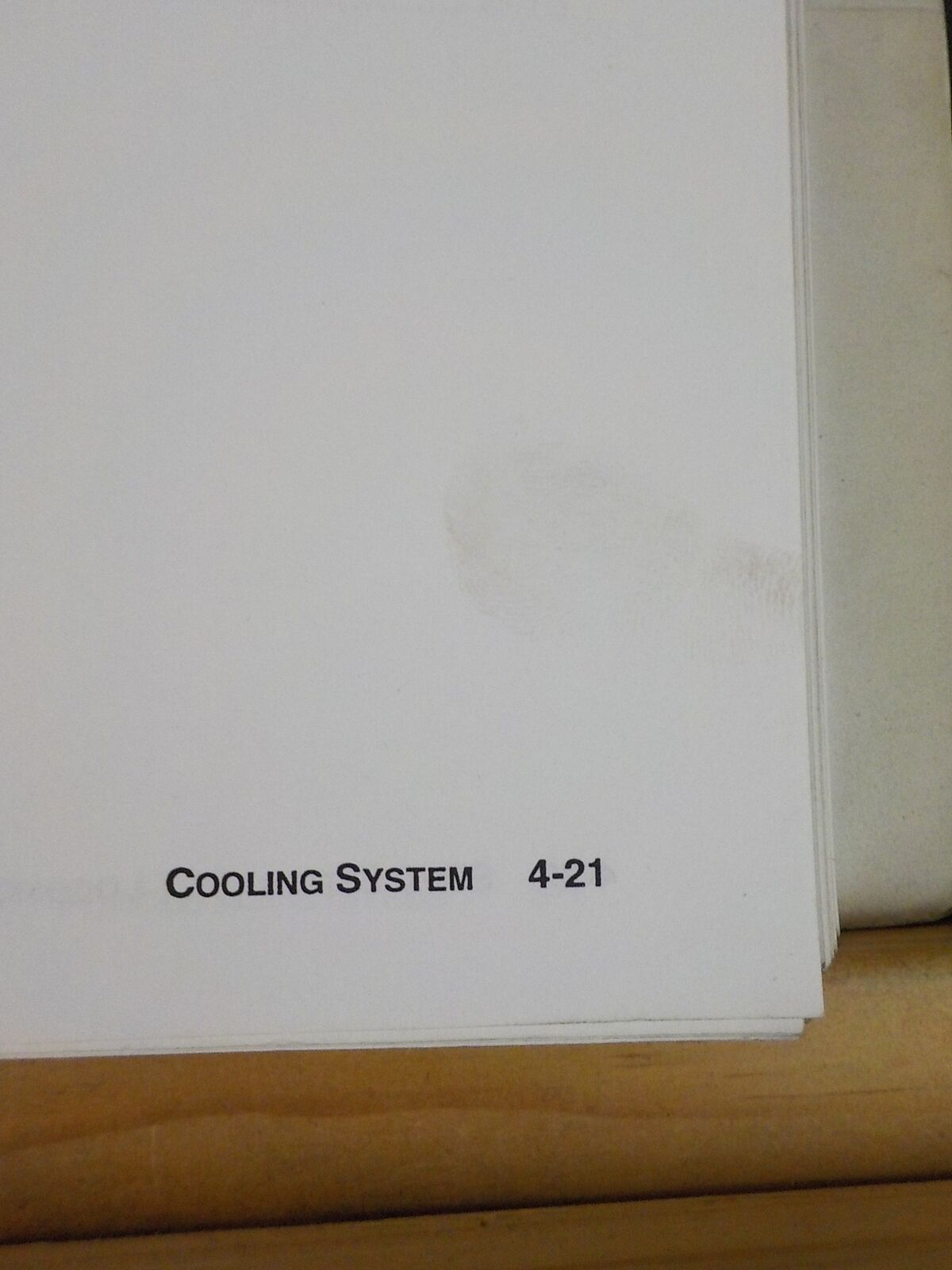

Section 4. Cooling System4-1

Section 5. Forced Air Systems5-1

Section 6. Compressed Air Systems6-1

Section 7. Trucks7-1

Section 8. Electrical Equipment 8-1

Section 9. Electrical Control System Introduction 9-1

Section 10. Traction Power System & Control 10-1

Section 11. Dynamic Brake System & Control 11-1

Section 12. Locomotive Computer Display Diagnostic System 12-1

Section 13. ICE (Integrated Cab Electronics) System 13-1

Section 14. Auxiliary Electrical Circuits & Systems 14-1

Section 15. Locomotive Computer 15-1

Section 16. Load Test 16-1

Section 17. High Potential Testing 17-1

Appendix A. Metric Conversion A-1

Appendix B. EMDEC System Troubleshooting B-1

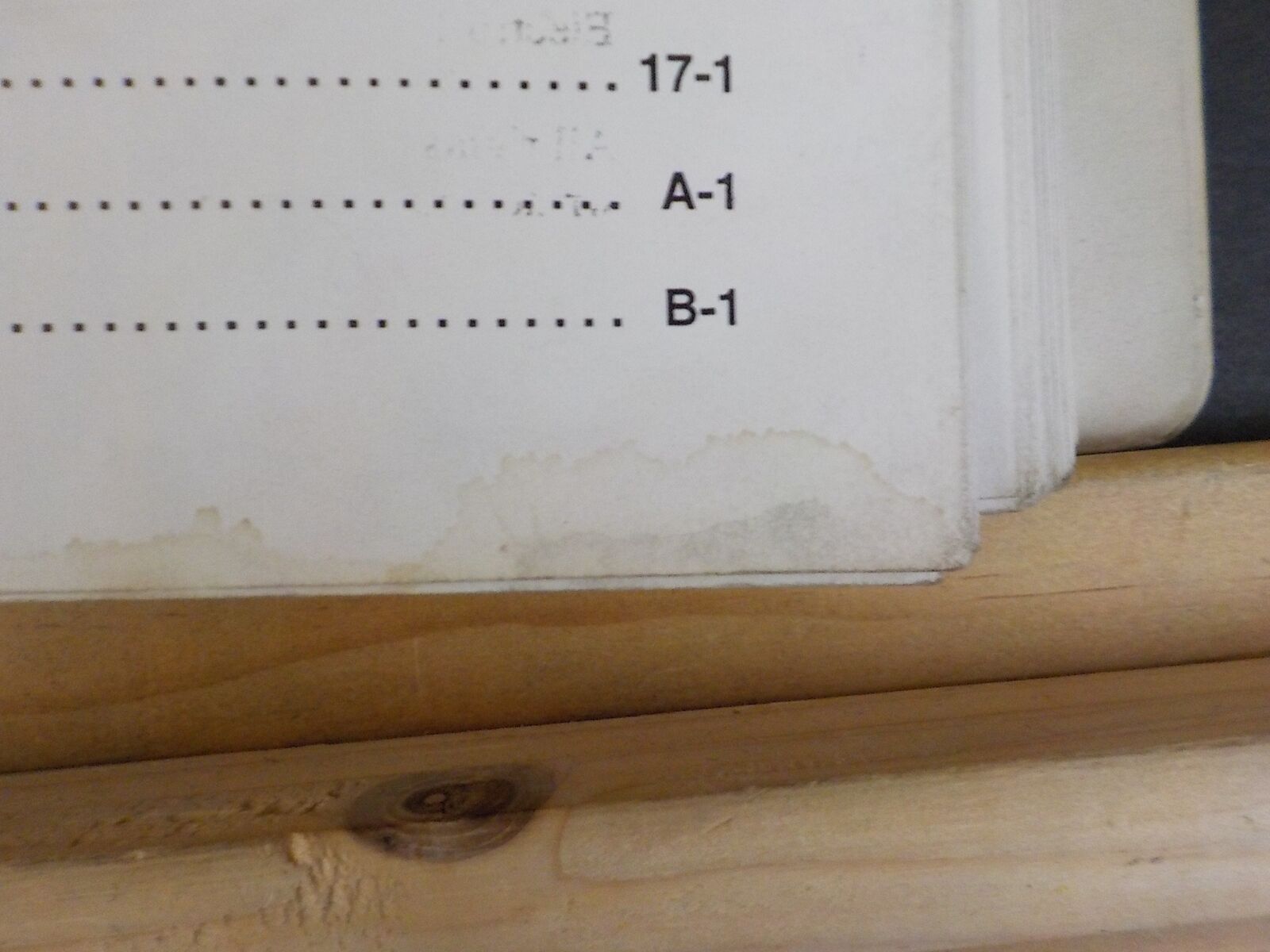

All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
