Rolling Stock Plan Book of HO and O Gauge Car Plans Soft Cover
Rolling Stock Plan Book of HO and O gauge Car Plans soft cover
Harold H Carstens and Railroad Model Craftsman
Soft Cover
64 Pages

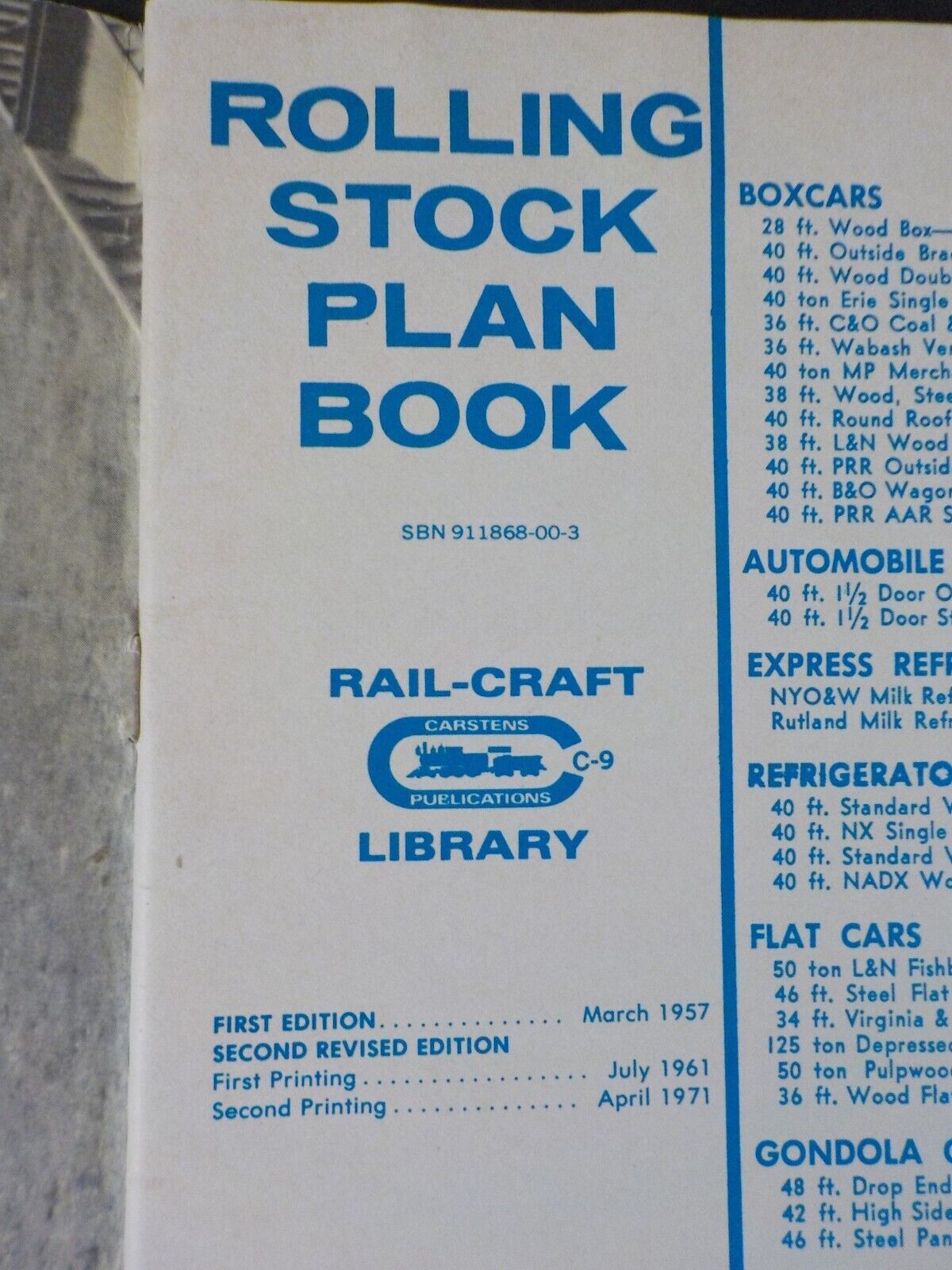

Copyright 1961, 1957 Second edition 1961 SECOND PRINTING 1971

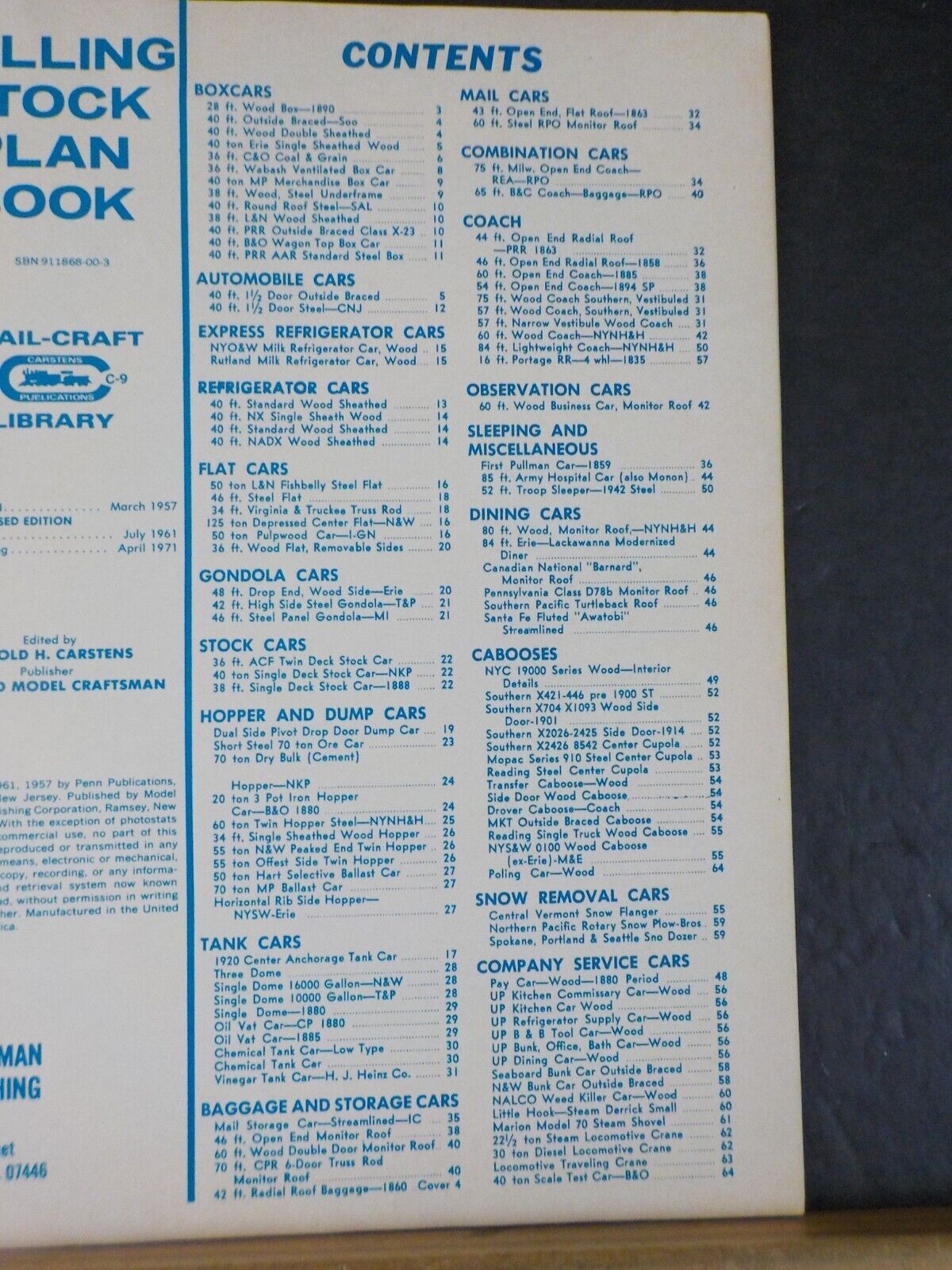

Contents
BOXCARS
28 ft. Wood Box-1890 3
40 ft. Outside Braced—Soo 4
40 ft. Wood Double Sheathed 4
40 ton Erie Single Sheathed Wood 5
36 ft. C&O Coal & Grain 6
36 ft. Wabash Ventilated Box Car 8
40 +on MP Merchandise Box Car 9
38 ft. Wood, Steel Underframe 9
40 ft. Round Roof Steel—SAL 10
38 ft. L&N Wood Sheathed 10
40 ft. PRR Outside Braced Class X-23 10
40 ft. B&O Wagon Top Box Car 11
40 ft. PRR AAR Standard Steel Box II
AUTOMOBILE CARS
40 ft. 11/2 Door Outside Braced 5
40 ft. 11/2 Door Steel—CNJ 12
EXPRESS REFRIGERATOR CARS
NYO&W Milk Refrigerator Car, Wood 15
Rutland Milk Refrigerator Car, Wood 15
REFRIGERATOR CARS
40 ft. Standard Wood Sheathed 13
40 ft. NX Single Sheath Wood 14
40 ft. Standard Wood Sheathed 14
40 ft. NADX Wood Sheathed 14
FLAT CARS
50 ton L&N Fishbelly Steel Flat 16
46 ft. Steel Flat 18
34 ft. Virginia & Truckee Truss Rod 18
125 ton Depressed Center Flat—N&W 16
50 ton Pulpwood Car—I-GN 16
36 ft. Wood Flat, Removable Sides 20
GONDOLA CARS
48 ft. Drop End, Wood Side—Erie 20
42 ft. High Side Steel Gondola—T&P 21
46 ft. Steel Panel Gondola—MI 21
STOCK CARS
36 ft. ACF Twin Deck Stock Car 22
40 ton Single Deck Stock Car—NKP 22
38 ft. Single Deck Stock Car—I888 22
HOPPER AND DUMP CARS
Dual Side Pivot Drop Door Dump Car 19
Short Steel 70 ton Ore Car 23
70 +on Dry Bulk (Cement)
Hopper—NKP 24
20 ton 3 Po+ Iron Hopper
Car—B&O 1880 24
60 ton Twin Hopper Steel—NYNH&H 25
34 ft. Single Sheathed Wood Hopper 26
55 ton N&W Peaked End Twin Hopper 26
55 ton Offest Side Twin Hopper 26
50 ton Hart Selective Ballast Car 27
70 ton MP Ballast Car 27
Horizontal Rib Side Hopper—
NYSW-Erie 27
TANK CARS
1920 Center Anchorage Tank Car 17
Three Dome 28
Single Dome 16000 Gallon—N&W 28
Single Dome 10000 Gallon—T&P 28
Single Dome-1880 29
Oil Vat Car—CP 1880 29
Oil Vat Car—l885 29
Chemical Tank Car—Low Type 30
Chemical Tank Car 30
Vinegar Tank Car—H. J. Heinz Co. 31
BAGGAGE AND STORAGE CARS
Mail Storage Car—Streamlined—IC 35
46 ft. Open End Monitor Roof 38
60 ft. Wood Double Door Monitor Roof 40 70 ft. CPR 6-Door Truss Rod
Monitor Roof 40
42 ft. Radial Roof Baggage-1860 Cover 4
MAIL CARS
43 ft. Open End, Flat Roof—I863 32
60 ft. Steel RPO Monitor Roof 34
COMBINATION CARS
75 ft. Milw. Open End Coach—
REA—RPO 34
65 ft. B&C Coach—Baggage—RPO 40
COACH
44 ft. Open End Radial Roof
—PRR 1863 32
46 ft. Open End Radial Roof-1858 36
60 ft. Open End Coach-1885 38
54 ft. Open End Coach-1894 SP 38
75 ft. Wood Coach Southern, Vestibuled 31 57 ft. Wood Coach, Southern, Vestibuled 31
57 ft. Narrow Vestibule Wood Coach 31
60 ft. Wood Coach—NYNH&H 42
84 ft. Lightweight Coach—NYNH&H 50
16 ft. Portage RR-4 whl-1835 57
OBSERVATION CARS
60 ft. Wood Business Car, Moni+or Roof 42
SLEEPING AND MISCELLANEOUS
First Pullman Car-1859 36
85 ft. Army Hospital Car (also Monon) 44
52 ft. Troop Sleeper—l942 Steel 50
DINING CARS
80 ft. Wood, Monitor Roof,—NYNH&H 44 84 ft. Erie—Lackawanna Modernized
Diner 44
Canadian National "Barnard",
Monitor Roof 46
Pennsylvania Class D78b Monitor Roof 46
Southern Pacific Turtleback Roof 46
Santa Fe Fluted "Awatobi"
Streamlined 46
CABOOSES
NYC 19000 Series Wood—Interior
Details 49
Southern X421-446 pre 1900 ST 52
Southern X704 X1093 Wood Side
Door-190I 52
Southern X2026-2425 Side Door-I914 52
Southern X2426 8542 Center Cupola 52
Mopac Series 910 Steel Center Cupola 53
Reading Steel Center Cupola 53
Transfer Caboose—Wood 54
Side Door Wood Caboose . ,,......54
Drover Caboose—Coach 54
MKT Outside Braced Caboose 54
Reading Single Truck Wood Caboose 55
NYS&W 0100 Wood Caboose
(ex-Erie)-M&E 55
Poling Car—Wood 64
SNOW REMOVAL CARS
Central Vermont Snow Flanger 55
Northern Pacific Rotary Snow Plow-Bros 59 Spokane, Portland & Seattle Sno Dozer . 59
COMPANY SERVICE CARS
Pay Car—Wood-1880 Period 48
UP Kitchen Commissary Car—Wood 56
UP Kitchen Car Wood 56
UP Refrigerator Supply Car—Wood 56
UP B & B Tool Car—Wood 56
UP Bunk, Office, Bath Car—Wood 56
UP Dining Car—Wood 56
Seaboard Bunk Car Outside Braced 58
N&W Bunk Car Outside Braced 58
NALCO Weed Killer Car—Wood 60
Little Hook—Steam Derrick Small 60
Marion Model 70 Steam Shovel 61
221/2 ton Steam Locomotive Crane 62
30 ton Diesel Locomotive Crane 62
Locomotive Traveling Crane 63
40 ton Scale Test Car—B&O 64
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
