Railway Prototype Cyclopedia Volume 31-32
Railway Prototype Cyclopedia Vol 31-32 RP CYC Data Drawings Photos soft cover
Railway Prototype Cyclopedia 31-32
Soft Cover
265 Pages
Copyright 2016

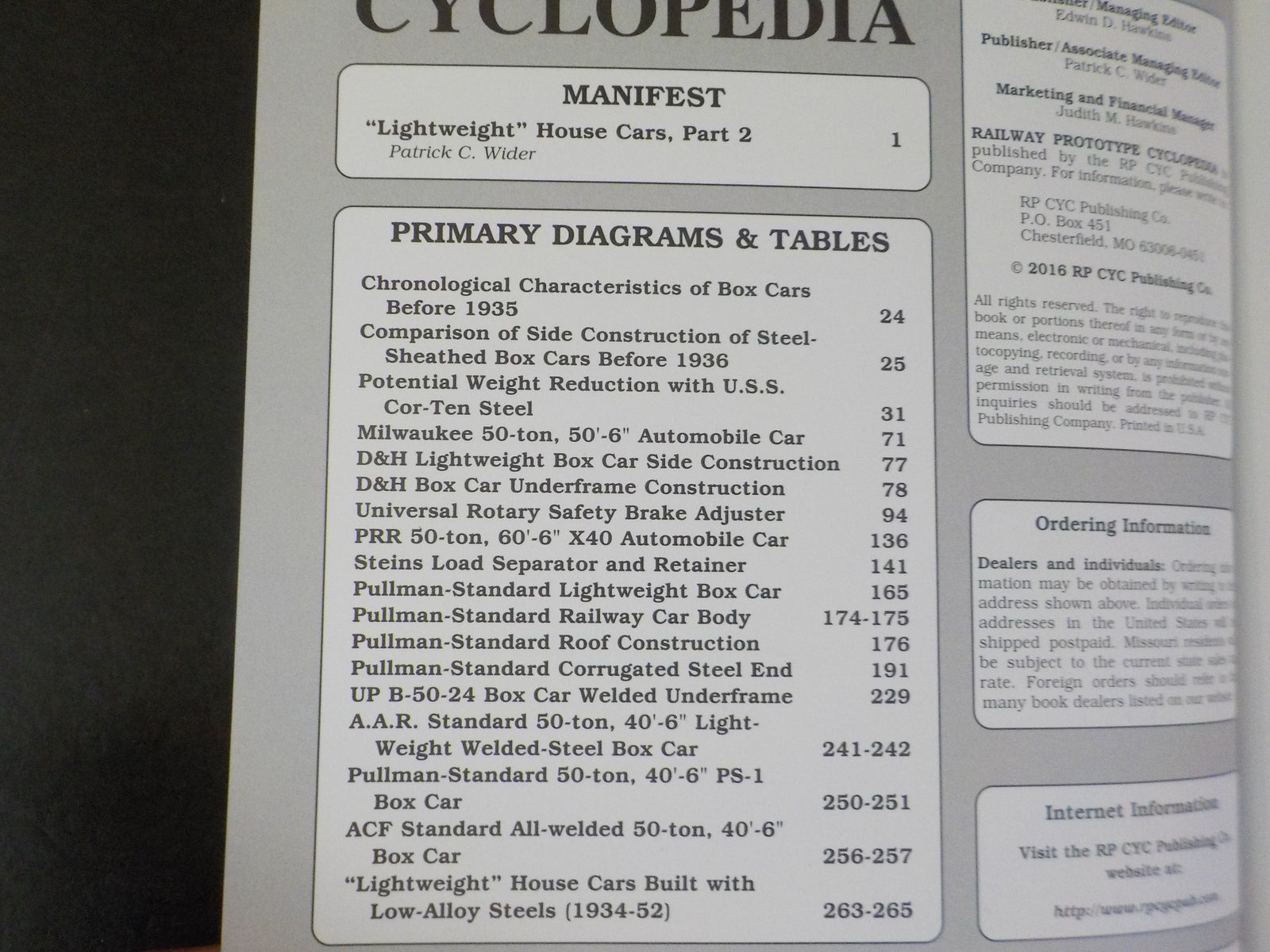

Contents
MANIFEST
"Lightweight" House Cars, Part 21
Patrick C. Wider
PRIMARY DIAGRAMS & TABLES
Chronological Characteristics of Box Cars
Before 193524
Comparison of Side Construction of Steel-
Sheathed Box Cars Before 193625
Potential Weight Reduction with U.S.S.
Cor-Ten Steel31
Milwaukee 50-ton, 50'-6" Automobile Car71
D&H Lightweight Box Car Side Construction77
D&H Box Car Underframe Construction78
Universal Rotary Safety Brake Adjuster94
PRR 50-ton, 60'-6" X40 Automobile Car136
Steins Load Separator and Retainer141
Pullman-Standard Lightweight Box Car165
Pullman-Standard Railway Car Body174-175
Pullman-Standard Roof Construction176
Pullman-Standard Corrugated Steel End191
UP B-50-24 Box Car Welded Underframe229
A.A.R. Standard 50-ton, 40'-6" Light-
weight Welded-Steel Box Car241-242
Pullman-Standard 50-ton, 40'-6" PS-1
Box Car250-251
ACF Standard All-welded 50-ton, 40'-6"
Box Car256-257
"Lightweight" House Cars Built with
Low-Alloy Steels (1934-52)263-265
LIGHTWEIGHT HOUSE CARS, PART 2
- NEW HIGH-STRENGTH STEEL ALLOYS ALLOW REDUCTIONS IN TARE WEIGHT -
DATA -DRAWINGS - PHOTOS
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
