Railway Building by Cecil J Allen Hard Cover
Railway Building by Cecil J Allen with 136 illustrations

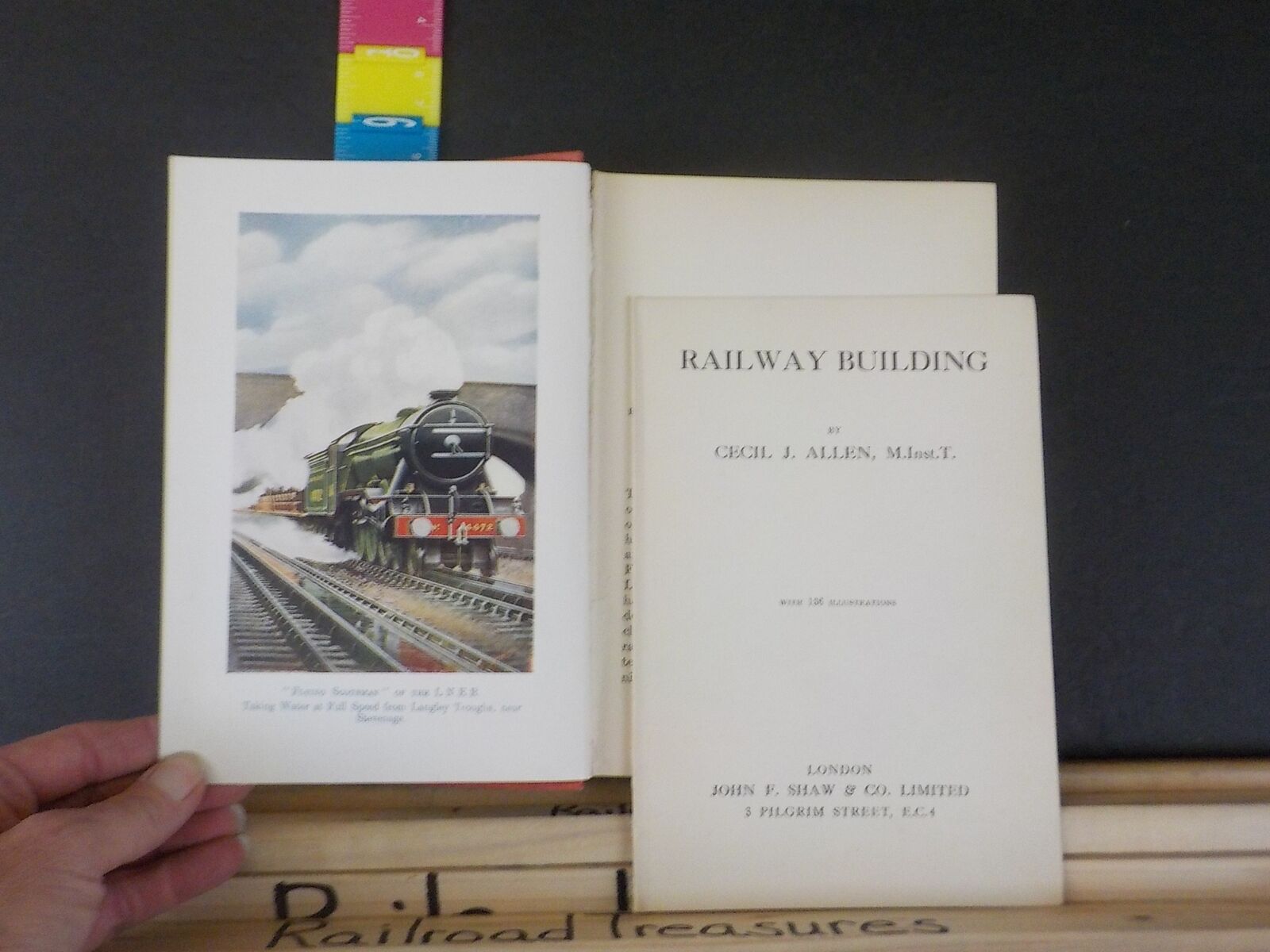

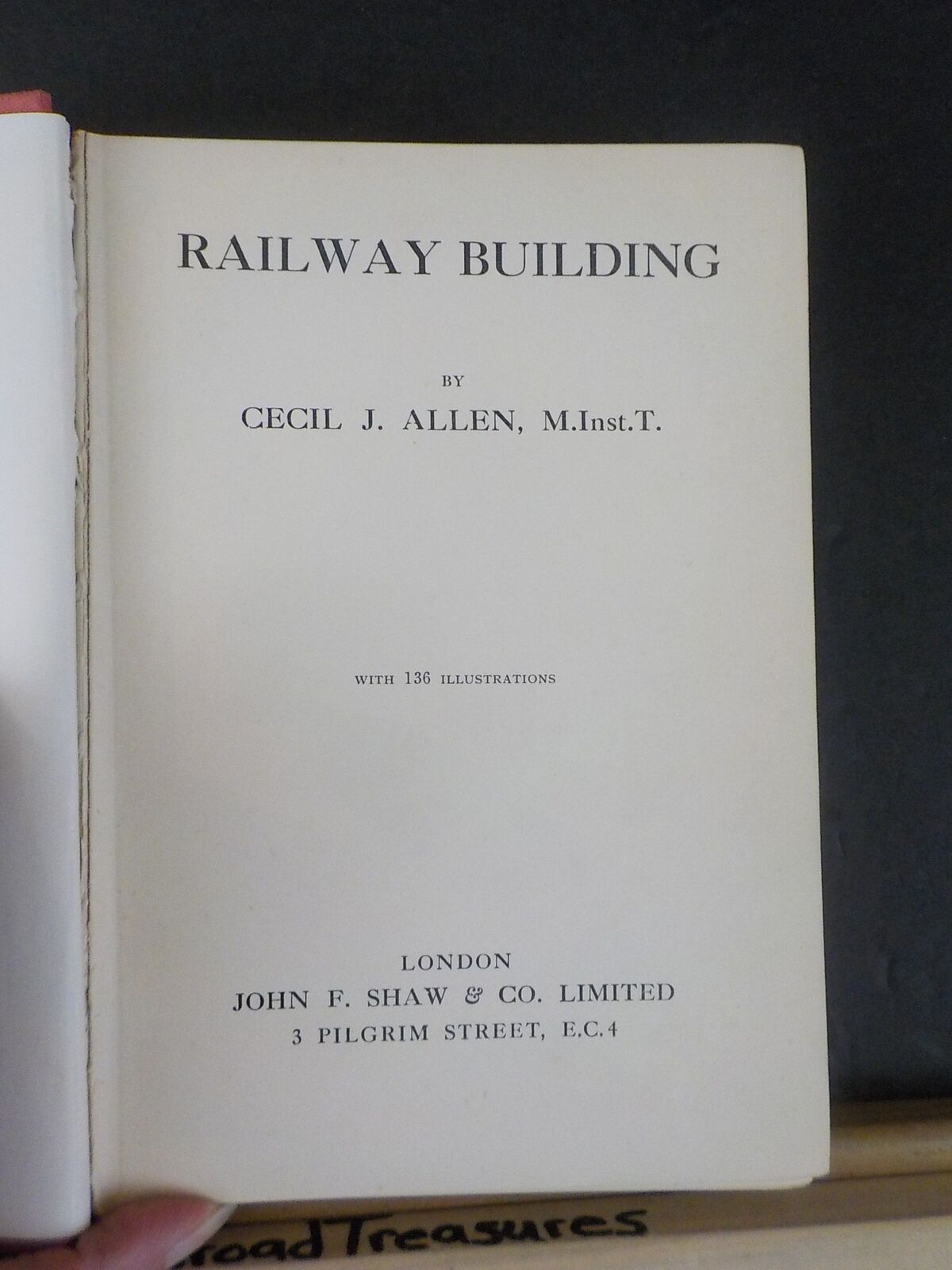

Hard Cover TITLE PAGE AND TABLE OF CONTENTS LOOSE
192 pages
Copyright 1926

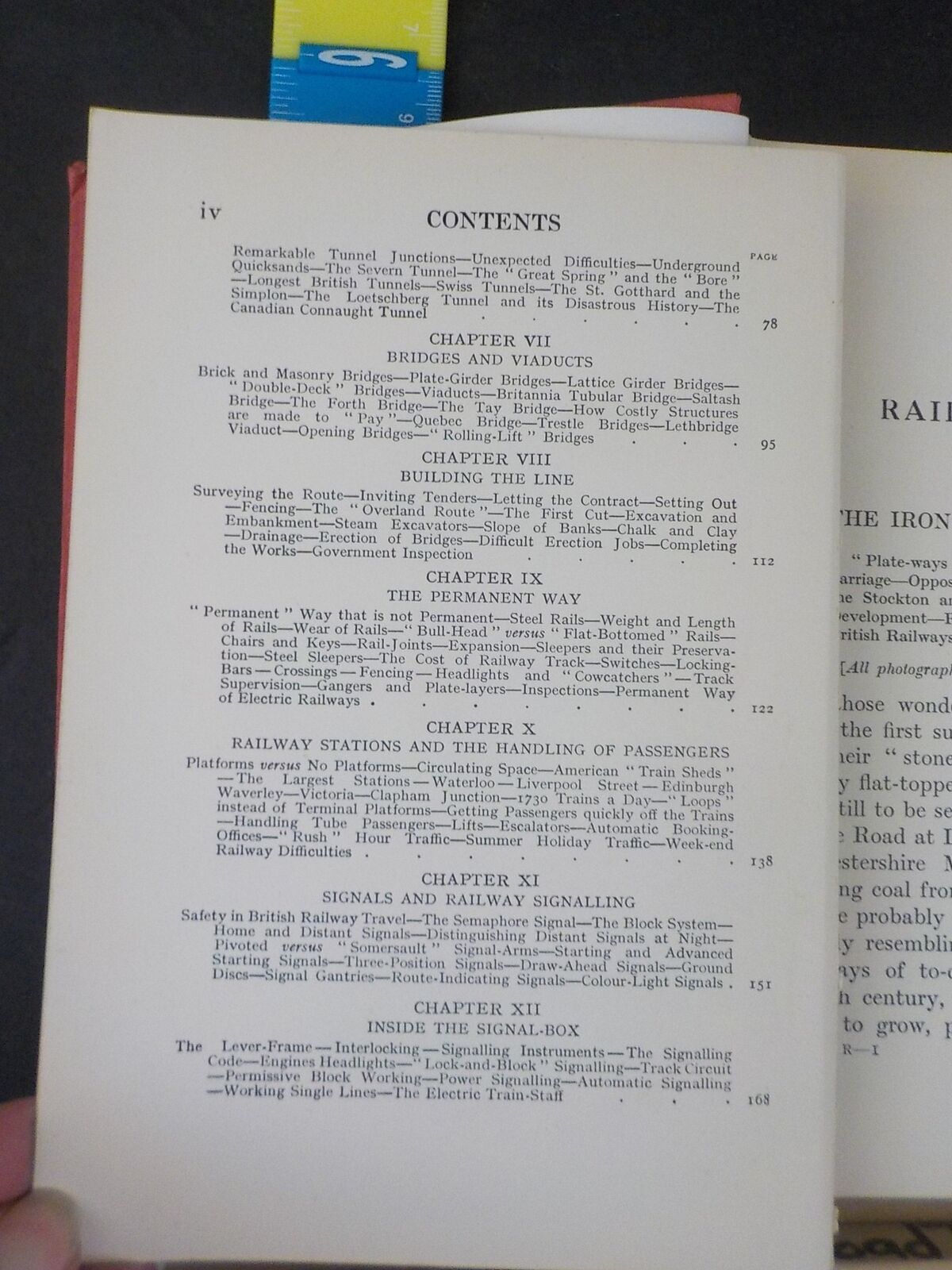

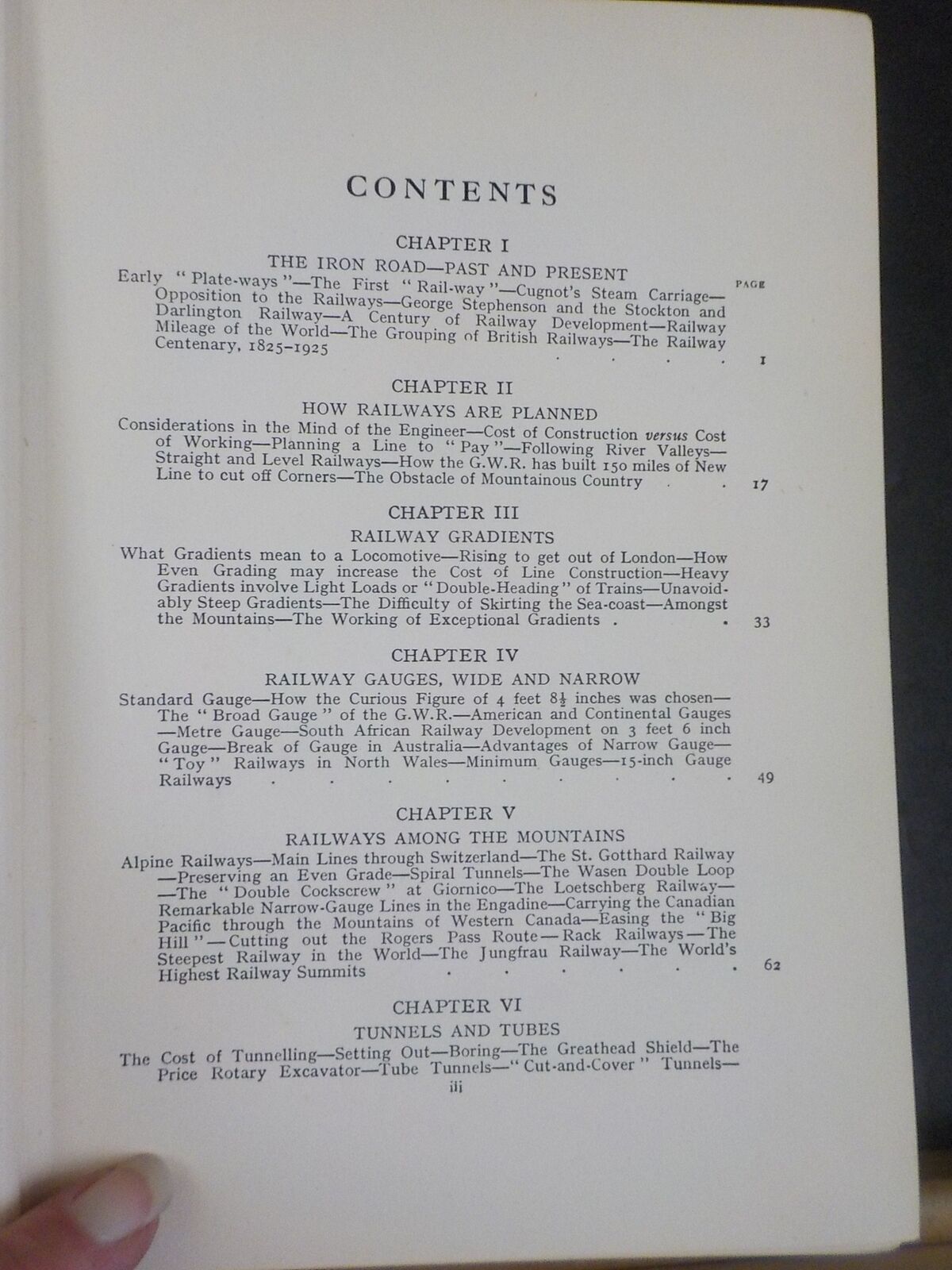

CONTENTS
CHAPTER I THE IRON ROAD-PAST AND PRESENT
Early " Plate-ways "-The First " Rail-way "-Cugnot's Steam Carriage-Opposition to the Railways-George Stephenson and the Stockton and Darlington Railway-A Century of Railway Development-Railway Mileage of the World-The Grouping of British Railways-The Railway Centenary, 1825-1925 1
CHAPTER II HOW RAILWAYS ARE PLANNED
Considerations in the Mind of the Engineer-Cost of Construction versus Cost of Working-Planning a Line to " Pay "-Following River Valleys-Straight and Level Railways-How the G.W.R. has built 150 miles of New Line to cut off Corners-The Obstacle of Mountainous Country 17
CHAPTER III RAILWAY GRADIENTS
What Gradients mean to a Locomotive-Rising to get out of London-How Even Grading may increase the Cost of Line Construction-Heavy Gradients involve Light Loads or "Double-Heading" of Trains-Unavoidably Steep Gradients-The Difficulty of Skirting the Sea-coast-Amongst the Mountains-The Working of Exceptional Gradients 33
CHAPTER IV RAILWAY GAUGES, WIDE AND NARROW
Standard Gauge-How the Curious Figure of 4 feet 81 inches was chosen-The "Broad Gauge" of the G.W.R.-American and Continental Gauges -Metre Gauge-South African Railway Development on 3 feet 6 inch Gauge-Break of Gauge in Australia-Advantages of Narrow Gauge-"Toy" Railways in North Wales-Minimum Gauges-15-inch Gauge Railways 49
CHAPTER V RAILWAYS AMONG THE MOUNTAINS
Alpine Railways-Main Lines through Switzerland-The St. Gotthard Railway-Preserving an Even Grade-Spiral Tunnels-The Wasen Double Loop Double Cockscrew " at Giornico-The Loetschberg Railway-Remarkable Narrow-Gauge Lines in the Engadine-Carrying the Canadian Pacific through the Mountains of Western Canada-Easing the " Big Hill"-Cutting out the Rogers Pass Route-Rack Railways-The Steepest Railway in the World-The Jungfrau Railway-The World's Highest Railway Summits . 62
CHAPTER VI TUNNELS AND TUBES
The Cost of Tunnelling-Setting Out-Boring-The Greathead Shield-The Price Rotary Excavator-Tube Tunnels-" Cut-and-Cover " Tunnels-Remarkable Tunnel Junctions-Unexpected Difficulties-Underground Quicksands-The Severn Tunnel-The " Great Spring " and the " Bore "-Longest British Tunnels-Swiss Tunnels-The St. Gotthard and the Simplon-The Loetschberg Tunnel and its Disastrous History-The Canadian Connaught Tunnel 78
CHAPTER VII BRIDGES AND VIADUCTS
Brick and Masonry Bridges-Plate-Girder Bridges-Lattice Girder Bridges" Double-Deck " Bridges-Viaducts-Britannia Tubular Bridge-Saltash Bridge-The Forth Bridge-The Tay Bridge-How Costly Structures are made to " Pay "-Quebec Bridge-Trestle Bridges-Lethbridge Viaduct-Opening Bridges-" Rolling-Lift " Bridges 95
CHAPTER VIII BUILDING THE LINE
Surveying the Route-Inviting Tenders-Letting the Contract-Setting Out -Fencing-The " Overland Route "-The First Cut-Excavation and Embankment-Steam Excavators-Slope of Banks-Chalk and Clay -Drainage-Erection of Bridges-Difficult Erection Jobs-Completing the Works-Government Inspection 112
CHAPTER IX THE PERMANENT WAY
" Permanent " Way that is not Permanent-Steel Rails-Weight and Length of Rails-Wear of Rails-" Bull-Head " versus " Flat-Bottomed" Rails-Chairs and Keys-Rail-Joints-Expansion-Sleepers and their Preservation-Steel Sleepers-The Cost of Railway Track-Switches-LockingBars-Crossings-Fencing-Headlights and " Cowcatchers "-Track Supervision-Gangers and Plate-layers-Inspections-Permanent Way of Electric Railways . - . 122
CHAPTER X RAILWAY STATIONS AND THE HANDLING OF PASSENGERS
Platforms versus No Platforms-Circulating Space-American " Train Sheds "-The Largest Stations-Waterloo-Liverpool Street - Edinburgh Waverley-Victoria-Clapham Junction-r73o Trains a Day-" Loops " instead of Terminal Platforms-Getting Passengers quickly off the Trains -Handling Tube Passengers-Lifts-Escalators-Automatic Booking-Offices-" Rush " Hour Traffic-Summer Holiday Traffic-Week-end Railway Difficulties 138
CHAPTER XI SIGNALS AND RAILWAY SIGNALLING
Safety in British Railway Travel-The Semaphore Signal-The B1ocllrSystemHome and Distant Signals-Distinguishing Distant Signals at Night-Pivoted versus " Somersault " Signal-Arms-Starting and Advanced Starting Signals-Three-Position Signals-Draw-Ahead Signals-Ground Discs-Signal Gantries-Route-Indicating Signals-Colour-Light Signals . 151
CHAPTER XII INSIDE THE SIGNAL-BOX
The Lever-Frame -Interlocking-Signalling Instruments-The Signalling Code-Engines Headlights-" Lock-and-Block " Signalling-Track Circuit-Permissive Block Working-Power Signalling-Automatic Signalling -Working Single Lines-The Electric Train-Staff 168
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
