Norfolk & Western Railway Co. Diagrams of Standard Locomotives
Norfolk & Western Railway Co. Diagrams of Passenger Equipment Stapled
1938-updated to 1941
Motive Power Department Roanoke, Virginia
Reprinted by TLC Publishing Measures approx 7 1/8 X 14

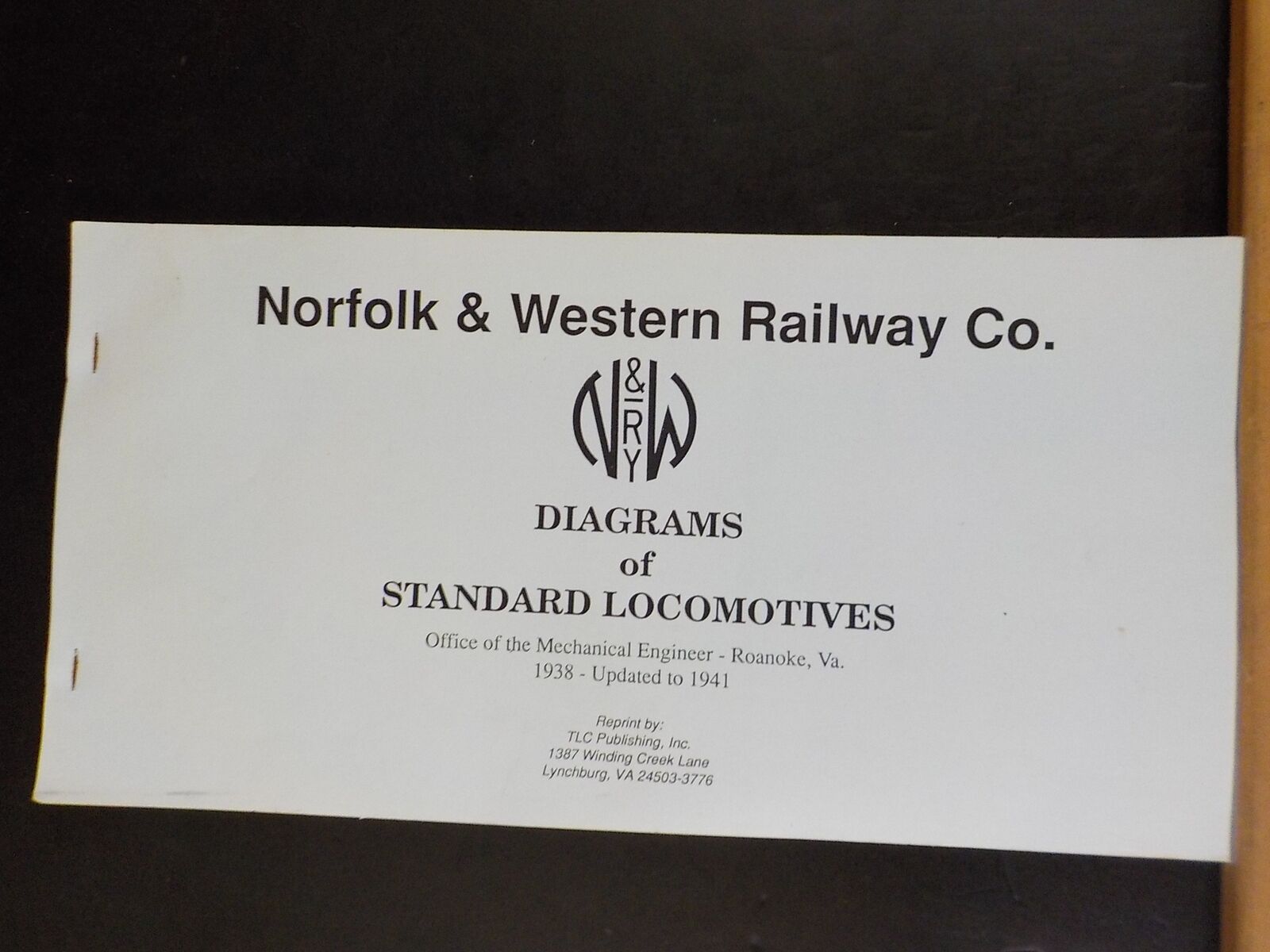

Norfolk & Western Railway Co. Diagrams of Standard Locomotives
1938 - Updated to 1941
Softcover
2-6-6-4 Simple Articulated Locomotive Class A
Electric Locomotive Class LC2 Type 2-8-2
4-6-2 Pacific Type Locomotive Class E1 M.P. Dept June 15, 1938
4-6-2 Pacific Type Locomotive Class E2a, E2b M.P. Dept June 17, 1938
4-6-2 Pacific Type Locomotive Class E2a, E2b M.P. Dept June 20, 1938
4-6-2 Pacific Type Locomotive Class E3 M.P. Dept June 21, 1938
2-8-0 Consolidation Type Locomotive Class G1 5000 Gallon Tender, 193000 Lbs. Cars
2-8-0 Consolidation Type Locomotive Class G1 6000 Gallon Tender, 17600 Lbs. Coal
4-8-4 Passenger Locomotive Class J 22000 Gallon Water Bottom Tender - 26 Tons Coal
4-8-2 Heavy Mountain Type Locomotive Class KI 16000 Gallon Tenders, 23 Tons Coal
4-8-2 Heavy Mountain Type Locomotive Class K2 18000 Gallon Tender (Water Bottom Frame) 26 Tons Coal
4-8-2 Heavy Mountain Type Locomotive Class K2 & K2a 16000 Gallon Tender, 23 Tons Coal
4-8-2 Heavy Mountain Type Locomotive Class K2, K2a 18000 Gallon Tender, 26 Tons Coal
4-8-2 Heavy Mountain Type Locomotive, Class K3 16000 Gallon Tender, 23 Tons Coal
4-8-0 Freight Locomotive Class M, MI 9000 Gallon Tender - 14 Tons Coal
4-8-0 Freight Locomotive Class M2, M2c 9000 Gallon Tender, 14 Tons Coal
4-8-0 Freight Locomotive Class M2, M2c 10000 Gallon U.S.R.A. Tender, 16 Tons Coal
4-8-0 Freight Locomotive Class M2, M2c 12000 Gallon U.S.R.A. Tender, 16 Tons Coal
4-8-0 Freight Locomotive Class M2, M2c 12000 Gallon N&W Tender, 20 Tons Coal
4-8-0 Freight Locomotive Class M2, M2c 15000 Gallon Tender, 20 Tons Coal
4-6-0 Passenger Locomotive Class VI 9000 Gallon Tender, 14 Tons Coal
2-8-0 Freight Locomotive Class W2 6000 Gallon Tender, 27600 Lbs. Coal
2-8-0 Freight Locomotive Class W2 9000 Gallon Tender, 14 Tons Coal
0-8-0 Shifter Class W6 Saddle Tank
2-8-8-2 Mallet Locomotive Class Y2c 12000 Gallon Tender (U.S.R.A), 16 Tons Coal Franklin Boosters Under Tender
2-8-8-2 Mallet Locomotive Class Y2c 12000 Gallon Tender (N&W), 18 Tons Coal Bethlehem Booster Under Tender
2-8-8-2 Mallet Locomotive Class Y2a 16000 Gallon Tender, 23 Tons Coal
2-8-8-2 Mallet Locomotive Class Y2a 18000 Gallon Tender, 26 Tons Coal
2-8-8-2 Mallet Locomotive Class Y2a 18000 Gallon Tender (Water Bottom Frame) 26 Tons Coal
2-8-8-2 Mallet Locomotive Class Y3, Y3a 16000 Gallon Tender, 23 Tons Coal
2-8-8-2 Mallet Locomotive Class Y3, Y3a 18000 Gallon Tender, 26 Tons Coal
2-8-8-2 Mallet Locomotive Class Y3, Y3a 18000 Gallon Tender (Water Bottom Frame) 26 Tons Coal
2-8-8-2 Mallet Locomotive Class Y3, Y3a 22000 Gallon Tender (Water Bottom Frame) 26 Tons Coal
2-8-8-2 Mallet Locomotive Class Y4 18000 Gallon Tender (Water Bottom Frame) 26 Tons Coal
2-8-8-2 Mallet Locomotive Class Y4 18000 Gallon Tender, 26 Tons Coal
2-8-8-2 Mallet Locomotive Class Y4 22000 Gallon Tender (Water Bottom Frame) 26 Tons Coal
2-8-8-2 Mallet Locomotive Class Y5 22000 Gallon Tender (Water Bottom Frame) 26 Tons Coal
2-8-8-2 Mallet Locomotive Class Y6 22000 Gallon Tender (Water Bottom Frame) 26 Tons Coal
2-6-6-2 Mallet Locomotive Class Z18 12000 Gallon Tender (N&W) 20 Tons Coal
2-6-6-2 Mallet Locomotive Class Z1a 12000 Gallon Tender (USRA) 16 Tons Coal
2-6-6-2 Mallet Locomotive Class Z1a 15000 Gallon Tender, 20 Tons Coal
2-6-6-2 Mallet Locomotive Class Z1a 16000 Gallon Tender, 23 Tons Coal
2-6-6-2 Type Mallet Locomotive Class Z1b 15000 Gals. Water 20 Tons Coal
2-6-6-2 Type Mallet Locomotive Class Z1b 16000 Gals. Water 23 Tons Coal
