Mitchell’s Models & Easy Lessons in Locomotive Running Westinghouse No.6 Distrib
Mitchells Models and Easy Lessons in Locomotive Running Westinghouse No.6 Distributing Valve E T Locomotive Brake Equipment
International Correspondence Schools, Scranton, PA - International Textbook Company Scranton, PA 7
43 Pages Covers loose
Copyright 1910 by International Textbook Company Entered at Stationers Hall, London
The book was designed to be used as part of a home study course on steam locomotives. Detailed instructions on how the parts work and how to repair them. Illustrated with large colored plates, several of which fold out. Oversized (12" x 10"). Looseleaf, tied with cord.

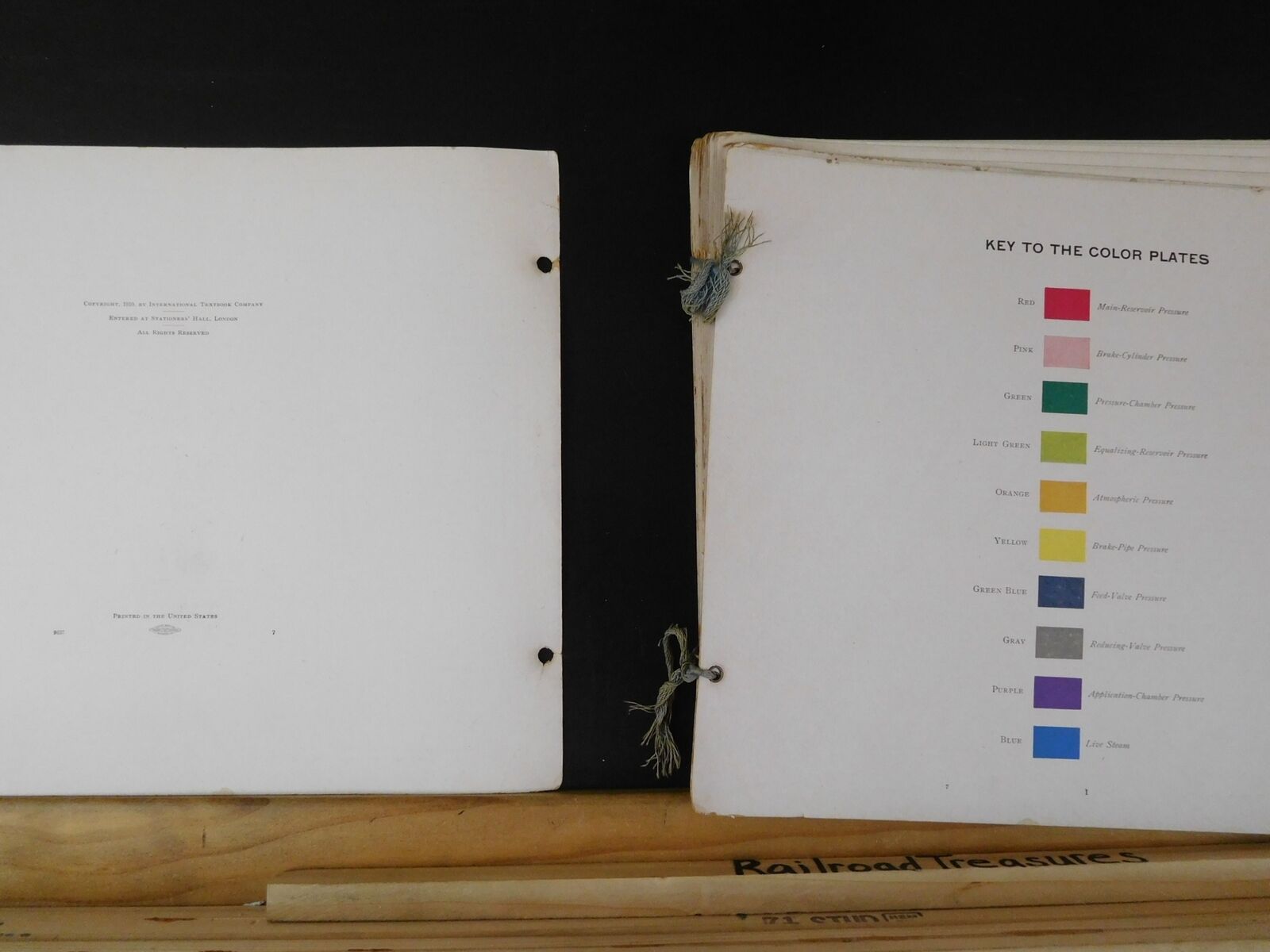

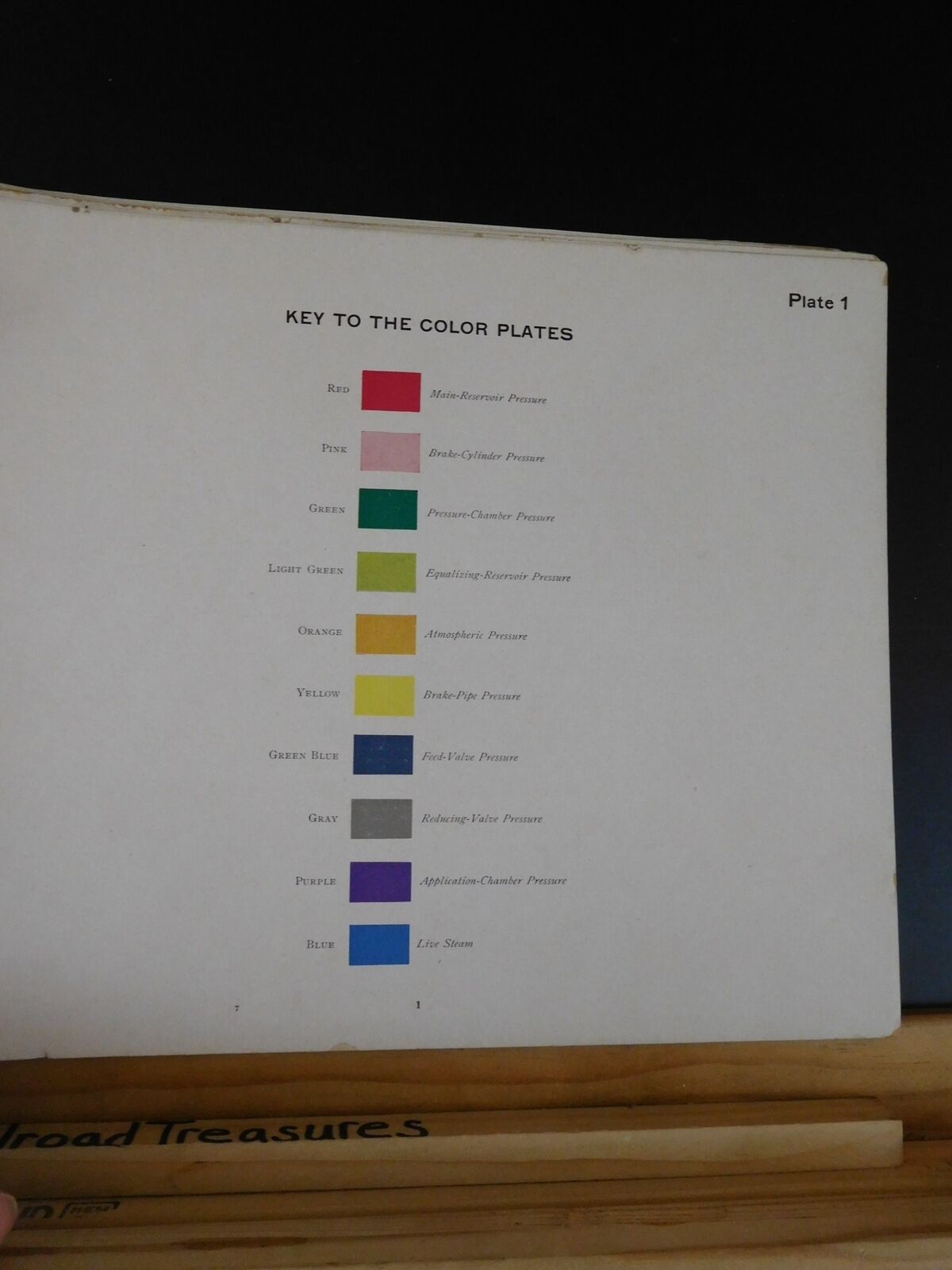

ey to the Color Plates
The No.6 ET Locomotive Brake Equipment
How to Study the Model
Diagram of the No.6 ET Equipment Piping
General Arrangement of Various Valves, Pipes, and Pipe Connections
The B-6 Double-Pressure Feed Valve

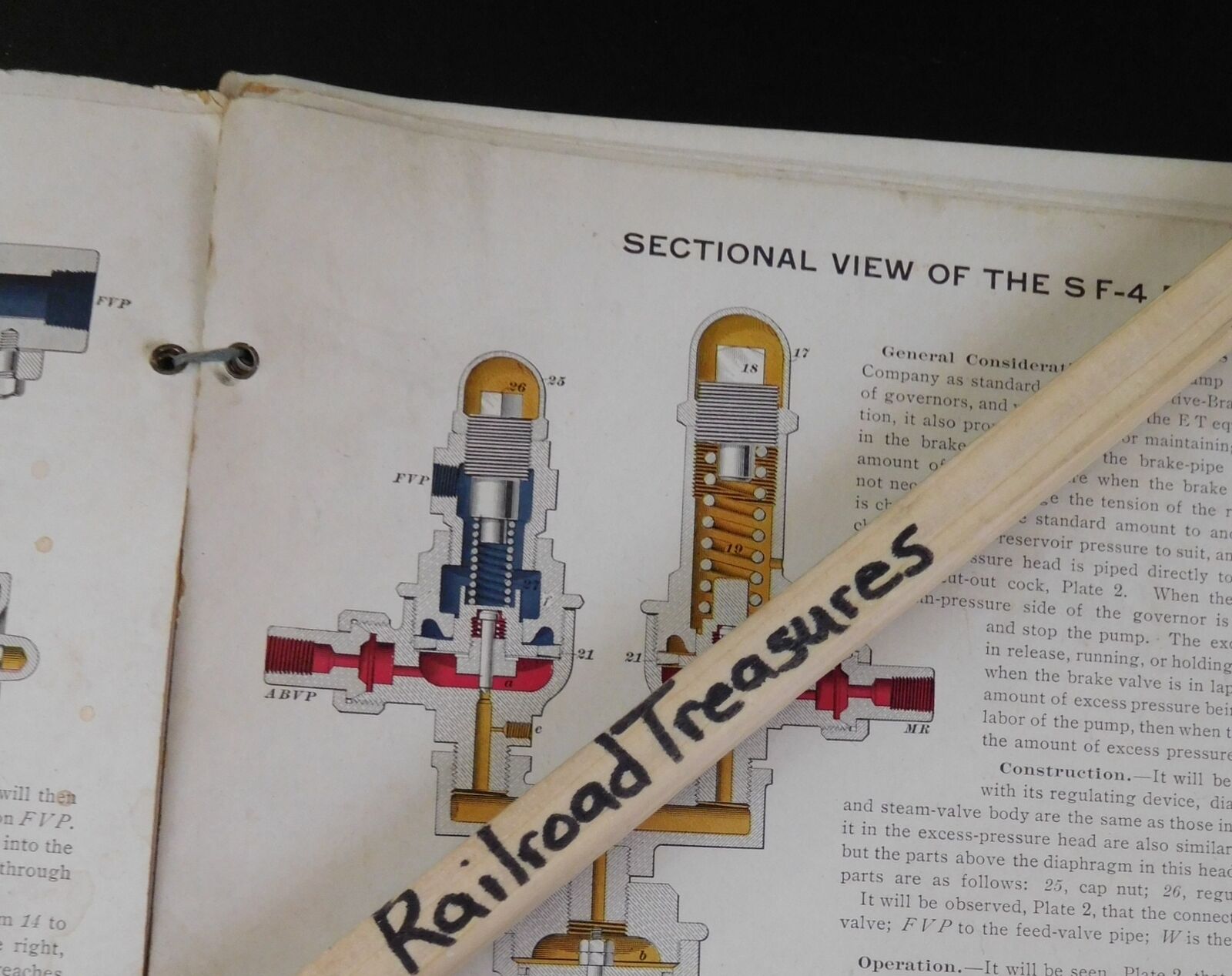

Sectional View of the S F-4 Pump Governor
Plan View of the End of the Reservoir

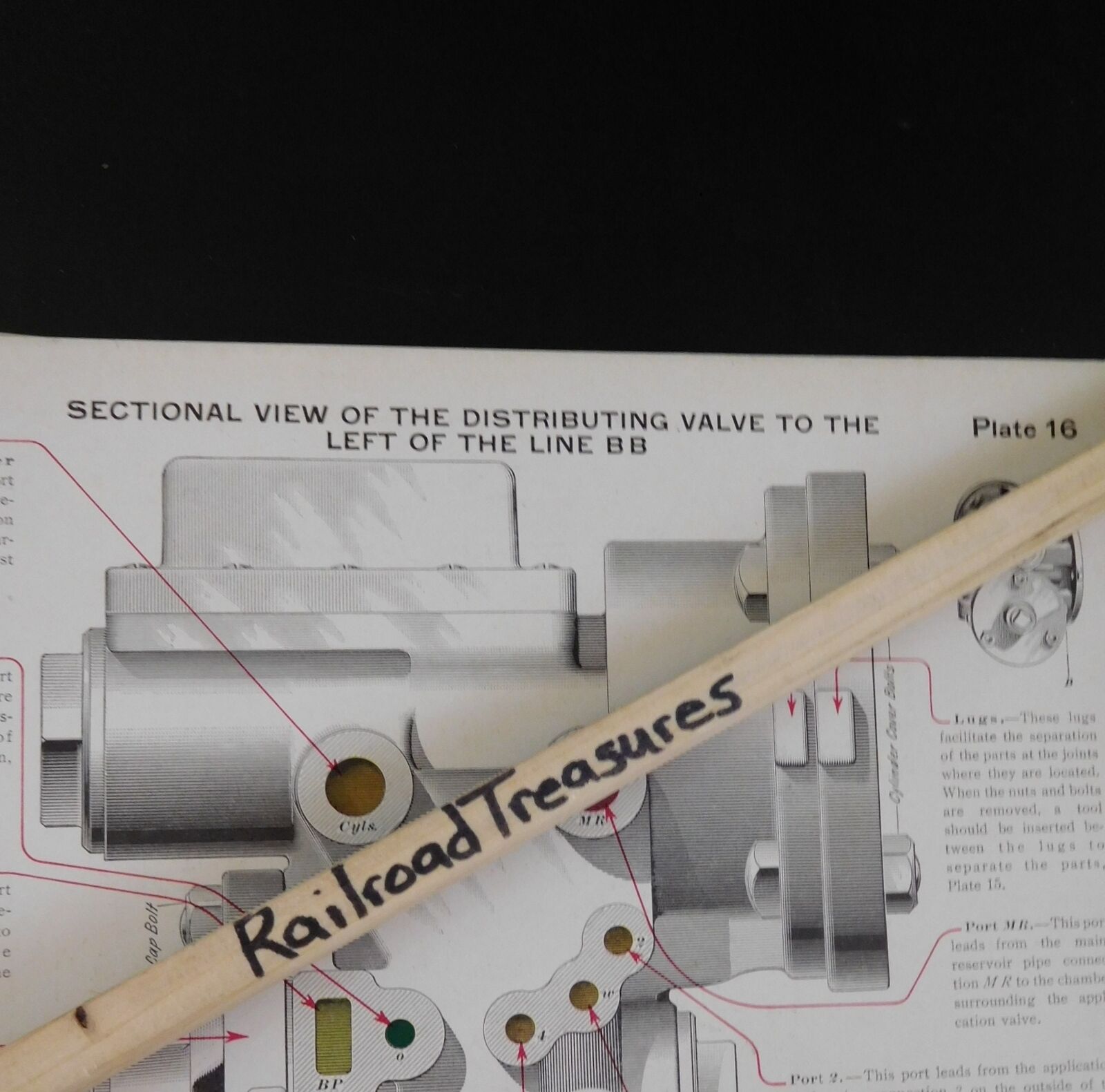

The No.6 Distributing Valve with Reservoir Removed
Application Piston, Valve, Graduating Stem and Spring, and Exhaust Valve and Seat
Equalizing Piston, Valve, Seat, Graduating Spring, and Sleeve
Operation of the Distributing Valve
Care, Maintenance, and Defects
All pictures are of the actual item. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
