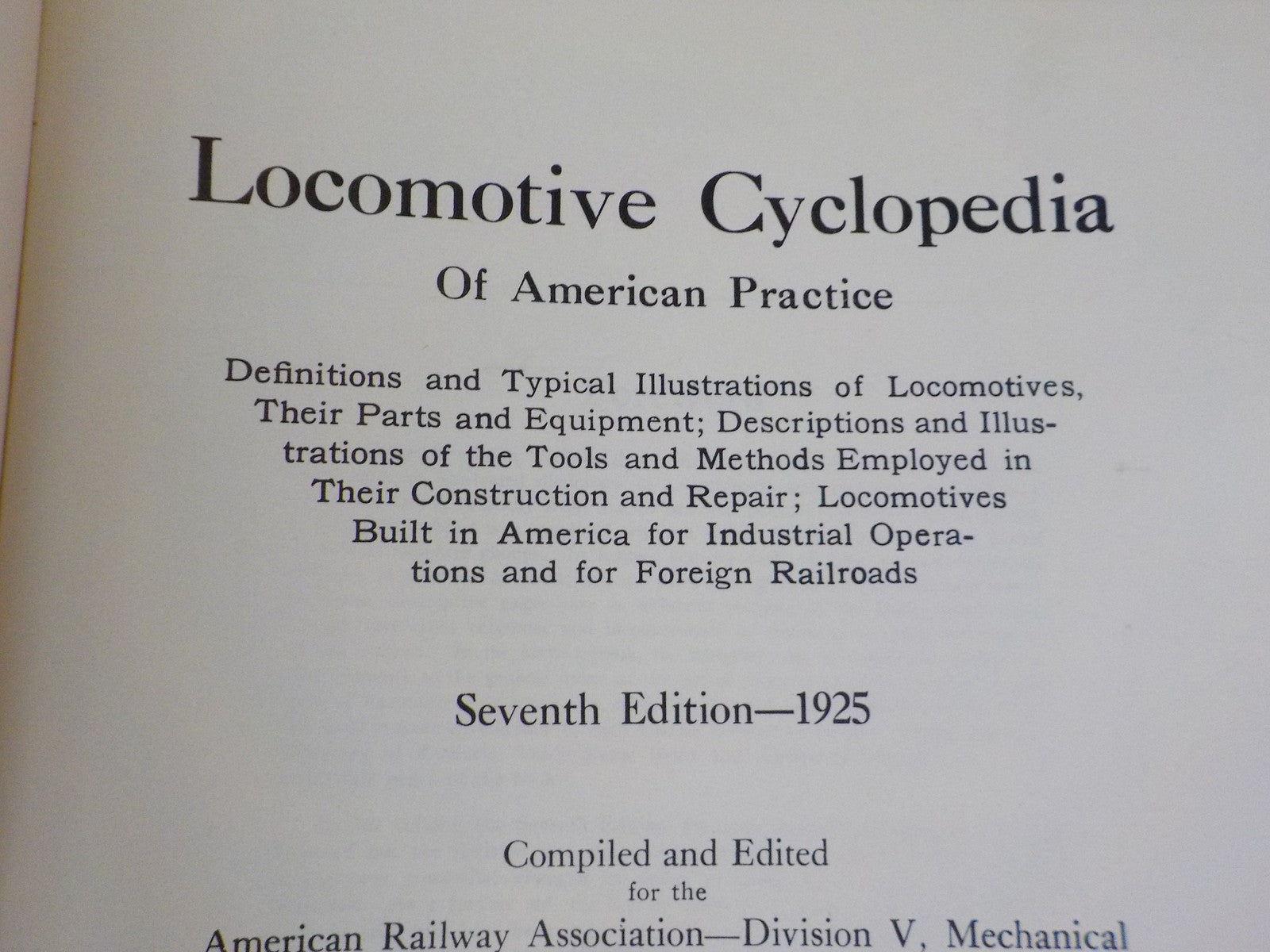

Locomotive Cyclopedia 1925 7th edition Reprint with folded dust jacket

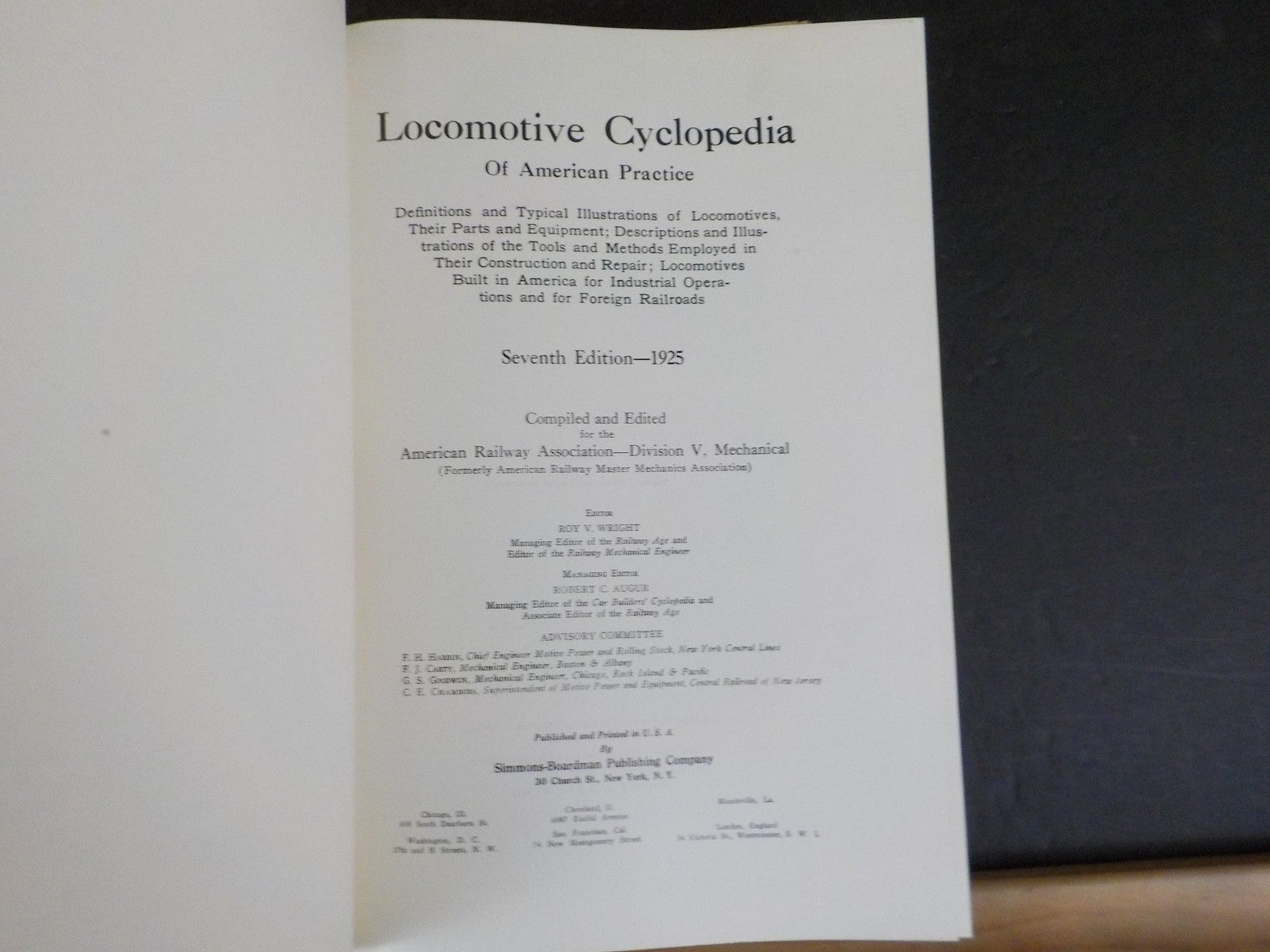

Locomotive Cyclopedia of American Practice 7th Edition 1925 Hard Cover 1130 Pages
Hard Cover
Definitions and Typical Illustrations of Locomotives, Their Parts and Equipment; Descriptions and Illustrations of Shops and Tools Employed in Their Construction and Repair; Locomotives Built in America for Railroad and Industrial Operations in Foreign Countries.
Locomotive Cyclopedia 1925 7th Edition Hard Cover DARK Green in color
Locomotive Cyclopedia
1925 7th Edition Inscription inside front cover.
Hard Cover Green in Color
Dust Jacket folded inside of Book
1130 Pages

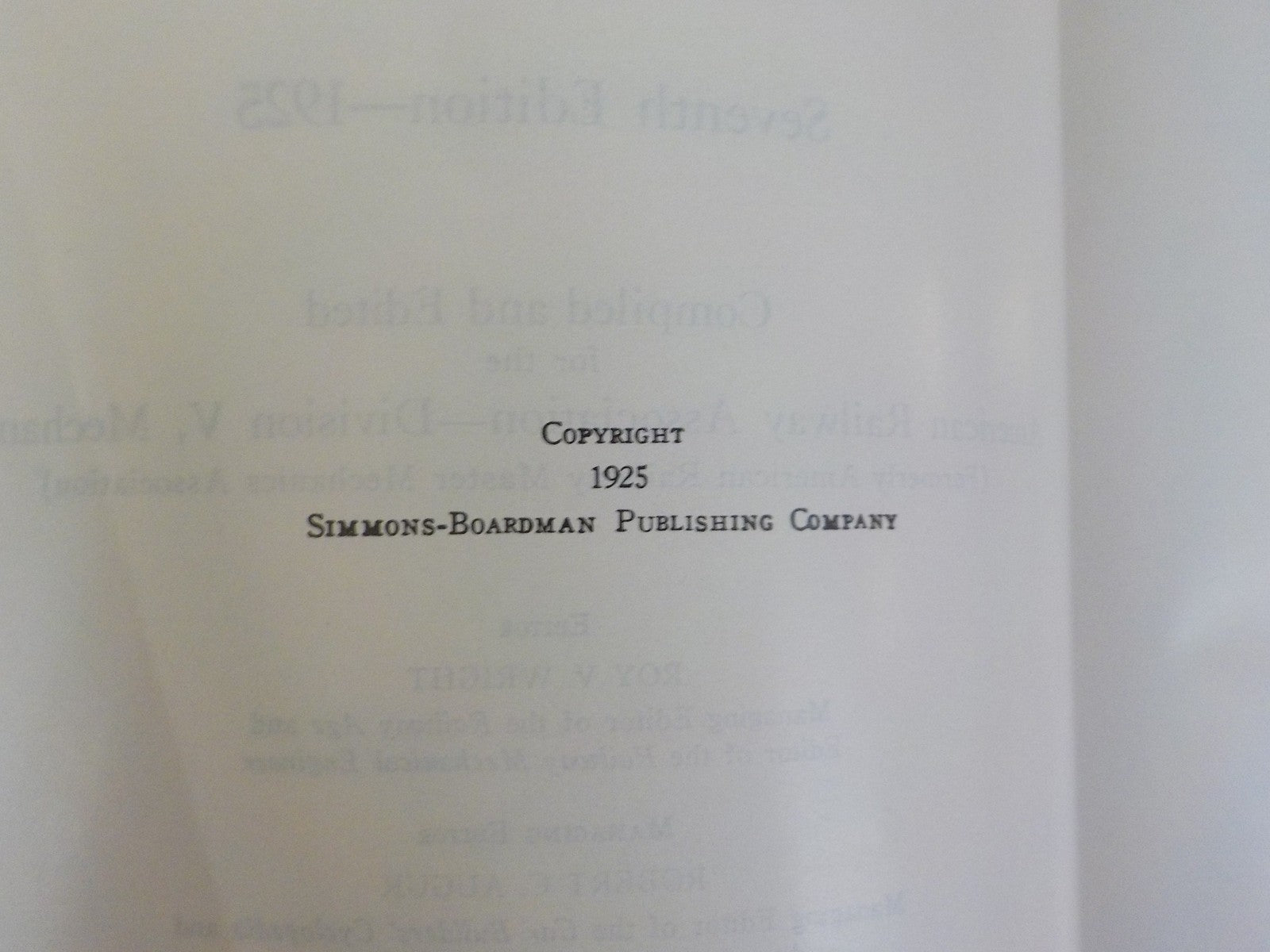

1925 Copyright REPRINTED 1973

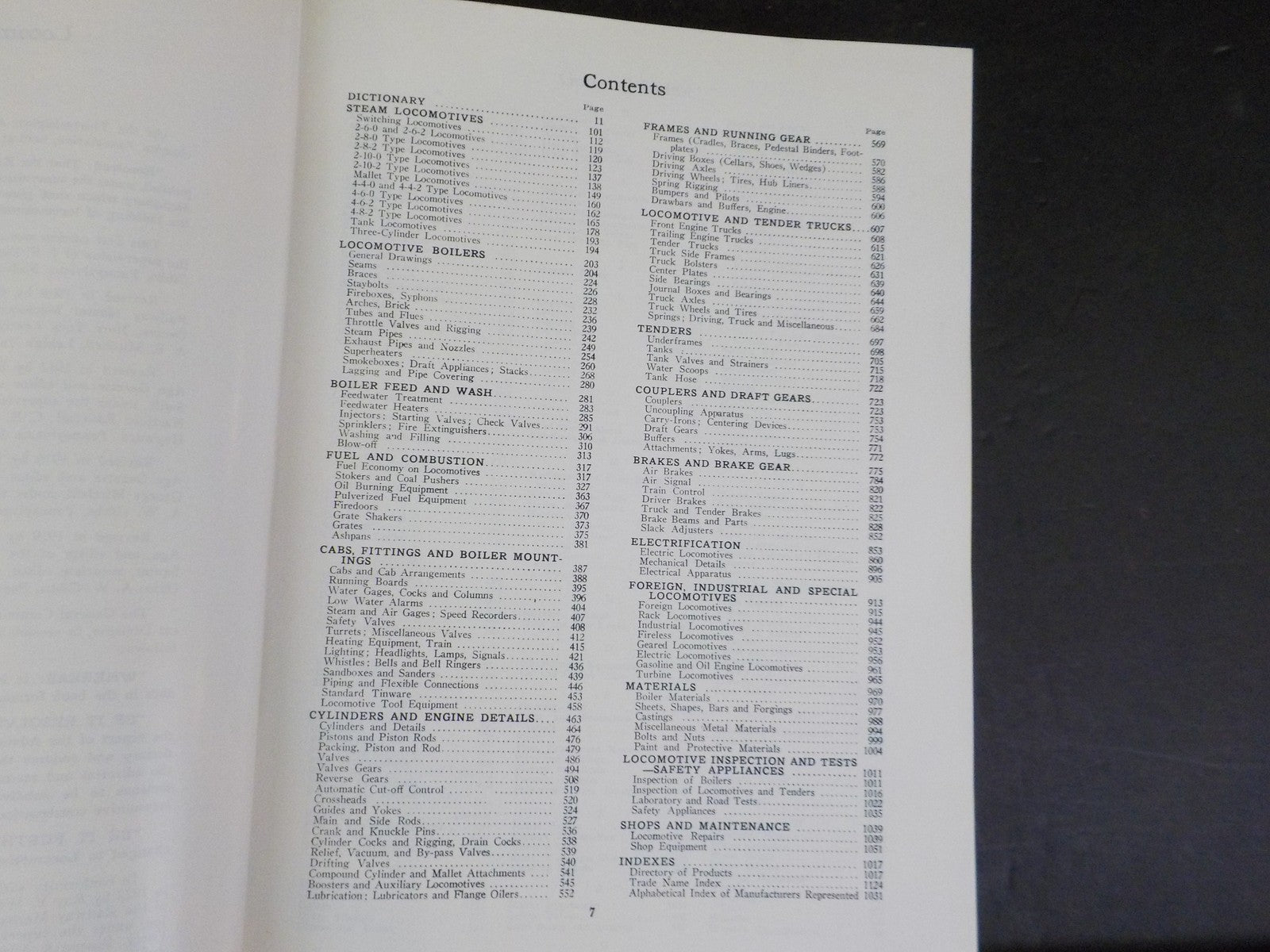

Contents
DICTIONARY 11
STEAM LOCOMOTIVES 101
Switching Locomotives 112
2-6-0 and 2-6-2 Locomotives 119
2-8-0 Type Locomotives 120
2-8-2 Type Locomotives 123
2-10-0 Type Locomotives 137
2-10-2 Type Locomotives 138
Mallet Type Locomotives 149
4-4-0 and 4-4-2 Type Locomotives 160
4-6-0 Type Locomotives 162
4-6-2 Type Locomotives 165
4-8-2 Type Locomotives 178
Tank Locomotives 193
Three-Cylinder Locomotives 194
LOCOMOTIVE BOILERS 203
General Drawings 204
Seams 224
Braces 226
Staybolts 228
Fireboxes, Syphons 232
Arches, Brick 236
Tubes and Flues 239
Throttle Valves and Rigging 242
Steam Pipes 249
Exhaust Pipes and Nozzles 254
Superheaters 260
Smokeboxes; Draft Appliances; Stacks 268
Lagging and Pipe Covering 280
BOILER FEED AND WASH 281
Feedwater Treatment 283
Feedwater Heaters 285
Injectors; Starting Valves; Check Valves 291
Sprinklers; Fire Extinguishers 306
Washing and Filling 310
Blow-off 313
FUEL AND COMBUSTION 317
Fuel Economy on Locomotives 317
Stokers and Coal Pushers 327
Oil Burning Equipment 363
Pulverized Fuel Equipment 367
Firedoors 370
Grate Shakers 373
Grates 375
Ashpans 381
CABS, FITTINGS AND BOILER MOUNT-
INGS 387
Cabs and Cab Arrangements 388
Running Boards 395
Water Gages, Cocks and Columns 396
Low Water Alarms 404
Steam and Air Gages ; Speed Recorders 407
Safety Valves 408
Turrets; Miscellaneous Valves 412
Heating Equipment, Train 415
Lighting; Headlights, Lamps, Signals 421
Whistles; Bells and Bell Ringers 436
Sandboxes and Sanders 439
Piping, and Flexible Connections 446
StandardTinware 453
Locomotive Tool Equipment 458
CYLINDERS AND ENGINE DETAILS 463
Cylinders and Details 464
Pistons and Piston Rods 476
Packing, Piston and Rod 479
Valves 486
Valves Gears 494
Reverse Gears 508
Automatic Cut-off Control 519
Crossheads 520
Guides and Yokes 524
Main and Side Rods 527
Crank and Knuckle Pins 536
Cylinder Cocks and Rigging, Drain Cocks 538
Relief, Vacuum, and By-pass Valves 539
Drifting Valves 540
Compound Cylinder and Mallet Attachments 541
Boosters and Auxiliary Locomotives 545
Lubrication; Lubricators and Flange Oilers 552
FRAMES AND RUNNING GEAR 569
Frames (Cradles, Braces, Pedestal Binders, Foot-
plates) 570
Driving Boxes (Cellars, Shoes, Wedges) 582
Driving Axles 586
Driving Wheels; Tires, Hub Liners 588
Spring Rigging 594
Bumpers and Pilots 600
Drawbars and Buffers, Engine 606
LOCOMOTIVE AND TENDER TRUCKS....607
Front Engine Trucks 608
Trailing Engine Trucks 615
Tender Trucks 621
Truck Side Frames 626
Truck Bolsters 631
Center Plates 639
Side Bearings 640
Journal Boxes and Bearings 644
Truck Axles 659
Truck Wheels and Tires 662
Springs; Driving, Truck and Miscellaneous 684
TENDERS 697
Under f rames 698
Tanks 705
Tank Valves and Strainers 715
Water Scoops 718
Tank Hose 722
COUPLERS AND DRAFT GEARS 723
Couplers 723
Uncoupling Apparatus 753
Carry-Irons; Centering Devices 753
Draft Gears 754
Buffers 771
Attachments; Yokes, Arms, Lugs 772
BRAKES AND BRAKE GEAR 775
Air Brakes 784
Air Signal 820
Train Control 821
Driver Brakes 822
Truck and Tender Brakes 825
Brake Beams and Parts 828
Slack Adjusters 852
ELECTRIFICATION 853
Electric Locomotives 860
Mechanical Details 896
Electrical Apparatus 905
FOREIGN, INDUSTRIAL AND SPECIAL
LOCOMOTIVES 913
Foreign Locomotives 915
Rack Locomotives 944
Industrial Locomotives 945
Fireless Locomotives 952
Geared Locomotives 953
Electric Locomotives 956
Gasoline and Oil Engine Locomotives 961
Turbine Locomotives 965
MATERIALS 969
Boiler Materials 970
Sheets, Shapes, Bars and Forgings 977
Castings 988
Miscellaneous Metal Materials 994
Bolts and Nuts 999
Paint and Protective Materials 1004
LOCOMOTIVE INSPECTION AND TESTS
SAFETY APPLIANCES 1011
Inspection of Boilers 1011
Inspection of Locomotives and Tenders 1016
Laboratory and Road Tests 1022
Safety Appliances 1035
SHOPS AND MAINTENANCE 1039
Locomotive Repairs 1039
Shop Equipment 1051
INDEXES 1017
Directory of Products 1017
Trade Name Index 1124
Alphabetical Index of Manufacturers Represented 1031
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
