LNWR Wagons Volume 1 by the London & North Western Railway Society EDITED BY C
LNWR Wagons Volume 1 by the London & North Western Railway Society EDITED BY CHRIS NORTHEDGE
Authors: Mike Williams, Peter Ellis, John Shelley, Peter Davis, Tim Hughes and Bob Williams
Hard cover with dust jacket
Copyright 2001
208 pages

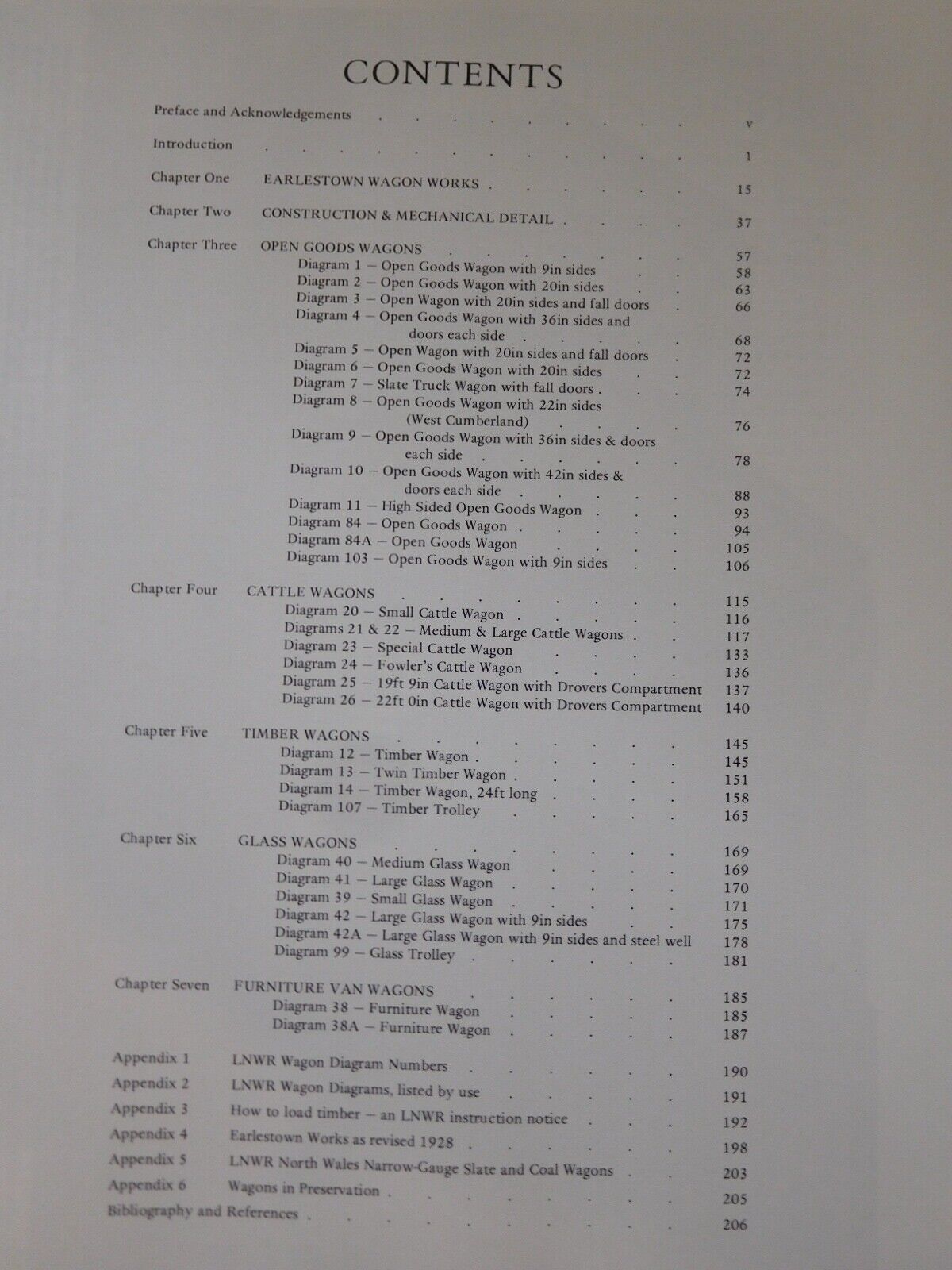

CONTENTS
Preface and Acknowledgements
Introduction
Chapter OneEARLESTOWN WAGON WORKS .
Chapter Two Chapter Three
Diagram 1 - Open Goods Wagon with 9in sides
Diagram 2 - Open Goods Wagon with 20in sides.
Diagram 3 - Open Wagon with 20in sides and fall doors Diagram 4 - Open Goods Wagon with 36in sides and
doors each side ..
Diagram 5 - Open Wagon with 20in sides and fall doors
Diagram 6 - Open Goods Wagon with 20in sides.
Diagram 7 - Slate Truck Wagon with fall doors . Diagram 8 - Open Goods Wagon with 22in sides
(West Cumberland).
Diagram 9 - Open Goods Wagon with 36in sides & doors
each side.
Diagram 10 - Open Goods Wagon with 42in sides &
doors each side . . Diagram 11 - High Sided Open Goods Wagon . Diagram 84 - Open Goods Wagon . .
Diagram 84A - Open Goods Wagon.
Diagram 103 - Open Goods Wagon with 9in sides

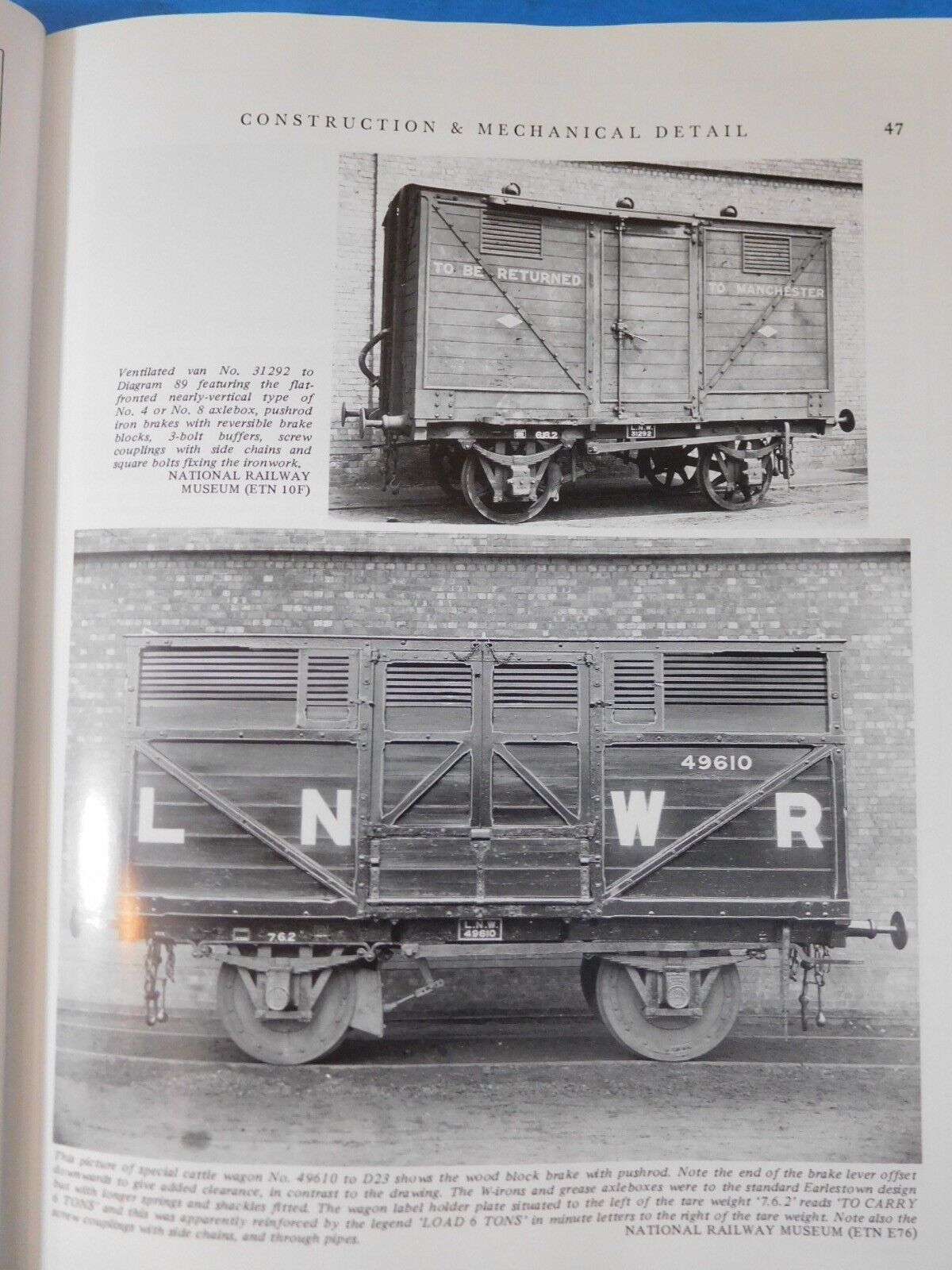

CONSTRUCTION & MECHANICAL DETAIL .
OPEN GOODS WAGONS.
Chapter Four
CATTLE WAGONS.
Diagram 20 - Small Cattle Wagon ..

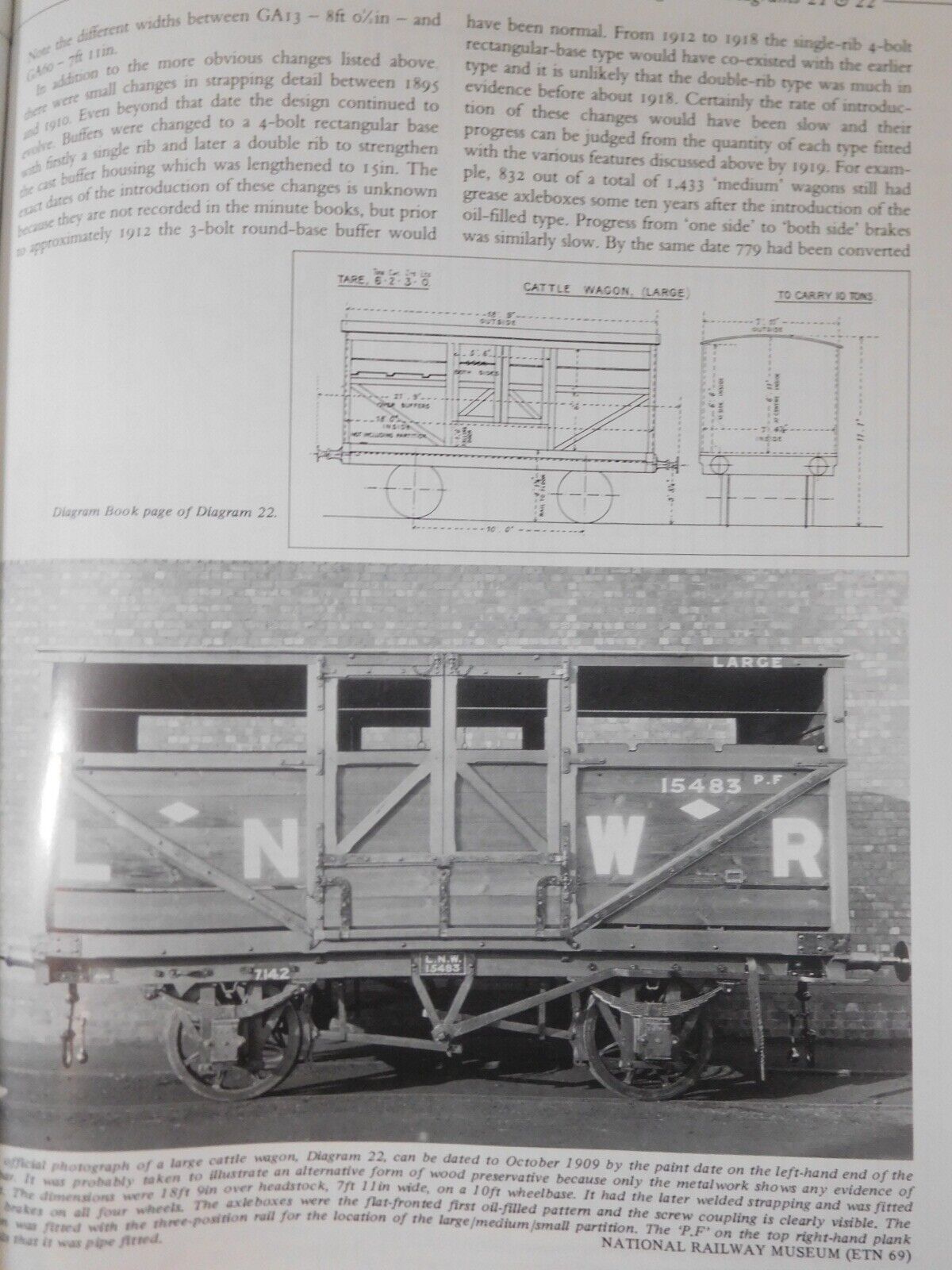

Diagrams 21 & 22 - Medium & Large Cattle Wagons . Diagram 23 - Special Cattle Wagon
Diagram 24 - Fowler's Cattle Wagon.
Diagram 25 - 19ft 9in Cattle Wagon with Drovers Compartment Diagram 26 - 22ft Oin Cattle Wagon with Drovers Compartment
Chapter FiveTIMBER WAGONS.
Diagram 12 - Timber Wagon ..

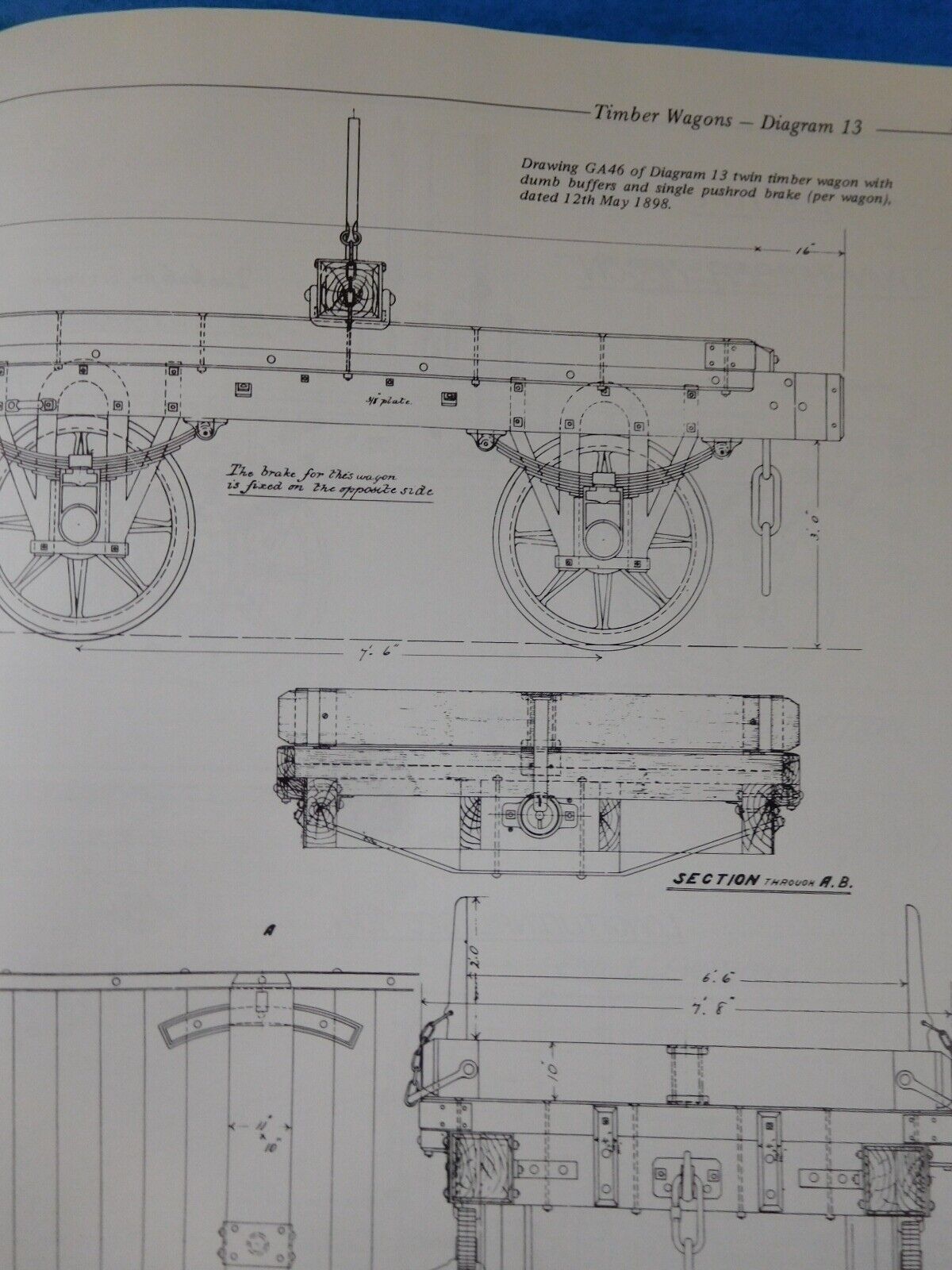

Diagram 13 - Twin Timber Wagon . Diagram 14 - Timber Wagon, 24ft long Diagram 107 - Timber Trolley.
Chapter Six
GLASS WAGONS.
Diagram 40 - Medium Glass Wagon Diagram 41 - Large Glass Wagon . Diagram 39 - Small Glass Wagon .
Diagram 42 - Large Glass Wagon with 9in sides.
Diagram 42A - Large Glass Wagon with 9in sides and steel well
Diagram 99 - Glass Trolley ..
Chapter Seven
FURNITURE VAN WAGONS.
Diagram 38 - Furniture Wagon.
Diagram 38A - Furniture Wagon .
LNWR Wagon Diagram Numbers . LNWR Wagon Diagrams, listed by use.
How to load timber - an LNWR instruction notice
Earlestown Works as revised 1928 .
LNWR North Wales Narrow-Gauge Slate and Coal Wagons Wagons in Preservation .
The locomotives and carriages of the London and North Western Railway have been the subjects of publications by other authors, locomotives most recently by Ted Talbot and carriages by David Jenkinson, Phillip A. Millard and Richard M. Casserley. Lineside items have been covered by Richard Foster (signals) and by inclusion in regional histories by various others.
There has long been a gap in the published material in that LNWR wagons have received very little attention. This publication attempts to rectify that by studying LNWR wagons from the earliest railways until the 1923 grouping. No attempt has been made to cover either North London Railway or Dundalk, Newry and Greenore Railway wagons, but those from other absorbed lines have been included in the relevant chapters where information is available.
No attempt has been made to cover post-I923 liveries, renumbering or scrapping dates although LMS and later photographs are included, and some later constructional changes are mentioned to aid reference back to the LNWR design.
The chapters in this volume were written and illustrated by Peter Davis, Peter Ellis, John Shelley, Bob Williams and Mike Williams; additional drawings were done by Tim Hughes. The late Jim Richards' knowledge of pre-group days from first-hand observation complemented official sources. Many of his photographs and drawings have been gratefully used as reference material. Assistance was also received from Richard Foster, Gordon Reid, Don Rowland, the late Dudley Whitworth, Philip Millard, the late Geoff Williams, Newton Reference Library and the St. Helens Reference Library. Bob Essery made his photograph and drawing collection available to the authors. Finally, Chris Northedge acted as Editor to draw together and publish the material, and added sections on liveries and slate wagons.
Official reference material is available for inspection from: the Public Records Office, Kew - building records; the National Railway Museum, York - photographs, both official and from their collections; and the Historical Model Railway Society - copies of official drawings.
The LNWR Society was instrumental both in bringing the authors together and in providing collections of drawings and photographs which proved invaluable.
All pictures are of the actual item. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
