Kaymoor Coal Mine 1900 Fayetteville vicinity WV 11X17 spiral binding

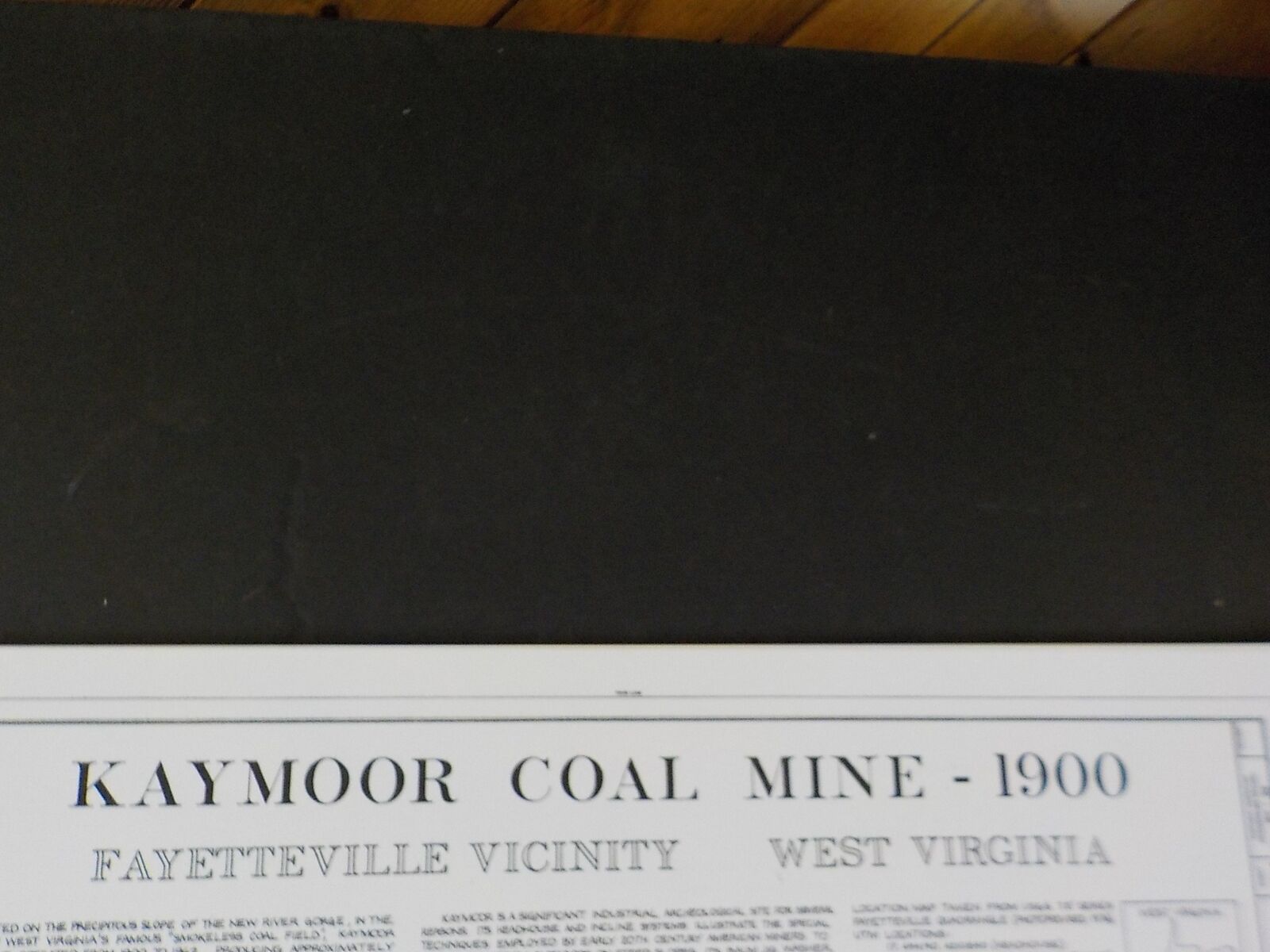

Kaymoor Coal Mine 1900 Fayetteville vicinity WV
Approx 11 X 17 inches
Spiral comb binding
Overview

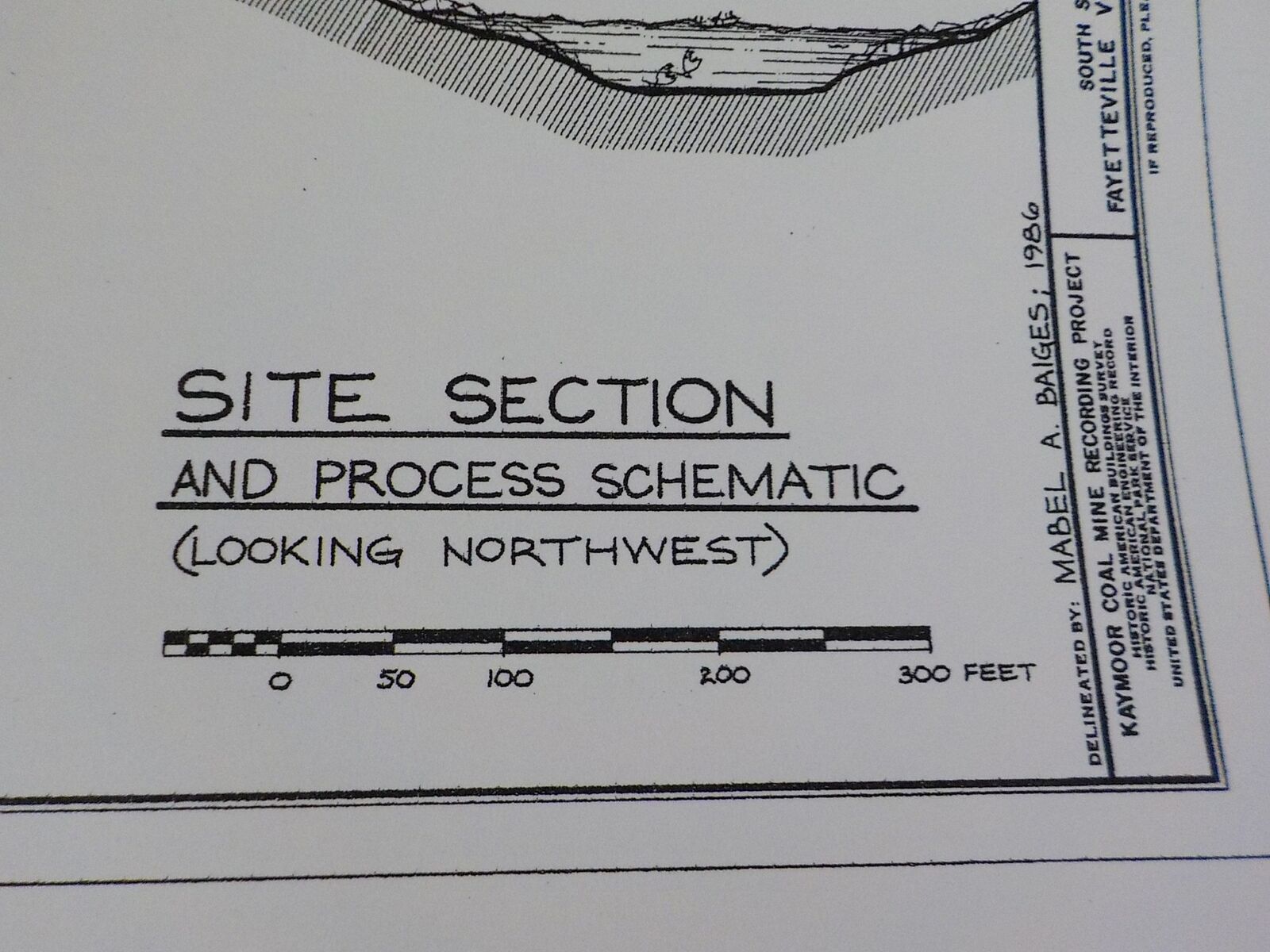

Site section and process schematic
Bench level site plan
Headhouse floor plan
Headhouse elevations
Headhouse section A-a
Ventilation structures and openings Low Moor and Berwind eras
Gravity incline drum and monitor car / reciprocating feeder
Track level site plan

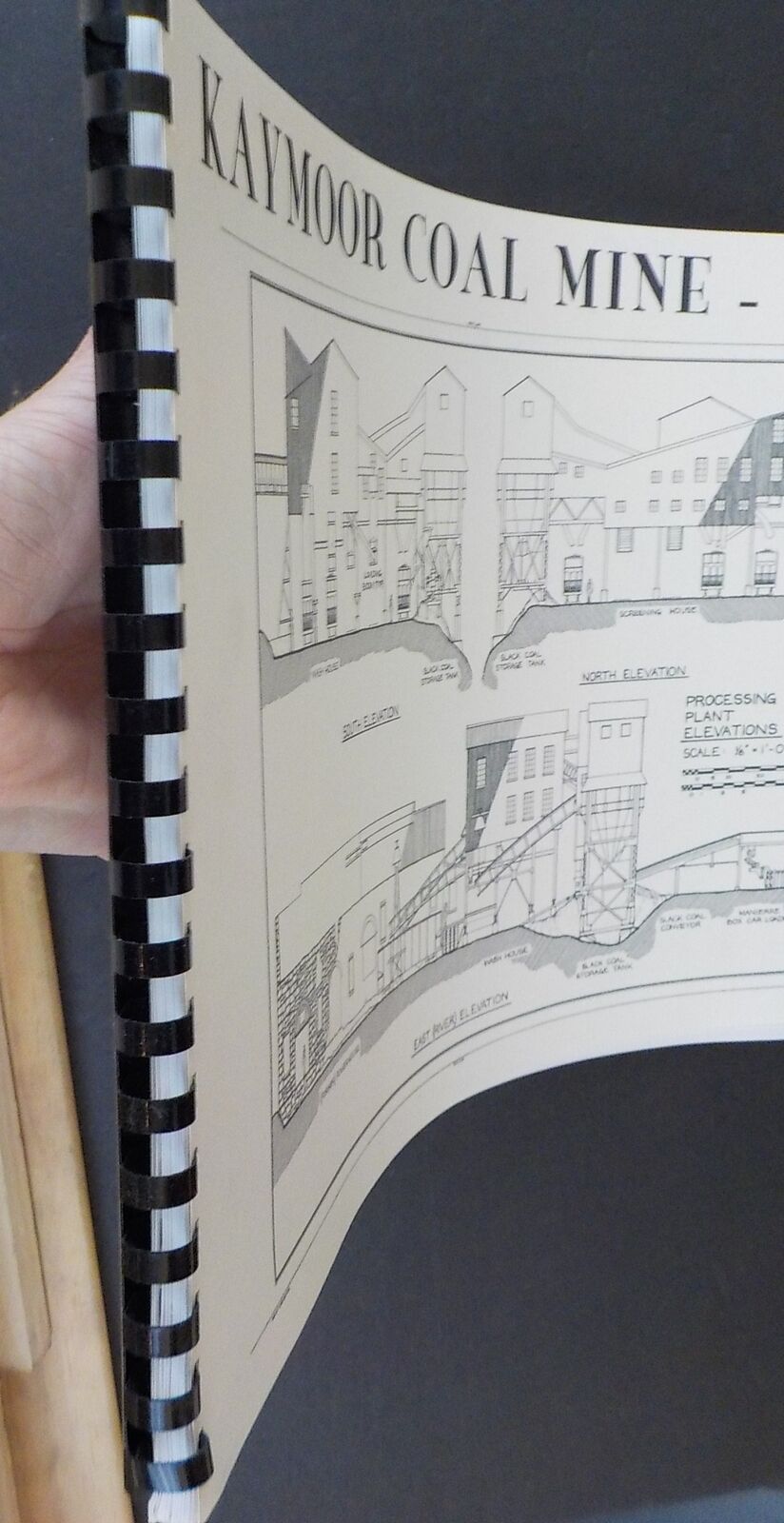

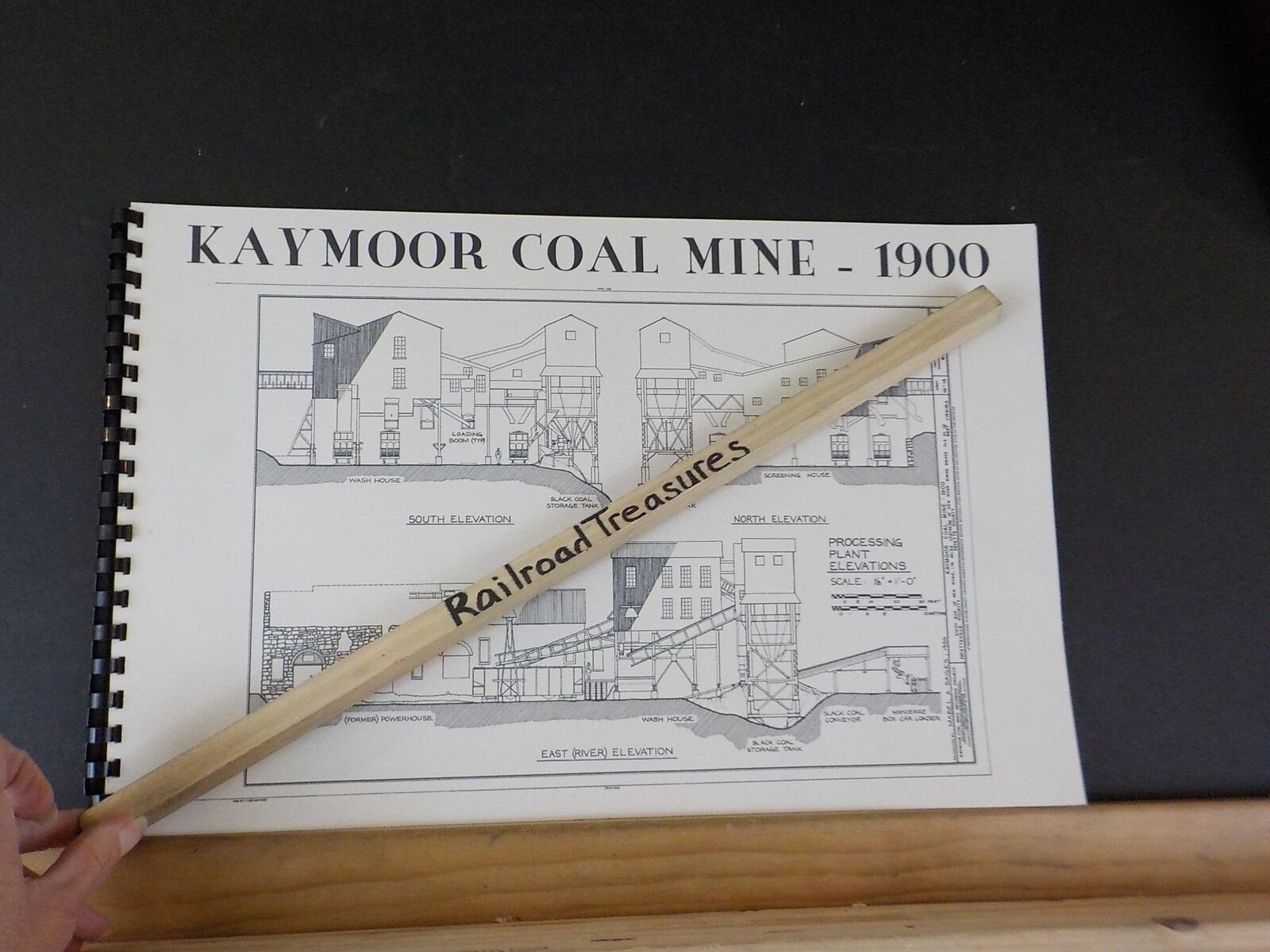

Processing plant elevations
Processing plant plan
Processing plant section A-a
Section B-B and C-c
Coal movement in the headhouse
Coal movement in the main screening room
Coal movement in the wash house
Site plan
Early mining methods Kay Moor #1 mine 1910
Early mining methods Kay Moor #1 mine 1941
Historical perspective Kay Moor #1 mine 1928
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
