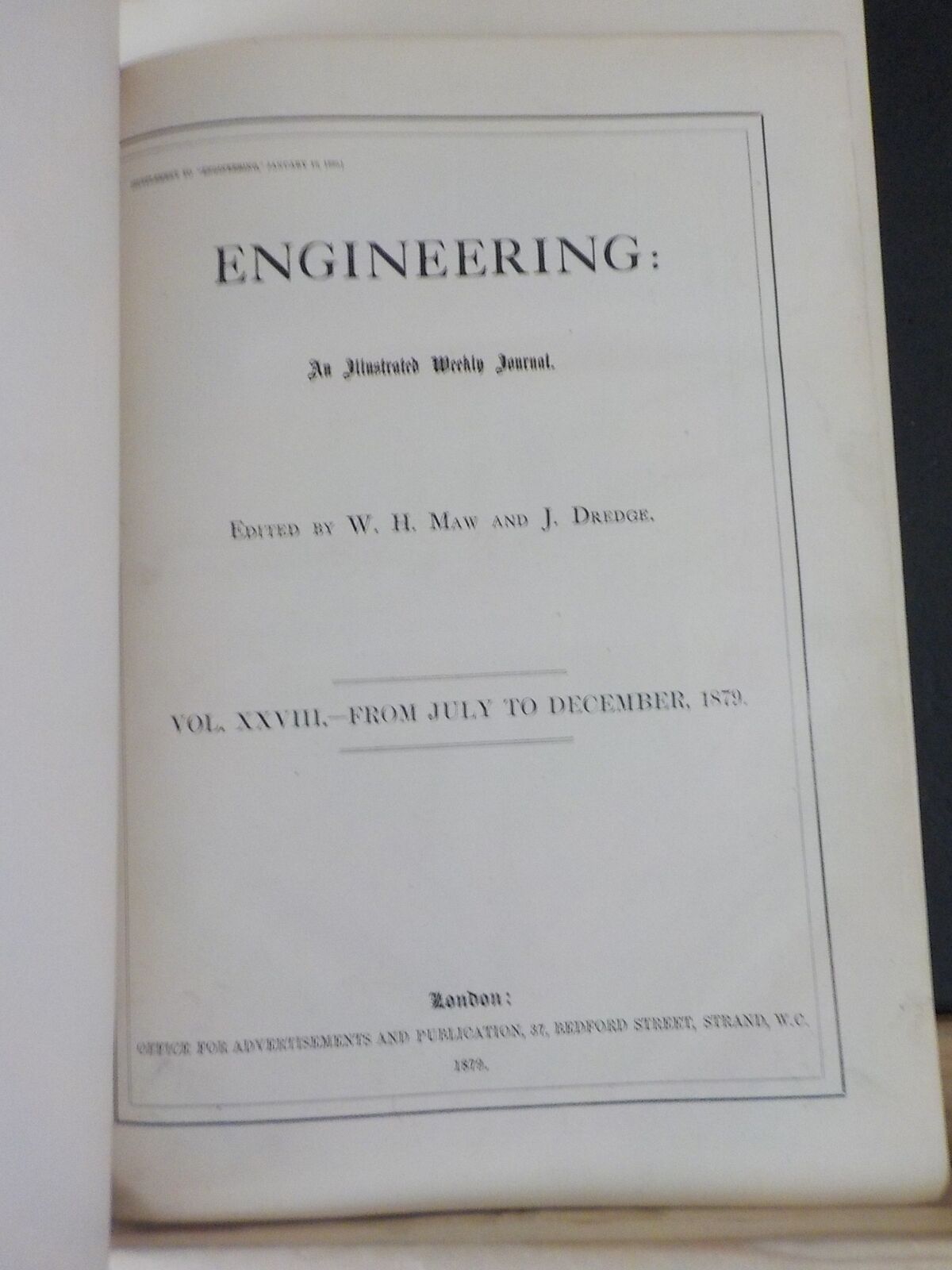

Engineering Magazine Vol XXVIII 1879 July 4 thru Dec 26 Weekly
Engineering Magazine Vol XXVIII 1879
Hard Cover
498 pages
Copyright 1879

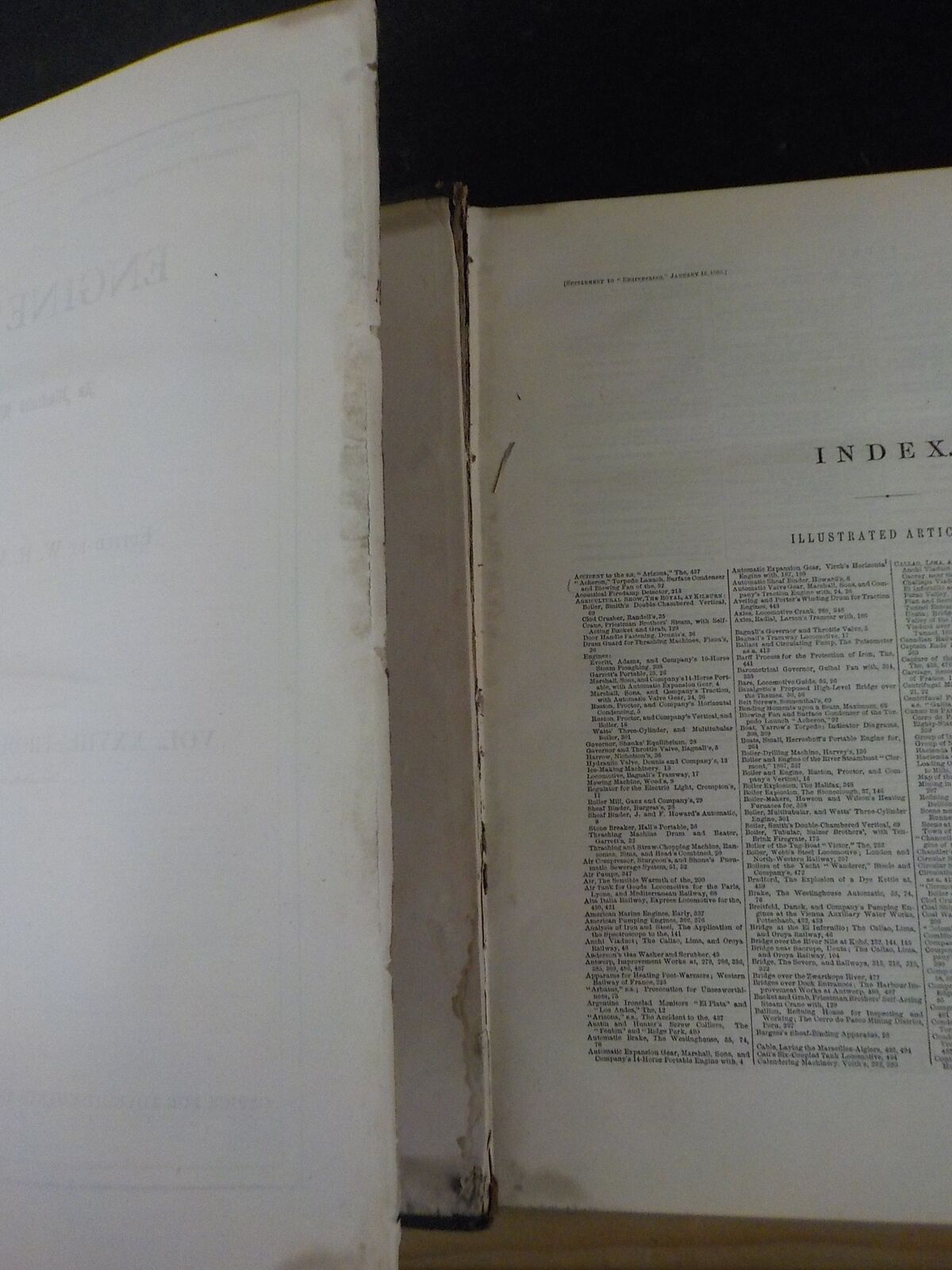

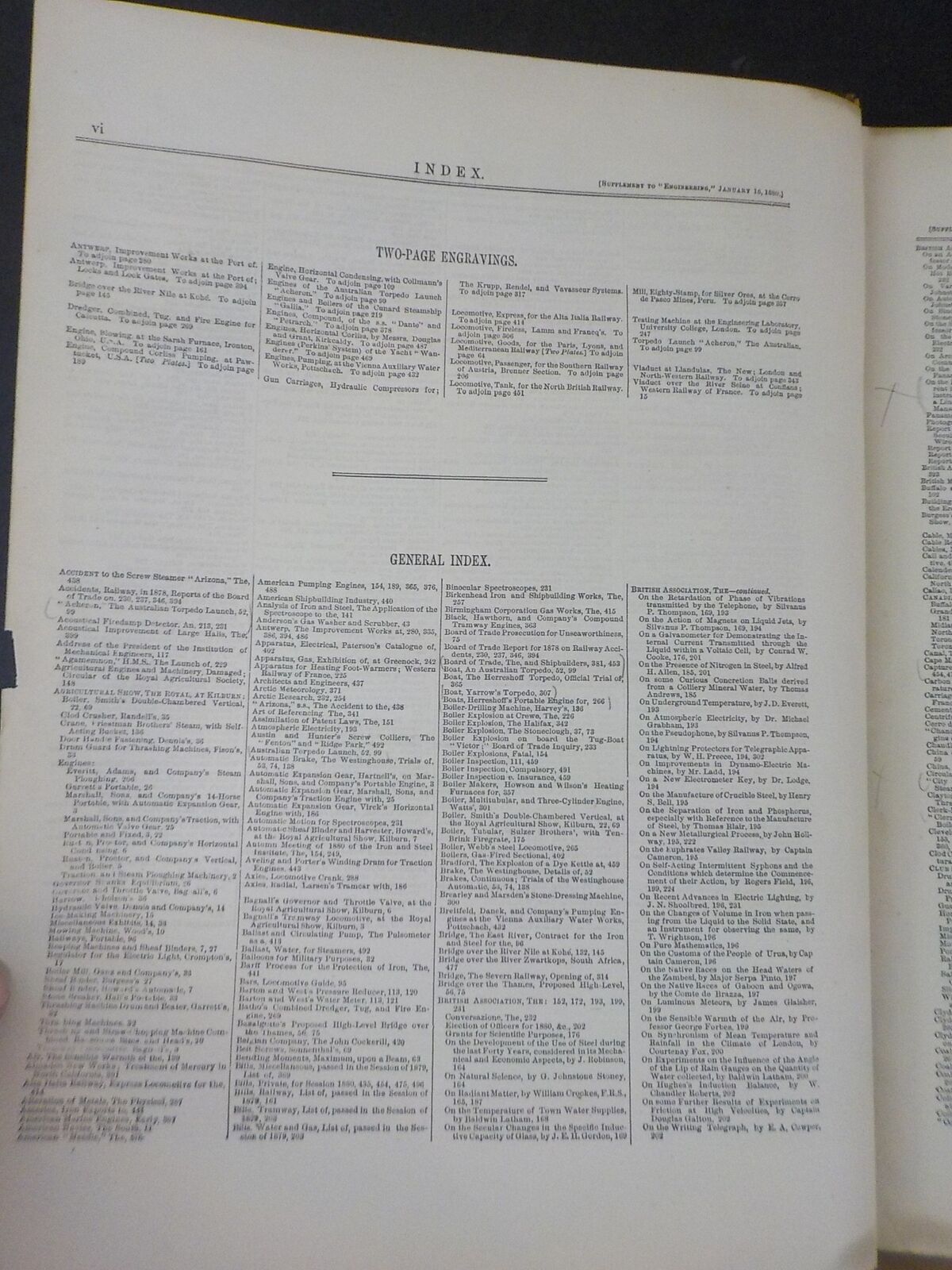

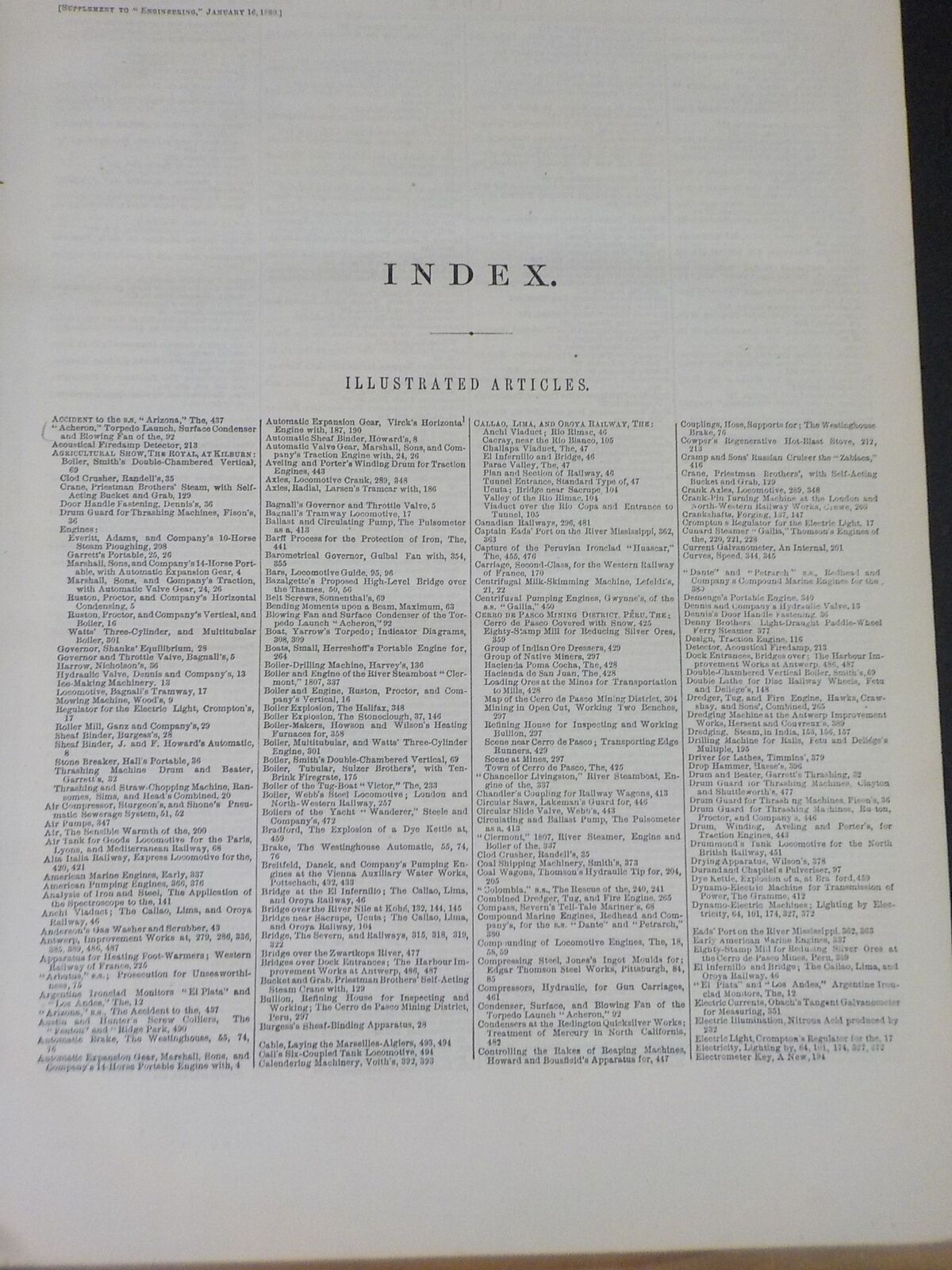

CONTENTS
ILLUSTRATED ARTICLES
ACCIDENT to the s.s. " Arizona," The, 437
"Acheron," Torpedo Launch, Surface Condenser and Blowing Fan of the, 92
Acoustical Firedamp Detector, 213 AGRICULTURAL SHOW, THE ROYAL, AT KILBURN : Boiler, Smith's Double-Chambered Vertical, 69
Clod Crusher, Randeli's, 35
Crane, Priestman Brothers' Steam, with Self-Acting Bucket and Grab, 129
Door Handle Fastening, Dennis's, 36
Drum Guard for Thrashing Machines, Fisons, 36
Engines
Everitt, Adams, and Company's 10-Horse Steam Ploughing, 208
Garrett's Portable, 25, 26
Marshall, Sons, and Company's 14-Horse Portable, with Automatic Expansion Gear, 4
Marshall, Sons, and Company's Traction, with Automatic Valve Gear, 24, 26
Ruston, Proctor, and Company's Horizontal Condensing, 5
Ruston, Proctor, and Company's Vertical, and Boiler, 16
Watts' Three-Cylinder, and Multitubular Boiler, 301
Governor, Shanks' Equilibrium, 28
Governor and Throttle Valve, Bagnall's, 5 Harrow, Nicholson's, 36
Hydraulic Valve, Dennis and Company's, 13
Ice-Making Machinery. 13
Locomotive, Bagnall's Tramway, 17
Mowing Machine, Wood's, 9
Regulator for the Electric Light, Crompton's, 17
Roller Mill, Ganz and Company's, 29
Sheaf Binder, Burgess's, 28
Sheaf Binder, J. and F. Howard's Automatic, 8
Stone Breaker, Hall's Portable, 36
Thrashing Machine Drum and Beater, Garrett's, 3.2
Thrashing and Straw Chopping Machine, Ransomes, Sims, and Head's Combined, 20
Air Compressor, Sturgeon's, and Shone's Pneumatic Sewerage System, 51, 52
Air Pumps, 347
Air, The Sensible Warmth of the, 200
Air Tank for Goods Locomotive for the Paris, Lyons, and Mediterranean Railway, 68
Alta Italia Railway, Express Locomotive for the, 420, 421
American Marine Engines, Early, 337
American Pumping Engines, 366, 376
Analysis of Iron and Steel, The Application of the Spectroscope to the, 141
Anchi Viaduct; The Callao, Lima, and Oroya Railway, 46
Anderson's Gas Washer and Scrubber, 43
Antwerp, Improvement Works at, 279, 286, 336, 385, 389, 486, 487
Apparatus for Heating Foot-Warmers; Western Railway of France, 225
"Arbutus," s.s.; Prosecution for Unseaworthiness, 75
Argentine Ironclad Monitors "El Plata" and . "Los Andes," The, 12
"Arizona," s.s., The Accident to the, 437
Austin and Hunter's Screw Colliers, The "Fenton" and "Ridge Park, 490
Automatic Brake, The Westinghouse, 55, 74, 76
Automatic Expansion Gear, Marshall, Sons, and
Company's 14-Horse Portable Engine with, 4
Automatic Expansion Gear, Virck's Horizontal Engine with, 187, 190
Automatic Sheaf Binder, Howard's, 8
Automatic Valve Gear, Marshall, Sons, and Company's Traction Engine with, 24, 26
Aveling and Porter's Winding Drum for Traction Engines, 443
Axles, Locomotive Crank, 289, 348
Axles, Radial, Larsens Tramcar with, 186
Bagnall's Governor and Throttle Valve, 5
Bagnall's Tramway Locomotive, 17
Ballast and Circulating Pump, The Pulsometer as a, 413
Barff Process for the Protection of Iron, The, 441
Barometrical Governor, Guibal Fan with, 354, 355
Bars, Locomotive Guide, 95, 96
Bazalgette's Proposed High-Level Bridge over the Thames, 50, 56
Belt Screws, Sonnenthal's, 69
Bending Moments upon a Beam, Maximum, 63
Slowing Fan and Surface Condenser of the Torpedo Launch " Acheron," 92
Beat, Yarrow's Torpedo; Indicator Diagrams, 308, 309
Boats, Small, Herreshoff's Portable Engine for, 264
Boiler-Drilling Machine, Harvey's, 136
Boiler and Engine of the River Steamboat " Clermont," 1807, 337
Boiler and Engine, Ruston, Proctor, and Company's Vertical, 16
Boiler Explosion, The Halifax, 348
Boiler Explosion, The Stoneclough, 37, 146
Boiler-Makers, Howson and Wilson's Heating Furnaces for, 358
Boiler, Multitubular, and Watts' Three-Cylinder Engine, 301
Boiler, Smith's Double-Chambered Vertical, 69
Boiler, Tubular, Sulzer Brothers', with Ten-Brink Firegrate, 175
Boiler of the Tug-Boat " Victor," The, 233
Boiler, Webb's Steel Locomotive; London and North- Western Railway, 257
Boilers of the Yacht ' Wanderer," Steele and Company's, 472
Bradford, The Explosion of a Dye Kettle at, 459
Brake, The Westinghouse Automatic, 55, 74, 76
Breitfeld, Danek, and Company's Pumping Engines at the Vienna Auxiliary Water Works, Pottschach, 432, 433
Bridge at the El Infernillo; The Callao, Lima, and Oroya Railway, 46
Bridge over the River Nile at Koh, 132, 144, 145
Bridge near Sacrupe, Usuta; The Callao, Lima, and Oroya Railway, 104
Bridge, The Severn, and Railways, 315, 318, 319, 32.2
Bridge over the Zwartkops River, 477
Bridges over Dock Entrances ; The Harbour Improvement Works at Antwerp, 486, 487
Bunket and Grab, Priestman Brothers' Self-Acting Crane with, 129
Bullion, Resning House for Inspecting and The Cerro de Pasco Mining District, Peru, 297
Burgess Sheaf-Binding Apparatus, 28
Cable, Laying the Marseilles-Algiers, 493, 494
Cail's Six-Coupled Tank Locomotive, 494
Calendering Machinery, Voith's, 392, 393
CALLAO, LIMA, AND OROYA RAILWAY, TILE:
Anchi Viaduct; Rio Rimac, 46
Cacray, near the Rio Blanco, 105
Challapa Viaduct, The, 47
El Infernillo and Bridge, 46
Paras Valley, The, 47
Plan and Section of Railway, 46
Tunnel Entrance, Standard Type of, 47
Usuta; Bridge near Sacrupe, 104
Valley of the Rio Riman, 104
Viaduct over the Rio Copa and Entrance to Tunnel, 105
Canadian Railways, 296, 481
Captain Eads' Port on the River Mississippi, 362, 363
Capture of the Peruvian Ironclad "Hussnar," The, 455, 476
Carriage, Second-Class, for the Western Railway of France, 170
Centrifugal Milk-Skimming Machine, Lefeidt's, 21, 22
Centrifugal Pumping Engines, Gwynne's, of the BA. "Gallia," 450
CERRO DE PASCO MINING DISTRICT, PERU, THE Cerro de Pasco Covered with Snow, 425
Eighty-Stamp Mill for Reducing Silver Ores, 359
Group of Indian Ore Dressers, 429
Group of Native Miners, 297
Hacienda Poma Cocha, The, 428
Hacienda de San Juan, The,428
Loading Ores at the Mines for Transportation to Mills, 428
Map of the Cerro de Pasco alining District, 304
Mining in Open Cut, Working Two Benches, 297
Resning House for Inspecting and Working Bullion, 297
Scene near Cerro de Pasco ; Transporting Edge Runners, 429
Scene at Mines, 297
Town of Cerro de Pasco, The, 425
"Chancellor Livingston," River Steamboat, Engine of the, 337
Chandler's Coupling for Railway Wagons, 413
Circular Saws, Lakemans Guard for, 446
Circular Slide Valve, Webb's, 443
Circulating and Ballast Pump, The Pulsometer as a 413
"Clermont," 1807, River Steamer, Engine and Boiler of the, 337
Clod Crusher, Randell's, 35
Coal Shipping Machinery, Smith's, 373
Coal Wagons, Thomson's Hydraulic Tip for, 204, 205
Colombia," s.s., The Rescue of the, 240, 241
Combined Dredger, Tug, and Fire Engine, 265
Compass, Severn's Tell-Tale Mariner's, 68
Compound Marine Engines, Redhead and Companys, for the s.s. "Dante" and "Petrarch," 380
Compounding of Locomotive Engines, The, 18, 58, 59
Compressing Steel, Jones's Ingot Moulds for; Edgar Thomson Steel Works, Pittsburgh, 84, g85
Compressors, Hydraulic, for Gun Carriages, d461
Condenser, Surface, and Blowing Fan of the Torpedo Launch "Acheron," 92
Condensers at the Redington Quicksilver Works; Treatment of Mercury in North California, 482
Controlling the Rakes of Reaping Machines, Howard and Bousfleld's Apparatus for, 447
Couplings, Hose, Supports for ; The Westinghouse Brake, 76
Cowper's Regenerative Hot-Blast Stove, 212, 213
Cramp and Sons' Russian Cruiser the "Zabiaca," 416
Crane, Priestman Brothers', with Self-Acting Bucket and Grab, 129
Crank Axles, Locomotive, 289, 348
Crank-Pin Turning Machine at the London and North-Western Railway Works, Ci ewe, 260
Crankshafts, Forging, 137, 147
Crompton s Regulator for the Electric Light, 17
Cunard Steamer Gallia," Thomsons Engines of the, 220, 221, 228
Current Galvanometer, An Internal, 201
Curves, Speed, 344, 345
"Dante" and "Petrarch" s.s., Redhead and Company's Compound Marine Engines for the , 383
Demenge's Portable Engine, 340
Dennis and Company's Hydraulic Valve, 13
Dennis's Door Handle Fastening. 36
Denny Brothers' Light-Draught Paddle-Wheel Ferry Steamer. 377
Design, Traction Engine, 116
Detector, Acoustical Firedamp, 213
Dock Entrances, Bridges over ; The Harbour Improvement Works at Antwerp. 486, 487
Double-Chambered Vertical Boiler, Smith's, 69
Double Lathe for Disc Railway Wheels, Fetu and Deliege's, 148
Dredger, Tug, and Fire Engine, Hawks, Craw-shay, and Sons', Combined, 265
Dredging Machine at the Antwerp Improvement Works, Hersent and Couvreus, 389
Dredging, Steam, in India, 153, 156, 157
Drilling Machine for Rails, Fetu and Delis Multiple, 1.95
Driver for Lathes, Timmins', 379
Drop Hammer, Hasse's, 396
Drum and Beater, Garrett's Thrashing, 32
Drum Guard or Thrashing Machines, Clayton and Shuttleworth's, 477
Drum Guard for Thrash ng Machines, Fisos, 36
Drum Guard for Thrashing Machines, Ituton, Proctor, and Company's, 446
Drum, Winding, Aveling and Porter's, for Traction Engines, 443
Drummond's 'Tank Locomotive for the North British Railway, 451
Drying Apparatus, Wilson's, 378
Durand and Chapitel's Pulveriser, 97
Dye Kettle, Explosion of a, at Bra ford,459
Dynamo-Electric Machine for Transmission of Fewer, The Gramme, 412
Dynamo-Electric Machines; Lighting by Electricity, 64, 101, 174, 327, 372
Eads' Port on the River Mississippi. 362, 363
Early American Marine Engines, 337
Eighty-Stamp Mill for Reducing Silver Ores at the Cerro de Pasco Mines, Peru, 359
El Infernillo and Bridge; The Callao, Lima, and Oroya Railway, 46
"El Plata" and "Los Andes," Argentine Iron'clad Monitors, The, 12
Electric Currents, Obach's Tangent Galvanometer for Measuring, 351
Electric Illumination, Nitrous Acid produced by 232
Electric Light, Cromptos Regulator for the, 17
Electricity, Lighting by, 64, 101, 174, 327, "72
Electrometer Key, A New, 194
Elevator, Hagges' Water, 296
Engine and Boiler of the River Steamboat " Clermont," 1807, 337
Engine and Boiler, Ruston, Proctor, and Company's Vertical, 16
Engine, Demenge's Portable, 340
Engine Design, Traction, 116
Engine, Everitt, Adams, and Company's 10-Horse Steam-Ploughing, 208
Engine, Garrett's Portable, 25, 26
Engine, Herreshoff's Portable, for Small Boats, 264
Engine Indicator, A New Steam, 117
Engine Indicators, Steam, 403, 431
Engine, Marshall, Sons, and Company's 14-Horse Portable, with Automatic Expansion Gear, 4
Engine of the River Steamboat "Chancellor Livingston," 337
Engine, Ruston, Proctor, and Company's Horizontal Condensing. 5
Engine, Ruston, Proctor, and Company's Horizontal Non-Condensing, 465
Engine, Traction, Marshall, Sons, and Company's, with Automatic Valve Gear, 24, 26
Engine, Virck's Horizontal, with Automatic Expanson Gear, 187, 190
Engine, Watts' Three-Cylinder, and Multitubular Boiler, 301
Engineering Precedents, 334, 373, 374, 426, 427, 494, 495
Engines, Compound Marine, Redhead and Company's, for the s.s. "Dante" and "Petrarch," 380
Engines of the Cunard Steamer "Gallia," Thom-son's, 220, 221, 228
Engines, Early American Marine, 337
Engines, Gwynne's Centrifugal Pumping, of the s.s. "Gallia," 450
Engines, Locomotive, The Compounding of, 18, 58, 59
Engines, Portable and Fixed, 443
Engines, Pumping, Breitfeld, Danek, and Company's, at the Vienna Auxiliary Water Works, Pottschach, 432,433
Engines, Pumping, at the Works of the Holly Company, 366, 376
Engines, Rubber-Tvred Traction, 149
Engines of the Yacht " Wanderer," Perkins' System, 469, 472
Equatorial Telescope, Grubb's Eight-Inch, 278
Equilibrium Governor, Shanks', 28
Erection of the Paris Exhibition Buildings, Scaffolding Employed in the, 108, 109, 182, 183
Everitt, Adams and Company's 10-Horse Steam Ploughing Engine, 208
Excavator, The Fouracres, 153, 156, 157
Exhaust Steam, Utfdsing, 227
Exhibition Buildings, Paris, Scaffolding Employed in the Erection of the, 108, 109, 182, 183
Explosion on Board the Tug-Boat " Victor," 233
Explosion of a Dye Kettle at Bradford, The, 459
Explosion, The Halifax Boiler, 348
Explosion, The Stoneclough Boiler, 37,146
Express Locomotive for the Alta Italia Rail way, 420, 421
Extinction of Fire, Injector Hydrants for, 80
Facing Hornblocks, Webb's Machine for, at the London and North-Western Railway Works, Crewe, 261
Fan. Guibal, with Barometrical Governor, 354, 355
Fastening, Dennis's Door Handle, 36
"Fenton" and "Ridge Park," The, Austin and Hunter's Screw Colliers, 490
Ferry Steamer, Denny Brothers' Light-Draught Paddle-Wheel, 377
Fetu and DeliDouble Lathe for Disc Railway Wheels, 148
Fetu and Delidge's Multiple Drilling Machine for Rails, 195
Fire-Damp Detector, Acoustical, 213
Fire Engine, Tug, and Dredger. Hawks, Craw-shay, and Sons' Combined, 265
Fire Extinction, Injector Hydrants for, 80 Fire-Hole Machine, Webb's, 266
Fison's Drum Guard for Thrashing Machines, 36
Foot-Warmers, Apparatus for Heating; Western Railway of France, 225
Forging Crankshafts, 137, 147
Fouracres Excavator, The, 153, 156, 157
Furnace, Livermore's Reverberatory Roasting and Reducing, at the Redington Quicksilver Works; Treatment of Mercury in North California, 408, 409, 464
Furnace, Piat's Oscillating, 397
Furnace, Sarah, Lambert and Gordon's, Ironton, Ohio, U.S.A.., 162,163
Furnaces for Boiler Makers, Howson ana Wilson's Heating, 353
Furze Masticator, McKenzie and Sons, 446
" Gallia," Cunard Steamer, Thomson's Engines of the, 220, 221, 228
"Gallia," s.sGwynne's Centrifugal Pumping Engines of the, 450
Galvanometer, An Internal Current, 201 Galvanometer, Obach's Tangent, 351
Ganz and Company's Roller Mill, 29
Garrett's Portable Engine, 25, 26
Garrett and Sons' Safety Valves for Pumps of Portable Engines, 443
Garrett's Thrashing Machine, Drum, and Beater, 32
Gas Producer, The Tessi, 458
Gas Washers and Scrubbers, 43, 314
Gas, Water, The Manufacture of, 344
Gear, Automatic Expansion, Virck's Horizontal Engine with, 187, 190
Gear, Heathoru's Steering, 272
Gear, Wilson's Steam Steering, 282
Gear to Indicators, 349, 387
Glass Sleepers, Toughened, 272
Goods Locomotive for the Paris, Lyons, and Mediterranean Railway, 65, 68, 72
Gorse Masticator, McKenzie and Sons', 446
Governor, Barometrical, Guibal Fan with, 354, 355
Governor, Shanks' Equilibrium, 28
Governor and Throttle Valve, Bagnall's, 5
Gramme Dynamo-Electric Machine, The, 64, 327, 412
Gramme Dynamo-Electric Machine for Transmission of Power, The, 412
Greenwood and Batley's Intersecting Spreader for Waste Silk, 283
Greenwood and Batley's Testing Machine at the University College, London, 214, 245
Grubb's Eight-Inch Equatorial Telescope, 278
Guibal Fan with Barometrical Governor, 354, 355
Guide Bars, Locomotive, 95, 96
Gun Carriages, Hydraulic Compressors for, 461
Gwynne's Centrifugal Pumping Engines of as. " Gallia," 450
Hacienda Poma Cocha ; The Cerro de Pasco Mining District, Peru, 428
Hacienda de San .Yuan; The Cerro de Pasco Mining District, Peru, 428
Haggas' Water Elevator, 296
Halifax Boiler Explosion, The, 348
Hall's Portable Stone Breaker, 36
Handle Fastening, Dennis's Door, 36
Harbour Improvement Works, Antwerp, 279, 286, 336, 385, 389, 486, 487
Harbour Improvements, New York, 367
Harrow, Nicholson's, 36
Harvey's Boiler Drilling Machine, 136
Hasse's Drop Hammer, 396
Hawks, Crawshay, and Sons' Combined Dredger, Tug, and Fire Engine, 265
Heathers Steering Gear, 272
Heating Foot-Warmerse Apparatusfor; Western Railway of France, 225
Heating Furnaces for Boiler Makers, 358
Herreshoff's Portable Engine for Small Boats, 264
High-Level Bridge over the Thames, Bazalgette's 50, 56
High Temperatures, Iron and Steel at, 283, 284, 309, 310, 329
Horizontal Condensing Engine, Ruston, Proctor, and Company's, 5
Horizontal Engine, Virck's, with Automatic Expansion Gear, 187, 190
Horizontal Non-Condensing Engine, Ruston, Proctor, and Company's, 465
Hornblocks, Webb's Machine for Facing, at the London and North-Western Railway Works, Crewe, 261
Hose Couplings, Supports for ; The Westinghouse Brake, 76
Hot-Blast Stove, Cowper's Regenerative, 212, 213
Howard's Automatic Sheaf Binder, 8
Howard and Bousfleld'e Apparatus for Con trolling the Rakes of Reaping Machines, 447
Howard's Reaper, 447
Howson and Wilson's Heating Furnaces for Boiler Makers, 358
"Huascar," The Peruvian Ironclad, 12 "Huascar," Peruvian Ironclad, The Capture of 455, 476
Humphries' Portable Engine, Wheel of, 443
Hyde Park Locomotive Works, Glasgow, Messrs. Neilson and Company's, Plan of, 124
Hydrants, Injector, for Fire Extinction, 80
Hydraulic Compressors for Gun Carriages, 461
Hydraulic Tip for Coal Wagons, Thomson's, 204, 205
Hydraulic Valve, Dennis and Company's, 13
Ice-Making Machinery, 13
Illumination, Electric, Nitrous Acid produced by, 232
Improvement Works at the Port of Antwerp, 279, 286, 336, 385, 389, 486, 487
Improvements, New York Harbour, 367
India, Steam Dredging in, 153, 156,157
Indian Ore Dressers, Group of ; The Cerro de Mining District, Peru, 429
Indicator Diagrams from Torpedo Launch Engines, 308, 309
Indicator, A New Steam Engine, 117
Indicators, Giving Motion to, 349, 387
Indicators, Steam Engine, 403, 431
Ingot Moulds for Compressing Steel, Jones's; Edgar Thomson Steel Works, Pittsburgh, 81, 85
Injector Hydrants for Fire Extinction, 80 Intermittent Syphons, Self-Acting, 224
Internal Current Galvanometer, An, 201 Intersecting Spreader for Waste Silk, Green wood and Batley's, 283
Iron, The Barff Process for the Protection of, 441
Iron, The Microscopic Investigation of, 88, 89
Iron and Steel, The Application of the Spectro scope to the Analysis of, 141
Iron and Steel at High Temperatures, 283, 284, 309, 310, 329
Ironclad Monitors, Argentine, The "El Plata" and "Los Andes," 12
Ironclad, Peruvian, The " Huascar," 12
Ironclad, Peruvian, The "Huescar," Capture of the, 455, 476
Jones's Ingot Moulds for Compressing Steel; Edgar Thomson Steel Works, Pittsburgh, 84, 85
Kneading and Mixing Machines, Pfleiderer's, 483
Kennedy's Spiral Punches, Thomson, Sterne, and Company's Machine for Shaping and Sharpening, 237
Key, A New Electrometer, 194
Koh, Bridge over the River Nile at, 132, 144, 145
Lakeman's Guard for Circular Saws, 446
Lambert and Gordon's Sarah Furnace, Ironton, Ohio, U.S.A., 162, 163
Larsen's Tramcar with Radial Axles, 186
Lathe, Double, for Railway Wheels, Fetu and Deli, 148
Lathes, Timmins', Driver for, 379
Launch, Yarrow's Torpedo ; Indicator Diagrams, 308, 309
Laying the Marseilles-Algiers Cable, 493, 494
Lefeldt's Centrifugal Milk-Skimming Machine, 21, 22
Light-Draught Paddle-Wheel Ferry Steamer, Denny Brothers', 377
Light, Electric, Crompton's Regulator f or the, 17
Lighting by Electricity, 64, 101, 174, 327. 372
Lineal Scale, Mr. Mansel's ; The Speed of Steam Vessels, 468
Livermore's Reducing and Roasting Furnace at the Redington Quicksilver Works; Treatment of Mercury in North California, 408, 409, 464
Livesey Washers, The; Gas Washers and Scrubbers, 314
Llandulas, New Viaduct at, for the London and North-Western Railway, 333
Loading Ores at the Mines for Transportation to Mills; The Cerro de Pasco Mining District, Peru, 428
Locomotive, Bagnall's Tramway, 17
Locomotive Boiler, Webb's Steel; London and North-Western Railway, 257
Locomotive, Cail's Six-Coupled Tank, 491
Locomotive Crank Axles, `289, 348
Locomotive, Drummond's Tank, for the North British Railway, 451
Locomotive Engines, The Compounding of, 18, 58,59
Locomotive, Express, for the Alta Italia Railway, 420, 421
Locomotive, Goods, for the Paris, Lyons, and Mediterranean Railway, 65, 68, 72,
Locomotive Guide Bars, 95, 96
Locomotive, Passenger; The Southern Railway of Austria, 200, 201
Locomotive Works, Messrs. Neilson and Com- pany's Hyde Park, Glasgow, Plan of, 124
Lontin Dynamo-Electric Machine, The, 174
Machine, Dredging, at the Antwerp Improvement Works, Hersent and Couvreux's, 389
Machine Drum and Beater, Garrett's Thrashing, 32
Machine for Facing Hornblocks, Webb's, at the London and North-Western Railway Works, Crewe, 261
Machine, Harvey's Boiler-Drilling, 136
Machine, Ransomes, Sims, and Head's Combined Thrashing and Straw-Chopping, 20
Machine, Robinson and Son's Stone-Dressing, 300
Machine for Shaping and Sharpening Kennedy's Spiral Punches, Thomson, Sterne, and Company's, 237
Machine, Testing, Greenwood and Batley's, at the University College, London, 244, 245
Machine Tools, Webb's, at the London and North-Western Works, Crewe, 260, 261
Machine, Wood's Mowing, 9
Machinery, Ice-Making, 13
Machinery, Smith's Coal Shipping, 373
Machinery, Voith's Calendering, 392, 393
Machines, Dynamo-Electric; Lighting by Electricity, 64, 101, 174, 327, 372
Machines, Pfleiferer's Mixing and Kneading, 483
Machines, Reaping, Howard and Bousfleld's Apparatus for Controlling the Rakes of, 447
Machines, Richards and Atkinson's Reversible Moulding, 224
Machines, Thrashing, Ruston, Proctor, and Com- pany's Drum Guard for, 446
Machines, Wood-Converting; Engineering Precedents, 333, 334, 373, 374, 426, 427, 494, 495
McKenzie and Sons' Gorse Masticator, 446
Mansel's Lineal Scale; The Speed of Steam Vessels, 468
Manufacture of Water Gee, The, 384
Map of the Cerro de Pasco Mining District, Peru, 304
Map of the Midland Railway of Canada, 481
M 63 of the Mississippi River; Port Eads, 362,3
Marine Engines, Compound, Redhead and Company's, for the s,s, " Dante" and "Petrarch," 380
Marine Engines, Early American, 337
Mariner's Compass, Severn's Tell-Tale, 68
Marseilles-Algiers Cable, Laying the, 493, 494
Marshall, Sons, and Company's 14-Horse Portable Engine with Automatic Expansion Gear, 4
Marshall, Sons, and Company's Traction Engine with Automatic Valve Gear, 24, 26
Mathematical Notes on some Questions relating to Ordnance, 1
Matter, Radiant, 166,167, 168, 187, 188
Maximum Bending Moments upon a Beam, 63
Measuring Electric Currents, Obach's Tangent Galvanometer for, 351
Mercury in North California, The Treatment of, 240, 331, 408, 409, 464
Meriten's Magneto-Electric Machine, 372
Microphone, Sedlacek's, 205
Microscopic Investigation of Iron, The, 88, 89
Midland Railway of Canada, Map of the, 481
Milk-Skimming Machine, Lefeldt's Centrifugal, 21, 22
Mill, Eighty-Stamp, for Reducing Silver Ores at the Cerro de Pasco Mines, Peru, 359
Mill, Roller, Ganz and Company's, 29
MINING DISTRICT, THE CERRO PE PASCO, 1 Cerro de Pasco Covered with Snow, 4% Eighty-Stamp Mill for Reducing Silv 359
Group of Indian Ore Dressers, 429 Group of Native Miners, 297
Hacienda Poma Cocha, The, 428 Hacienda de San Juan, The, 42i Loading Ores at the Mines for Transp to Mills, 428
Map of the Cerro de Pasco Defining Dist Mining in Open Cut, Working Two B 297
Refining House for Inspecting and Bullion, 297
Scene near Cerro de Pasco ; Transporti Runners, 429
Scene at Mines, 297
Town of Cerro de Pasco, The, 425
Motion to Indicators, Giving, 349, 387
Moulding Machines, Richards and At Reversible, 224
Moulds for Compressing Steel Ingots, , Edgar Thomson Steel Works, Pittsbn 85
Mowing Machine. Wood's, 9
Mowing and Reaping Machines, 8, 9, 446
Multiple Drilling Machine for Rails, F Delidge's, 195
Multitubular Boiler and Three-Cylinder Watts', 301
Navies, The South American, 12
Neilson and Company's Hyde Park Loc Works, Glasgow, Plan of, 124
New York Harbour Improvements, 367 Nicholson's Harrow, 36
Nile, River, Bridge,over the, at Koh,132,
Nitrous Acid produced by Electric Ilium. 232
North British Railway, Drummond's Tan' motive for the, 451
North British Railway Works, Cowlairs, O Plan of the, 125
North California, The Treatment of Mer 240, 331, 408, 409, 464
Notes, Mathematical, on some Questions to Ordnance, 1
Obach's Tangent Galvanometer, 351
Ordnance, Mathematical Notes on some Qc relating to, 1
Ores, Loading, at the Mines; The Cerro 0 Mining District, Peru, 428
Oscillating Furnace, Piste Portable, 397
Paddle-Wheel Ferry Steamer, Denny B. Light-Draught, 377
Parac Valley; The Callao, Lima, and Oro; way, 47
Paris Exhibition Buildings, Scaffolding En in the Erection of the. 108, 109, 182, 181
Paris, Lyons, and Mediterranean Railway Locomotive for the, 65, 68, 72
Passenger Locomotive; The Southern 1 of Austria, 200, 201
Perkins' Engines of the Yacht " Wandere 472
Permanent Way, Wood's Wrought-Iron, Peruvian Ironclad, "Huasear," The, 12
Peruvian Ironclad " Huascar," The Ca the, 455, 476
" Petrarch" and " Dante," s.s., Redhy Company's Compound Engines for the Pfleiderer'a Mixing and Kneading k 483
Phenomena, Telephonic, 193
Photometer, A Retention-Image, 440
Plat's Portable Oscillating Furnace, 397
Pipes, Testing Water, 178
Plan, General, of the Severn Bridge ai ways, 315
Plan of Messrs. Neilson and Company Park Locomotive Works, Glasgow, 12
Plan of the North British Railway Cowlairs, Glasgow, 125
Plan and Section of the Callao, Lima, a Railway, 46
Plan of the Works of the Steel Companand, Newton, near Glasgow, 128
Ploughing Engine, Everitt, Adams, pany's 10-Horse Steam, 208
Pneumatic Sewerage System, Sher Sturgeon's Air Compressor, 51, 52
Poma Cocha Hacienda; The Cerro Mining District, Peru, 428
Port of Antwerp, Improvement Wor' 279, 286, 336, 385, 389, 486, 487
Port Eads on the River Mississippi, 367
Portable Engine, Demenge's, 340
Portable Engine, Garrett's, 25, 26
Portable Engine, Humphries' Wheel o
Portable Engine, Marshall, Sons, and 14-Horse, with Automatic Expansior
Portable Engine for Small Boats, He 264
Portable and Fixed Engines, 443
Portable Stone Breaker, Hall's, 36
Pound of Steam, The Work in a, 439
Power, The Gramme Dynamo-Electric for the Transmission of, 412
Precedents, Engineering, 334, 373, 374 491. 495
Priestman Brothers' Steam Crane will ing Bucket and Grab, 129
Propellers, Screw, 40, 71, 291, 404
Prosecution for Unseaworthiness, 75
Protection of Iron, The Barff Process Pseudophone, The, 194
Pulsometer, The, as a Ballast and Pump, 413
Pulverisor, Durand and Chapitel's, 9i Pumping Engine, Breitfeld, Danek, pany's, at the Vienna Auxiliary We Pottschach, 432, 433
Pumping Engines, Gwynne's Centrifugal, of the s.s. Gallia," 450
Pumping Engines at the Works of the Holly Company, 366, 376
Pumps, Air, 347
Pumps of Portable Engines, Garrett and Sons' Safety Valve for, 443
Punches, Kennedy's Spiral, Thomson, Sterne, and Company's Machine for Shaping and Sharpening, 237
Quartering Machine at the London and North-Western Railway Works, Crowe, 260
Quicksilver Works, Redington, Condensers at the ; Treatment of Mercury in North California, 482
Quicksilver Works, Redington, Livermore's Reducing and Roasting Furnace at the ; Treatment of Mercury in North California, 408, 409, 464
Radial Axles, Larsen's Tramcar with, 186 Radiant Matter, 166, 167, 168,187, 188
Rails, Fetu and DeliMultiple Drilling Machine tor, 195
Railway, Alta Italia, Express Locomotive for the, 420, 421
Railway, The Callao, Lima, and Oroya (See Callao, Lima, and Oroya Railway, The)
Railway, The London and North-Western, New Viaduct for, at Llandulas, 333
Railway, The North British, Drummond's Tank Locomotive for, 451
Railway, Paris, Lyons, and Mediterranean, Goods Locomotive for the, 65, 68, 72
Railway, The Severn, and Bridge, 315, 318, 319, 122
Railway, The Southern of Austria, Passenger Locomotive for the, 200, 201
Railway Wagons, Chandler's Coupling for, 413 Railway, The Western of France, Second-Class Carriage for the, 170
Railway Wheels, Disc, Fetu and Delis Double Lathe for, 148
Railway Works, North British, Cowlairs, Glasgow, Plan of the, 125
Railways, Canadian, 296, 481
Randell's Clod Crusher, 35
Ransomer, Sims, and HIead's Combined Thrashing and Straw Chopping Machine, 20
Reaping Machines, Howard and Boustleld's Apparatus for Controlling the Rakes of, 447
Reaping and Mowing Machines, 8, 9, 446
Redhead and Company's Compound Marine Engines for the s,s. "Dante" and "Petrarch," 380
Reducing and Roasting Furnace, Livermore's, at the Redington Quicksilver Works; Treatment of Mercury in North California, 408, 409, 464
Reducing Silver Ores, Eighty-Stamp Mill for, at the Cerro de Pasco Mines, Peru, 359
Relining House for Inspecting and Working Bullion; The Cerro de Pasco Mining District, Peru, 297
Regenerative Hot-Blast Stove, Cowper's, 212, 'L13
Regulator for the Electric Light, Cromptoti s, 17 Rescue of the s.s. " Colombia," The, 240, 241
Retention-Image Photometer, A. 440
Reversible Moulding Machine, 224
Richards and Atkinsoti s Reversible Moulding Machines, 224
"Ridge Park" and "Fenton," The, Austin and Hunter's Screw Colliers, 490
Rio Blanco, Cacray, near the; The Callao, Lima, and Oroya Railway, 105
Rio Cope, Viaduct over the, and Entrance to Tunnel No.37; The Callao, Lima, and Oroya Railway, 105
Rio Rimac, Valley of the: The Callao, Lima, and Oroya Railway, 104
River Nile at Rob, Bridge over the, 132, 144, 145
River Thames, Bazalgette's Proposed High Level Bridge over the, 50, 56
River Zwartkops, Bridge over the, 477
Roasting Furnace, Livermore's Reverberatory, at the Redington Quicksilver Works Treatment of Mercury in North California, 464
Robinson's and Son's Stone-Dressing Machine, 300
Roller Mill, Ganz and Company's, 29
Rubber-Tyred Traction Engines, 149
Russian Cruiser, Cramp and Sons', The, "Zabiaca," 416
Ruston, Proctor, and Company's Drum Guard for Thrashing Machines, 446
Ruston, Proctor, and Company's Horizontal Condensing Engine, 5
Ruston, Proctor, and Company's Horizontal Non-Condensing Engine, 465
Ruston, Proctor, and Company's Vertical Engine and Boiler, 16
Safety Valve for Pumps of Portable Engines, Garrett and Sons', 443
San Juan, The Hacienda de; The Cerro de Pasco Mining District, Peru, 428
Sarah Furnace, Lambert and Gordon's, Ironton, Ohio, U.S.A., 162, 163
Saws, Circular, Lakeman's Guard for, 446
Scaffolding Employed in the Erection of the Paris Exhibition Buildings, 108, 109,182, 183
Scene near Cerro de Pasco; The Cerro de Pasco Mining District, Peru, 429
Scene at Mines; The Cerro de Pasco Mining District, Peru, 297
Screw Colliers, Austin and Hunter's, The " Fenton" and " Ridge Park," 490
Screw Propellers, 40, 71, 291, 404
Screw Steamer "Arizona," The Accident to the, 437
Screw Steamer" Colombia," The Rescue of the, 240,241
Screws, Sonnenthal's Belt, 69
Scrubbers and Washers, Gas, 43, 314 Second-Class Carriage for the Western Railway of France, 170
Sedlacek's Microphone, 205
Self-Acting Intermittent Syphons, 224
Sensible Warmth of the Air, The, 200
Severn Bridge and Railways, The, 315, 318, 319, 322
Severn's Tell-Tale Mariner's Compass, 68
Sewerage System, Shone's Pneumatic, and Sturgeon's Air Compressor, 51, 52
Shanks' Equilibrium Governor, 28
Sheaf Binder, Howard's Automatic, 8 Sheaf-Binding Apparatus, Burgess's, 28
SHOW, SMITHFIELD CLUB, THE:
Drum Guard for Thrashing Machines, Ruston, Proctor, and Company's, 446
Drum Guard for Thrashing Machines, Clayton and : huttleworth's, 477
Guard for Circular Saws, Lakeman's, 446
Horizontal Non-Condensing Engine, Ruston, Proctor, and Company's, 465
Mowing and Reaping Machines, 446
Portable and Fixed Engines, 443
Rakes of Reaping Machines, Howard and Bousfleld's Apparatus for Controlling, 447
Safety Valve for Pumps of Portable Engines, Garrett and Sons', 443
Slide Valve, Webb's Circular, 443
Wheel of Humphries' Portable Engine, 443
Winding Drum for Aveling and Porter's Traction Engine, 443
Siemens' Dynamo-Electric Machines, 101, 327
Silver Ores, Eighty-Stamp Mill for Reducing, at the Cerro de Pasco Mines, Peru, 359
Six-Coupled Tank Locomotive, Call's, 494
Skimming Milk by Centrifugal Action, 21, 22 Sleepers, Toughened Glass, 272
"Slurry," Wilson's Apparatus for Drying, 378 Small Boats, Herreshoff's Portable Engine for, 264
Smith's Coal Shipping Machinery, 173
Smith's Double-Chambered Vertical Boiler, 69
Sonnenthal's Belt Screws, 69
South American Navies. The, 12
Southern Railway of Austria, Passenger Locomotive for the, 200, 201
Spectroscope, The Application of, to the Analysis of Steel and Iron, 141
Spectroscopes, Variable Scales for, 231, 245
Speed Curves, 344, 345
Speed of Steam Vessels, The, 467, 468
Spiral Punches, Kennedy's, Thomson, Sterne, and Company's Machine for Shaping and Sharpening, 237
Spreader, Intersecting, for Waste Silk, Greenwood and Batley's, 283
Standard Type of Tunnel Entrance; The Callao, Lima, and Oroya Railway, 47
Steam Crane with Self-Acting Bucket and Grab, Priestman Brothers', 129
Steam Dredging in India, 153, 156, 157
Steam Engine Indicator, A New, 117
Steam Engine lndicators,403, 431
Steam Hammers, Hasse s Drop, 396
Steam Ploughing Engine, Everitt, Adams, and Company's 10-Horse, 208
Steam Steering Gear, Wilson's, 282
Steam, Utilising:Exhaust, 227
Steam Vessels, 'The Speed of, 467, 468
Steam, The Work in a Pound of, 439
Steamer, Ferry, Denny Brothers' Light-Draught Paddle-Wheel, 377
Steel Company of Scotland, Plan of the Works of the, Newton, near, Glasgow, 128
Steel and Iron at IIigh Temperatures, 283, 284, 309, 310, 329
Steel, Jones's Ingot Moulds for Compressing ; Edgar Thomson Steel Works, Pittsburgh, 84, 85
Steel Locomotive Boiler, Webb's; London and North-Western Railway, 257
Steele and Company's Engines of tho Yacht " Wanderer," 469, 472
Steering Gear, Heathorti s, 272
Stone-Breaker, Durand and Chapitel's, 97 Stone-Breaker, Hall's Portable, 36
Stone-Dressing Machine, Robinson and Son's, 300
Stoneclough Boiler Explosion, The, 37, 146
Stove, Cowper's Regenerative Hot-Blast, 212, 213
Straw-Chopping and Thrashing Machine, Ran-somas, Sims, and Head's Combined, 20
Sturgeon's Air Compressor and Shone's Pneumatic Sewerage System, 51, 52
Sulzer Brothers' Tubular Boiler with Ten-Brink Firegrate, 175
Supports for Hose Couplings; The Westinghouse Brake, 76
Surface Condenser and Blowing Fan of the Torpedo Launch "Acheron," 92
Syphons, Self-Acting Intermittent, 224
Tangent Galvanometer, Obach's, 351
Tank, Air, for Goods Locomotive for the Paris, Lyons, and Mediterranean Railway, 68
Tank Locomotive, Cail's Six-Coupled, 494
Tank Locomotive, Drummond's, for the North British Railway, 451
Telephonic Phenomena, 193
Telescope, Grubb's Eight-Inch Equatorial, 278
Tell-Tale Mariner's Compass, Severn's, 68
Ten-Brink Firegrate, Sulzer Brothers' Tubular Boiler with, 175
Tessid Gas Producer, The, 468
Testing Machine, Greenwood and Batley's, at the University College, London, 244, 245
Testing Water Pipes, 178
Thames, Bazalgette's Proposed High - Level Bridge over the, 50, 56
Thomson, Sterne, and Company's Machine for Shaping and Sharpening Kennedy's Spiral Punches, 237
Thomson's Engines of the Cunard Steamer "Gallia," 220, 221, 228
Thomson's Hydraulic Tip for Coal Wagons, 204, 205
Thrashing Machine Drum and Beater, Garrett's, 32
Thrashing Machines, Clayton and Shuttleworth's Drum Guard for, 477
Thrashing Machines, Fison's Drum Guard for, 36
Thrashing Machines, Ruston, Proctor, and Company's Drum Guard for, 446
Thrashing and Straw-Chopping Machine, Ransomes, Sims, and Head's Combined, 20
Throttle Valve and Governor, Bagnall's, 5 Timmins' Lriver for Lathes, 379
Tip for Coal Wagons, Thomson's Hydraulic, 204,1
Tools, Machine, at the London and North-Western Railway Works, Crewe, 260, 266
Torpedo Launch Acheron," Blowing Fan and Surface Condenser of the, 92
Torpedo Launch Engines, Yarrow's; Indicator Diagrams from, 308, 309
Toughened Glass Sleepers, 272
Town of Cerro de Pasco; The Cerro de Pasco Mining District, Peru, 425
Traction Engine Design, 116
Traction Engine, Marshall, Sons, and Company's, with Automatic Valve Gear, 24, 26
Traction Engines, Aveling and Porter's Winding Drum for, 443
Traction Engines, Rubber-Tyred, 149
Tramcar, Larsen's, with Radial Axles, 186 Tramway Locomotive, Bagnall's, 17
Transmission of Power, The Gramme Dynamo-Electric Machine for, 412
Treatment of Mercury in North California, The, 240, 331, 408, 409, 464
Tubular Boiler with Ten-Brink Firegrate, Sulzer Brothers', 175
Tug-Boat "Victor," The Boiler of the, 233
Tug, Dredger, and Fire Engine, Hawks, Craw-shay, and Sons' Combined, 265
Turret of the Ironclad "Huascar," The, 476
Ucuta; Bridge near Sacrupe; The Callao, Lima, and Oroya Railway, 104
University College, London, Greenwood and Batley's Testing Machine at the, 244, 245
Unseaworthiness, Prosecution for, 75
Utilising Exhaust Steam, 227
Valley, The Parse; The Callao, Lima, and Oroya Railway, 47
Valley of the Rio Rimac; The Callao, Lima, and Oroya Railway,a04
Valve, Dennis and Company's Hydraulic, 13
Valve Gear. Automatic, Marshall, Sons, and Company's Traction Engine with, 24, 26
Valve, Throttle, and Governor, Bagnall's, 5 Valve, Webb's Circular Slide, 443
Valves, Safety, for Pumps of Portable Engines, Garrett and Sons', 443
Variable Scales for Spectroscopes, 231, 245
Vertical Boiler, Smith's Double-Chambered, 69
Vertical Engine and Boiler, Ruston, Proctor, and Company's, 16
Vessels, Steam The Speed of, 467, 468
Viaduct, Anchi; The Callao, Lima, and Oroya Railway, 46
Viaduct, The Challapa; The Callao, Lima, and Oroya Railway, 47
Viaduct over the Rio Copa, and Entrance to Tunnel No. 37; The Callao, Lima, and Oroya Railway, 105
Viaduct, New, at Llandulas, for the London and North-Western Railway, 333
" Victor," Tug-Boat, The Boiler of the, 233
Vienna Auxiliary Water Works, Pottschach, Breitfeld, Danek, and Company's Pumping Engines at the, 432, 433
Virek's Horizontal Engine with Automatic Expansion Gear, 187, 190
Voith's Calendering Machinery, 392, 393
Wagons, Coal, Thomson's Hydraulic Tip for, 204, 205
Wagons, Railway, Chandler's Coupling for, 413
"Wanderer," Yacht, Engines of the, Perkins' System, 469, 472
Warmth of the Air, The Sensible, 200
Washers, The Livesey ; Gas Washers and Scrubbers, 314
Washers and Scrubbers, Gas, 43, 314
Waste Silk, Greenwood and Batley's Intersecting Spreader for, 283
Water Elevator, Reggae', 296
Water Gas, The Manufacture of, 384
Water Pipes, Testing, 178
Water Works, Vienna Auxiliary, Pottschach, Breitfeld, Danek, and Company's Pumping Engines at the, 432, 433
Watts' Three-Cylinder Engine and Multitubular Boiler, 301
Webb's Circular Slide Valve, 443
Webb's Fire-Hole Machine, 266
Webb's Machine Tools at the London and North-Western Railway Works, Crewe, 260, 266
Webb's Steel Locomotive Boiler; London and North-Western Railway, 257
Western Railway of France, Apparatus for Heating Foot-Warmers for the, 225
Western Railway of France, Second-Class Carriage for the, 170
Westinghouse Automatic Brake, The, 13,74,76
Wheel of Humphries' Portable Engine, 443
Wheels, Disc Railway, Fetu and Deliege's Double
Lathe for, 148
Wilson's Drying Apparatus, 378
Wilson's Steam Steering Gear, 282
Winding Drum for Traction Engines, Aveling and Porter's, 443
Wood-Converting Machines; Engineering Precedents, 333, 334, 373, 374, 426, 427, 494, 495
Wood's Mowing Machine, 9
Wood's Wrought-Iron Permanent Way, 273
Work in a Pound of Steam, The, 439
Works, Neilson and Company's Hyde Park Locomotive, Glasgow, Plan of the, 124
Works, North British Railway, Cowlairs, Glasgow, Plan of the, 125
Works of the Steel Company of Scotland, Newton, near Glasgow, Plan of the, 128
Yacht " Wanderer," Engines of the, Perkins' System, 469, 472
Yarrow's Torpedo Boat; Indicator Diagrams, 308, 309
" Zabiaca, ' The Cramp and Sons' Russian Cruiser, 410
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
Shipping charges
US Shipments: Ebay will add $1.25 each additional items, there are a few exceptions.
Ebay Global shipping charges are shown. These items are shipped to Kentucky and forwarded to you. Ebay collects the shipping and customs / import fees. Refunds may be issued if you add multiple items to your cart and pay with one payment. For direct postage rates to these countries, send me an email. Shipping varies by weight.
Payment options
Payment must be received within 7 days. Paypal is accepted.
Terms and conditions
All sales are final. Returns accepted if item is not as described. Contact us first. No warranty is stated or implied. Please e-mail us with any questions before bidding.
Thanks for looking at our items.
|
