Chief Way Reference Series System Standards Volume 1 Santa Fe Wire bound
The Chief Way Reference Series System Standards Volume 1 Santa Fe

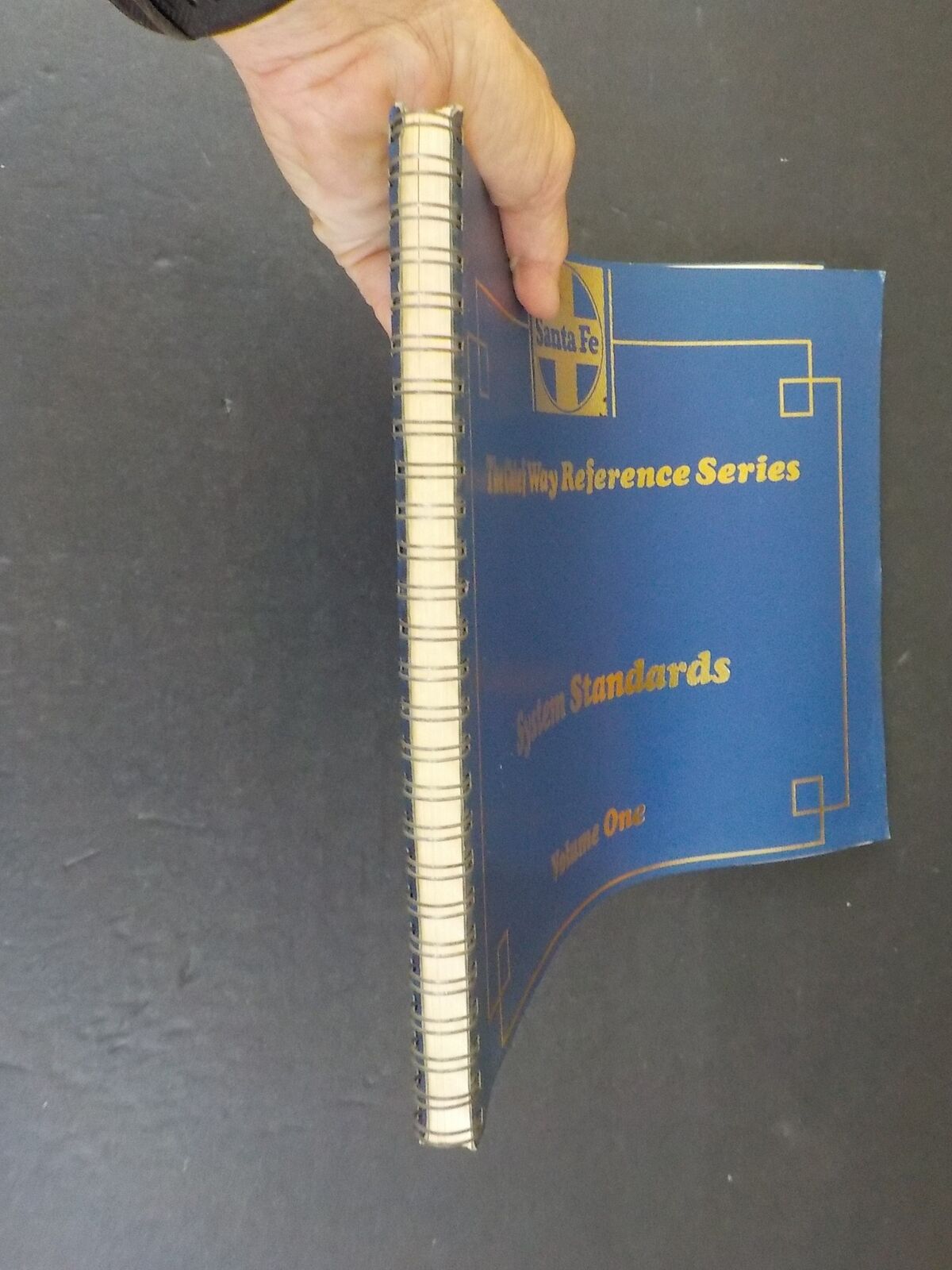

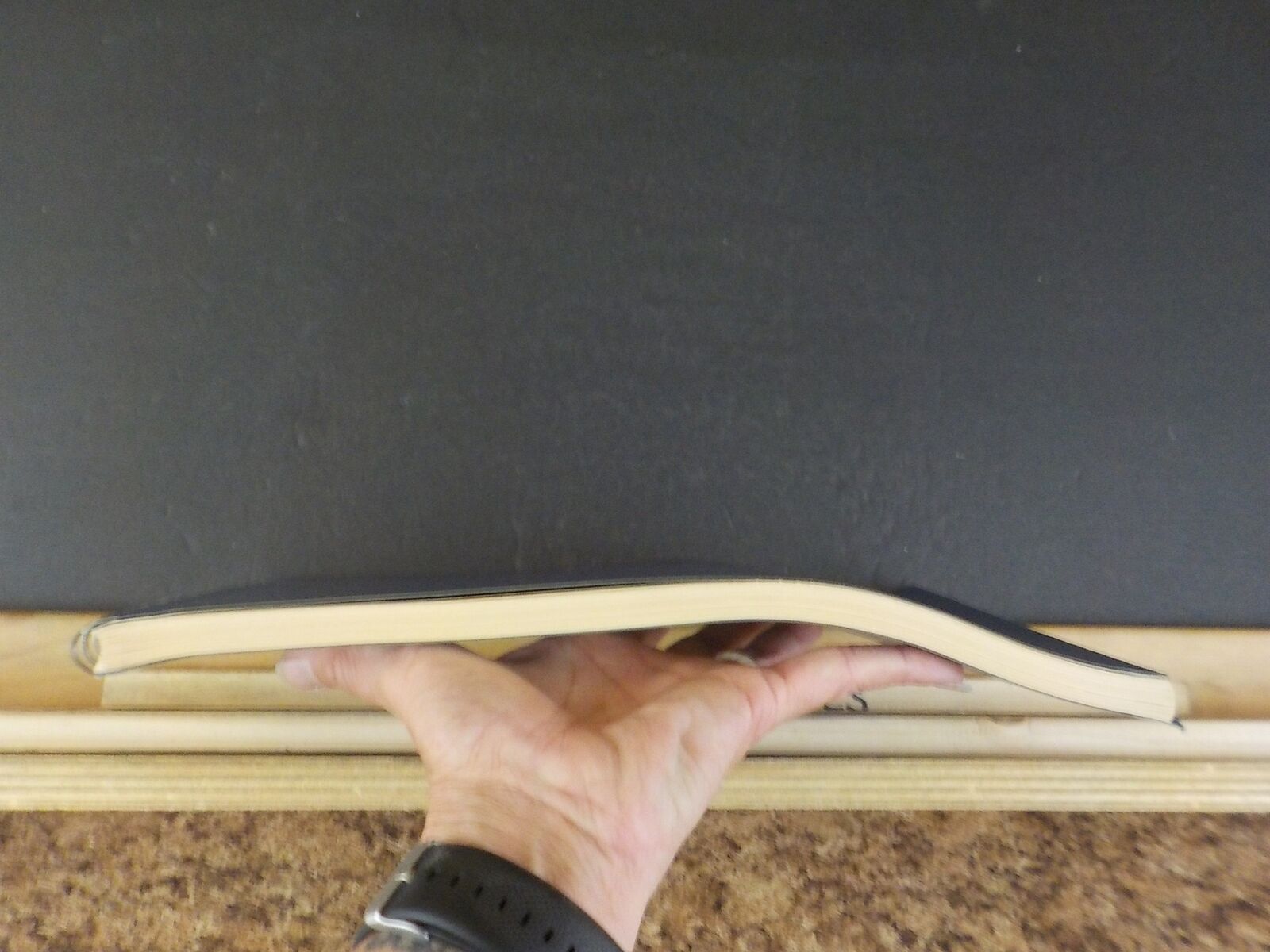

Spiral (wire) Bound Book has a slight roll, does not lay totally flat.
128 pages
Copyright 1978

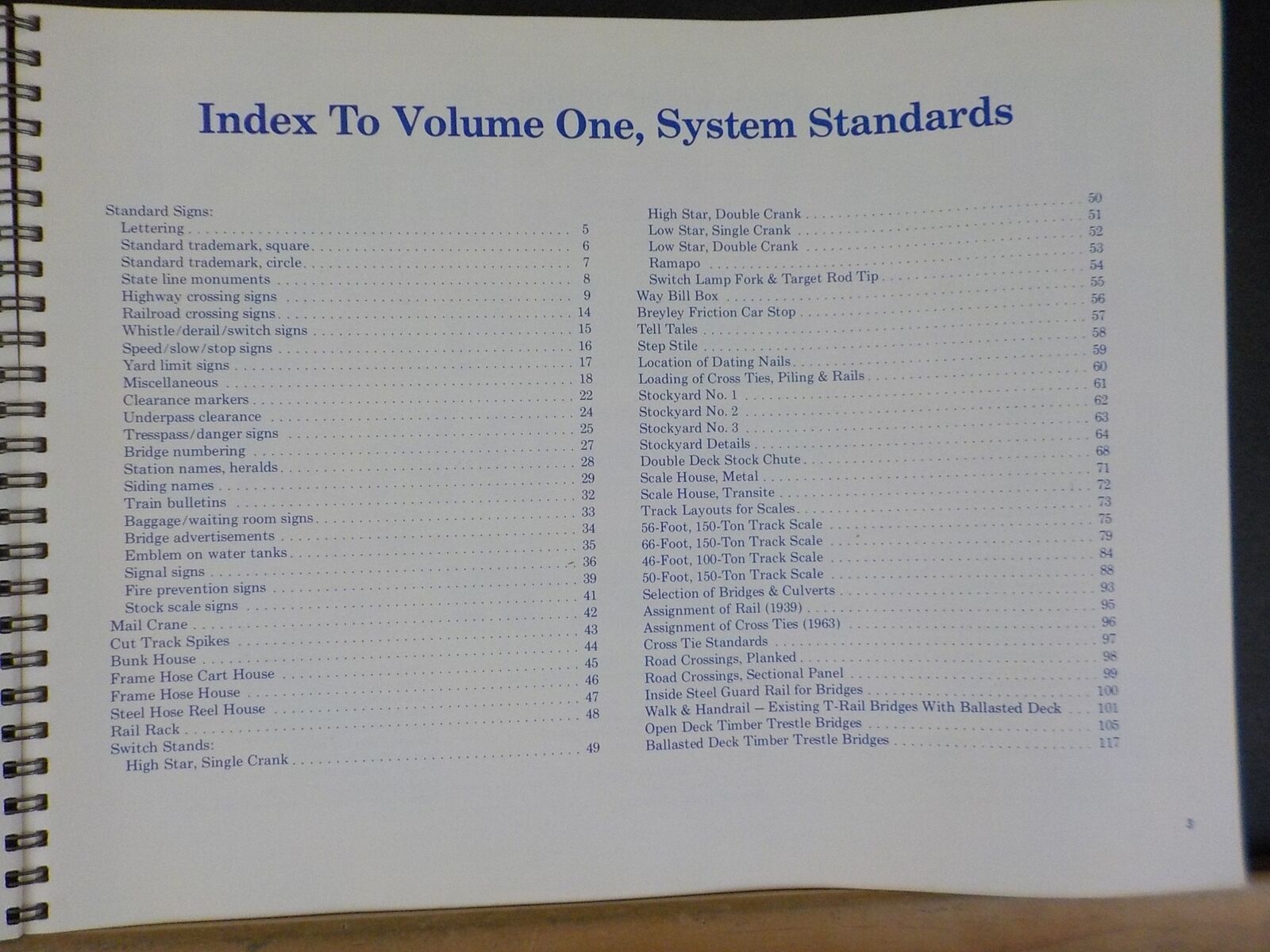

Standard Signs:
Lettering 5
Standard trademark, square 6
Standard trademark, circle 7
State line monuments 8
Highway crossing signs 9
Railroad crossing signs 14
Whistle/derail/switch signs 15
Speed/slow/stop signs 16
Yard limit signs 17
Miscellaneous 18
Clearance markers 22
Underpass clearance 24
Tresspass/danger signs 25
Bridge numbering 27
Station names, heralds 28
Siding names 29
Train bulletins 32
Baggage/waiting room signs 33
Bridge advertisements 34
Emblem on water tanks 35
Signal signs 36
Fire prevention signs 39
Stock scale signs 41
Mail Crane 42
Cut Track Spikes 43
Bunk House 44
Frame Hose Cart House 45
Frame Hose House 46
Steel Hose Reel House 47
Rail Rack 48
Switch Stands:
High Star, Single Crank 49
High Star, Double Crank 50
Low Star, Single Crank 51
Low Star, Double Crank 52
Ramapo 53
Switch Lamp Fork & Target Rod Tip 54
Way Bill Box 55
Breyley Friction Car Stop 56
Tell Tales 57
Step Stile 58
Location of Dating Nails 59
Loading of Cross Ties, Piling & Rails 60
Stockyard No. 1 61
Stockyard No. 2 62
Stockyard No. 3 63
Stockyard Details 64
Double Deck Stock Chute 68
Scale House, Metal 71
Scale House, Transite 72
Track Layouts for Scales 73
56-Foot, 150-Ton Track Scale 75
66-Foot, 150-Ton Track Scale 79
46-Foot, 100-Ton Track Scale 84
50-Foot, 150-Ton Track Scale 88
Selection of Bridges & Culverts 93
Assignment of Rail (1939) 95
Assignment of Cross Ties (1963) 96
Cross Tie Standards 97
Road Crossings, Planked 98
Road Crossings, Sectional Panel 99
Inside Steel Guard Rail for Bridges 100
Walk & Handrail - Existing T-Rail Bridges With Ballasted Deck 101
Open Deck Timber Trestle Bridges 105
Ballasted Deck Timber Trestle Bridges 117
To the casual "railfan," this publication will be of only nominal interest, but to the dedicated railway transportation buff and historian, as well as the serious model railroader, this first of three volumes on the engineering and architectural standards of the Santa Fe Railway will be a welcome addition to the library as well as a source of academic pleasure provided by perusal of the data contained herein. The Santa Fe is highly regarded in the railroad world as a model of operating and financial efficiency. Lesser known is the fact that it, too, was a very professional "standard" railway whose designs were based on the best operating and engineering knowledge. The standard designs presented here relate primarily to buildings, trackside facilities, roadbed and roadway, track, bridges, and similar appurtenances commonly seen but not so commonly recognized and understood. Standards in any line of endeavor have a way of improving and upgrading as time passes, and railway standards are no different. That's why notations of revision are made along with the revisions themselves. In preparing this three-volume series, the publishers have not attempted to present every standard - only select ones that reflect the character of the railroad itself and ones that, hopefully, will provide inspiration and background to those who model this old friend - the Santa Fe Railway.
