Chesapeake and Ohio Railway Baltimore and Ohio Railroad Company mechanical depar

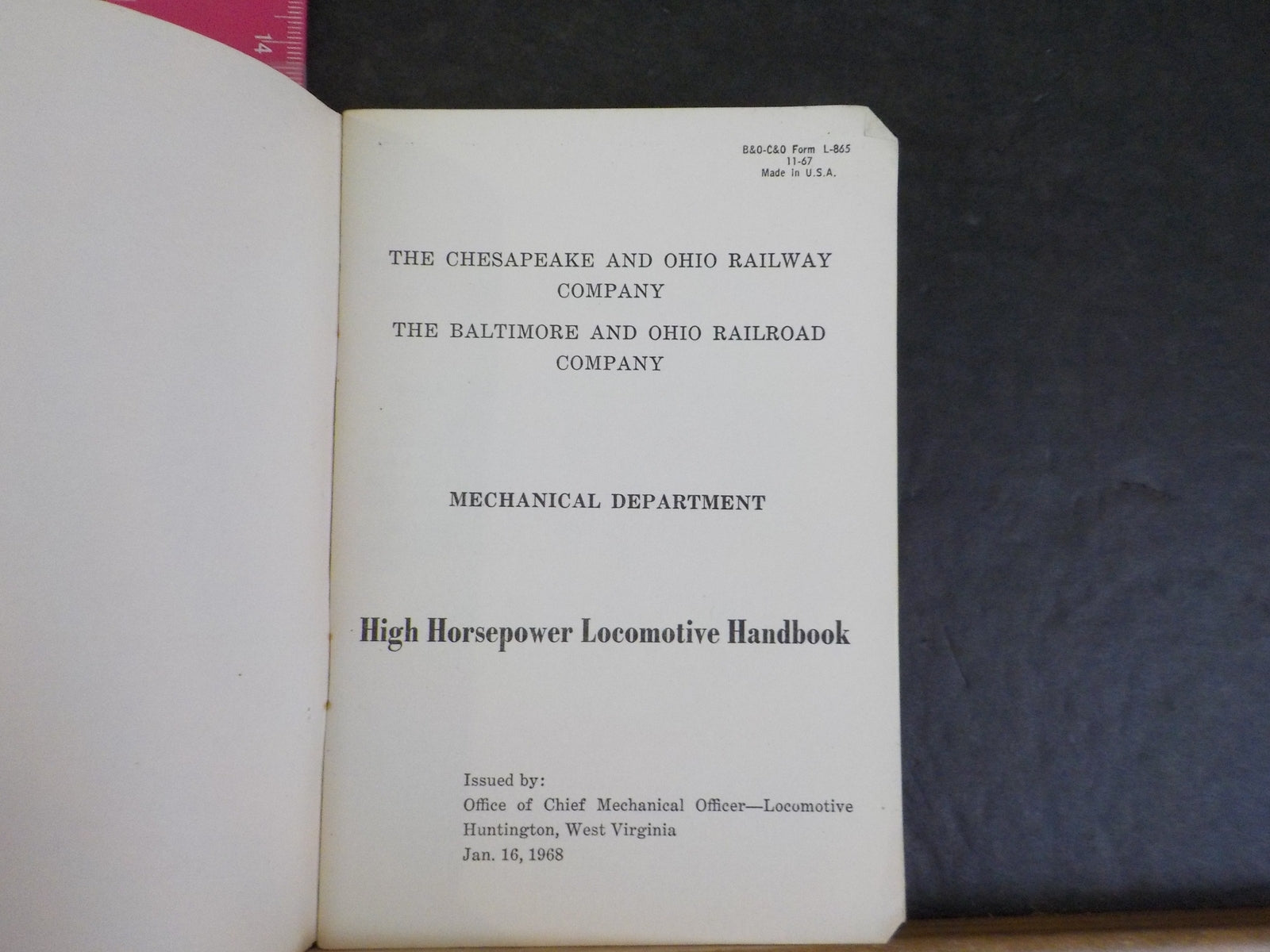

Chesapeake and Ohio Railway Baltimore and Ohio Railroad Company mechanical department High Horsepower locomotive handbook 1968 January 16
Form L-865
56 pages
Stapled Approx 4 X 6 inches

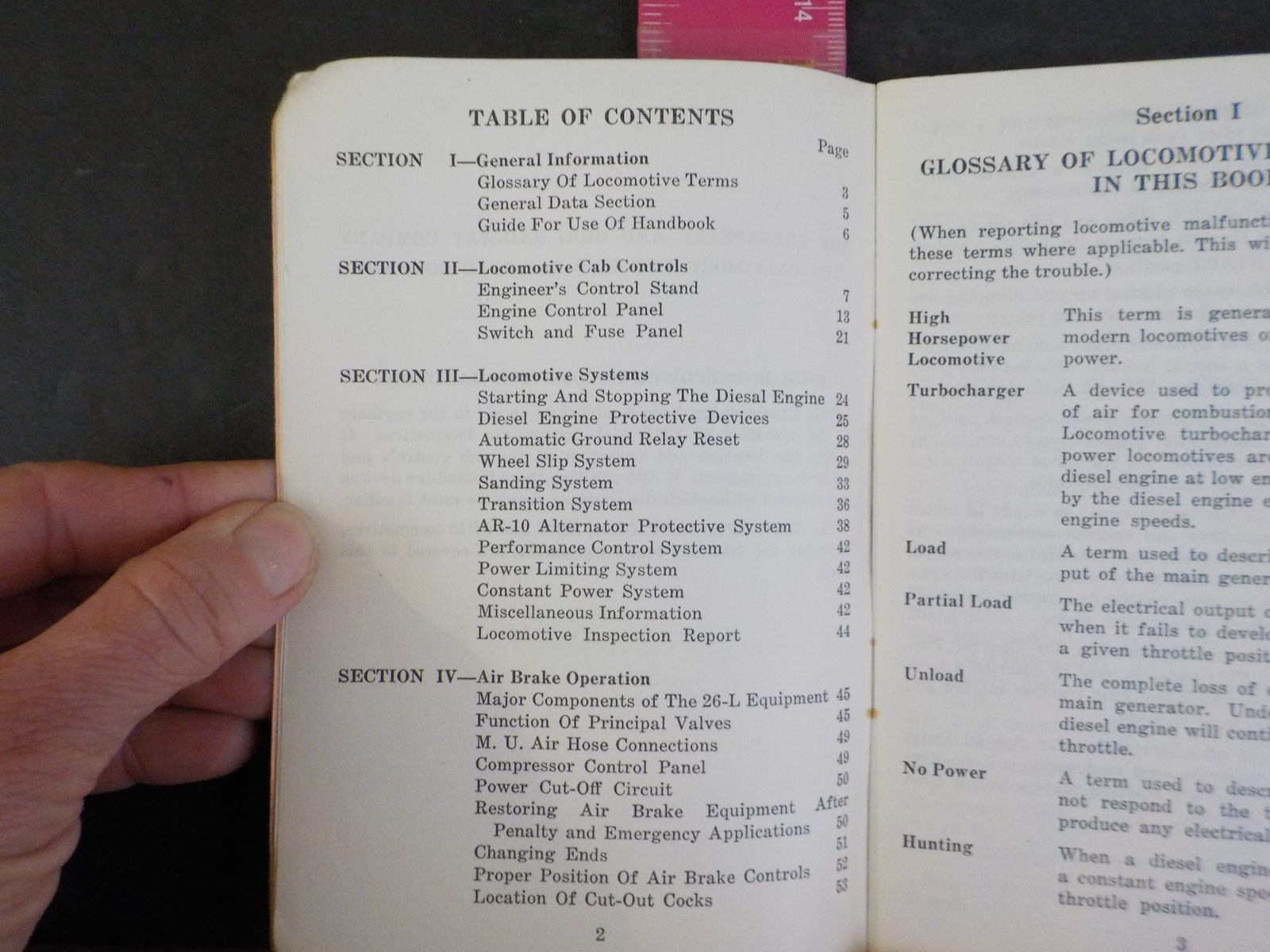

TABLE OF CONTENTS
SECTION IGeneral Information
Glossary Of Locomotive Terms
General Data Section
Guide For Use Of Handbook
SECTION HLocomotive Cab Controls Engineer's Control Stand Engine Control Panel Switch and Fuse Panel
SECTION IIILocomotive Systems
Starting And Stopping The Diesal Engine 24
Diesel Engine Protective Devices25
Automatic Ground Relay Reset28
Wheel Slip System29
Sanding System33
Transition System36
AR-10 Alternator Protective System38
Performance Control System42
Power Limiting System42
Constant Power System42
Miscellaneous Information42
Locomotive Inspection Report44
SECTION IVAir Brake Operation
Major Components of The 26-L Equipment 45
Function Of Principal Valves45
M. U. Air Hose Connections49
Compressor Control Panel49
Power Cut-Off Circuit50
Restoring Air Brake Equipment After
Penalty and Emergency Applications50
Changing Ends51
Proper Position Of Air Brake Controls52
Location Of Cut-Out Cocks53
HIGH HORSEPOWER LOCOMOTIVE HANDBOOK
This handbook has been compiled as an aid to the engineer in the operation of EMD high horsepower locomotives. It covers the location and operation of the cab controls and air brake equipment. It also explains those locomotive devices and systems with which the engineer should be most familiar.
The GP30, GP35, GP38, GP40, SD35 and SD40 locomotives, including the 26-L air brake equipment, are covered in this book.
All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
