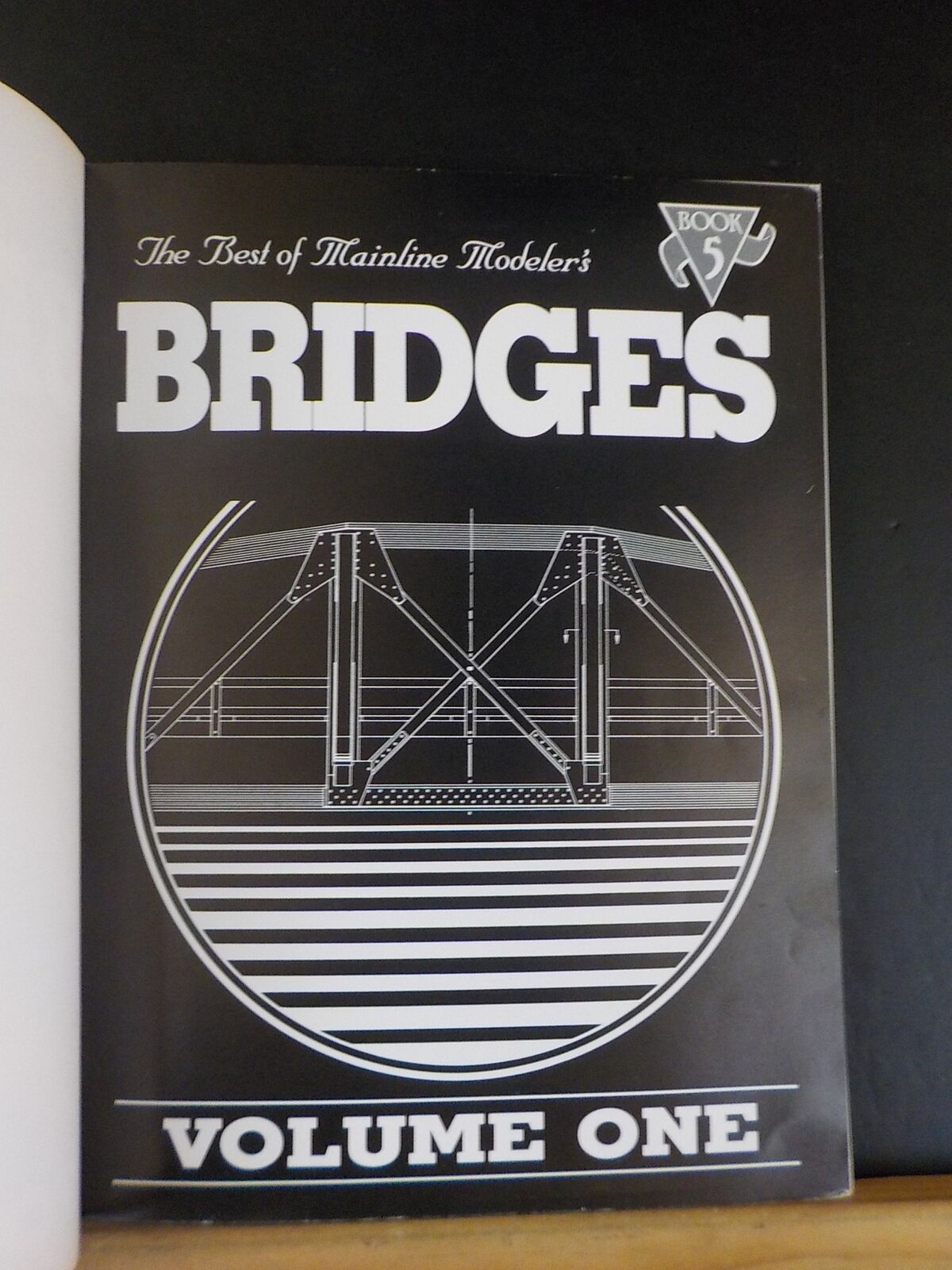

Best Of Mainline Modelers Bridges Volume 1 Book 5
The Best Of Mainline Modelers Bridges Volume 1 Book 5
Soft Cover
100 Pages
Copyright 1991

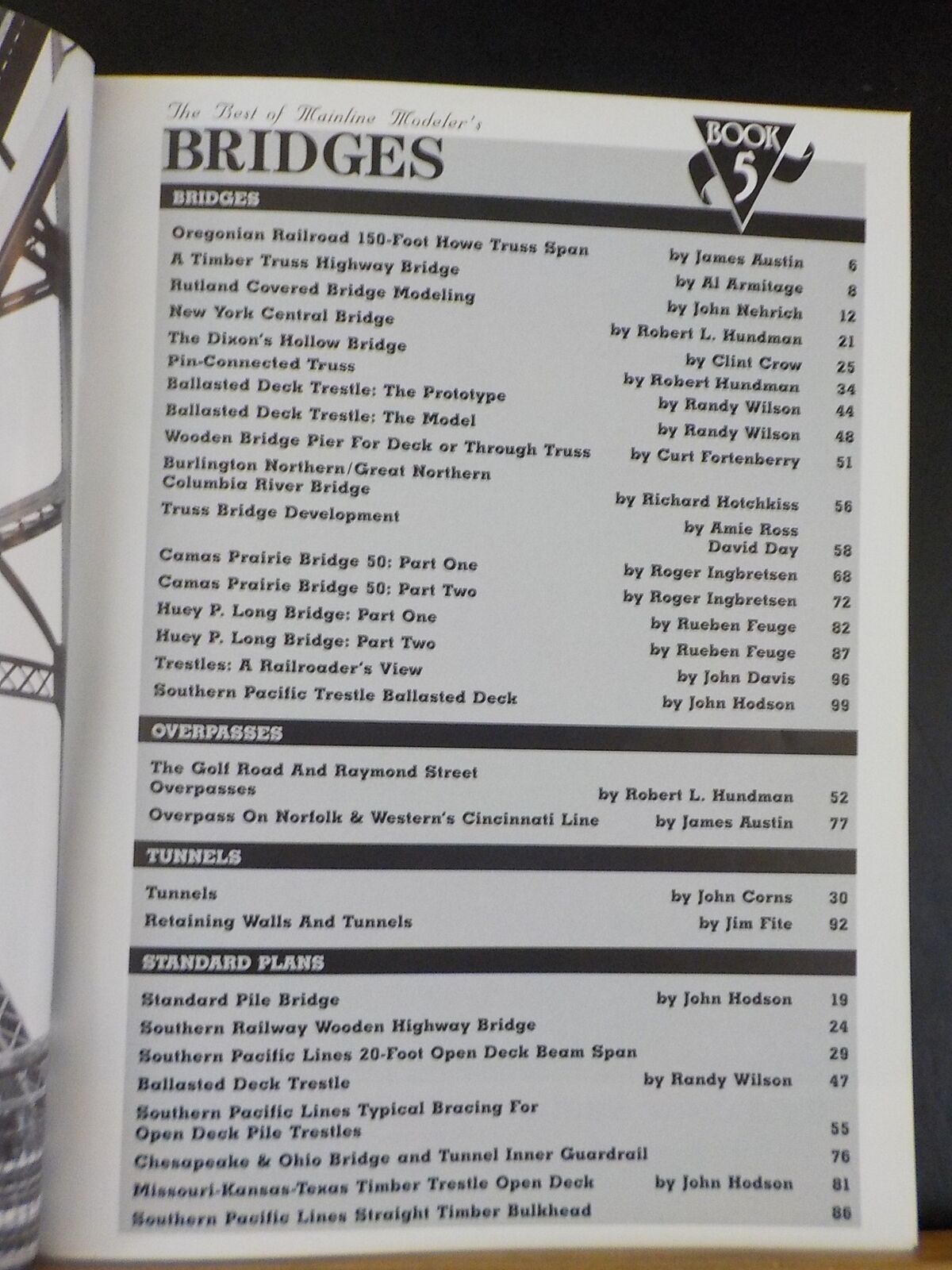

CONTENTS
BRIDGES
Oregonian Railroad 150-Foot Howe Truss Spanby James Austin6
A Timber Truss Highway Bridgeby Al Armitage8
Rutland Covered Bridge Modelingby John Nehrich12
New York Central Bridgeby Robert L. Hundman21
The Dixon's Hollow Bridgeby Clint Crow25
Pin-Connected Trussby Robert Hundman34
Ballasted Deck Trestle: The Prototypeby Randy Wilson44
Ballasted Deck Trestle: The Modelby Randy Wilson48
Wooden Bridge Pier For Deck or Through Trussby Curt Fortenberry51
Burlington Northern/Great Northern/Columbia River Bridgeby Richard Hotchkiss56
Truss Bridge Developmentby Arnie Ross & David Day 58
Camas Prairie Bridge 50: Part Oneby Roger Ingbretsen68
Camas Prairie Bridge 50: Part Twoby Roger Ingbretsen72
Huey P. Long Bridge: Part Oneby Rueben Feuge82
Huey P. Long Bridge: Part Twoby Rueben Feuge87
Trestles: A Railroader's Viewby John Davis96
Southern Pacific Trestle Ballasted Deckby John Hodson99
OVERPASSES
The Golf Road And Raymond Street Overpassesby Robert L. Hundman52
Overpass On Norfolk & Western's Cincinnati Lineby James Austin77
TUNNELS
Tunnelsby John Corns30
Retaining Walls And Tunnelsby Jim Fite92
STANDARD PLANS
Standard Pile Bridgeby John Hodson19
Southern Railway Wooden Highway Bridge24
Southern Pacific Lines 20-Foot Open Deck Beam Span29
Ballasted Deck Trestleby Randy Wilson47
Southern Pacific Lines Typical Bracing For Open Deck Pile Trestles55
Chesapeake & Ohio Bridge and Tunnel Inner Guardrail76
Missouri-Kansas-Texas Timber Trestle Open Deckby John Hodson81
Southern Pacific Lines Straight Timber Bulkhead86
This set of plans is especially interesting because it was apparently drawn originally for the Oregonian Railroad which was incorporated on April 19, 1890. The company was acquired by the Southern Pacific for the purpose taking control of the narrow-gauge lines in Oregon, which had been built under a number of different names, including the Oregonian Railway Limited.
It appears that this bridge was built at the Thomas Creek Crossing on the line which became the Woodburn-Springfield branch of the Southern Pacific Lines in Oregon. I would speculate that this bridge was built during upgrading of the line, perhaps in conjunction with its conversion to standard gauge in 1893. The set of blueprints was made in September of 1919, probably in connection with an inspection or some bridge renewal work.
