Association of American Railroads Section 6 Loading Defense material
Assoc of American RRs Section #6 Rules Loading of Dept Defense Material
Association of American Railroads Operations and Maintenance Department Mechanical Division
Section No. 6

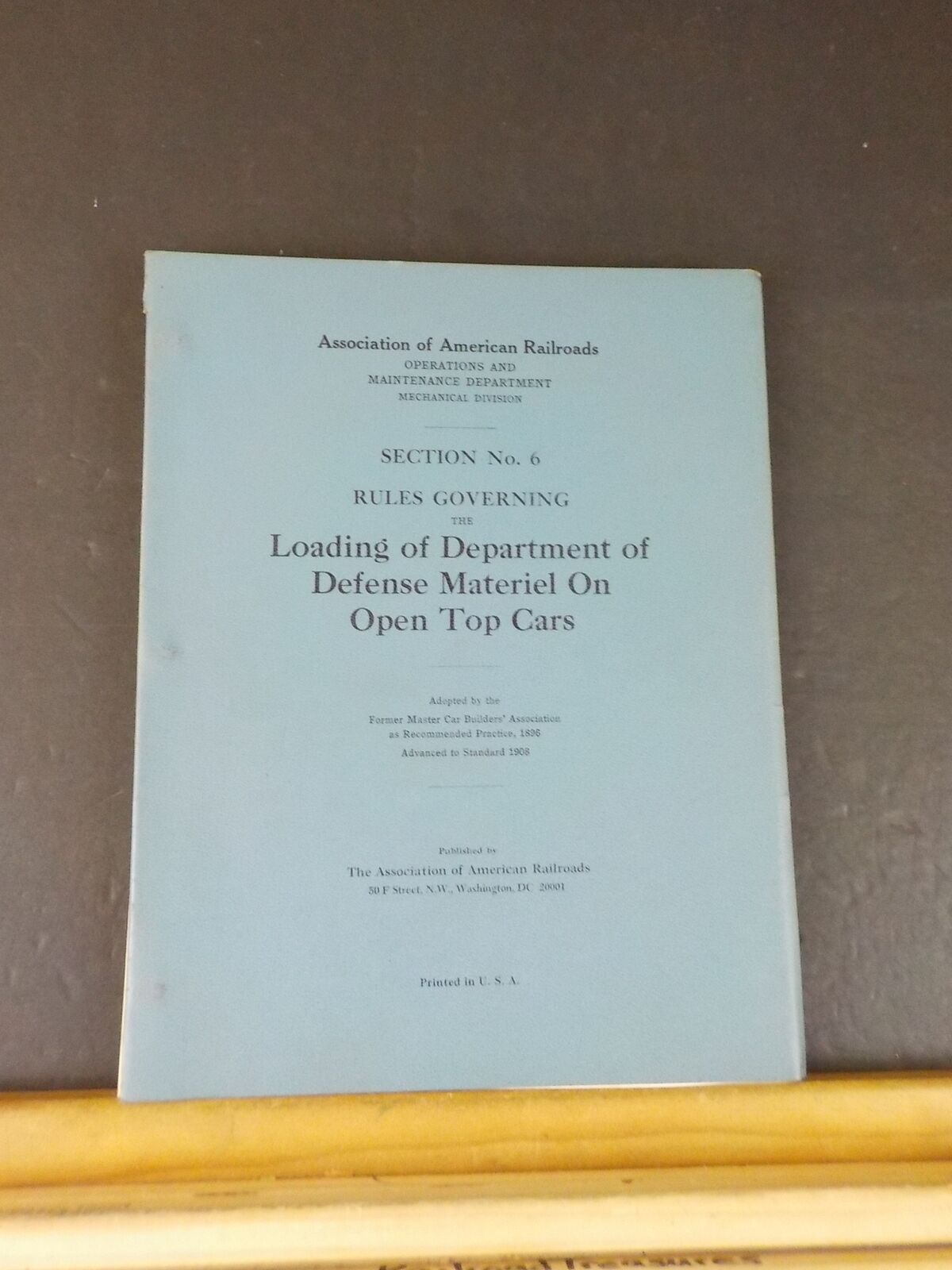

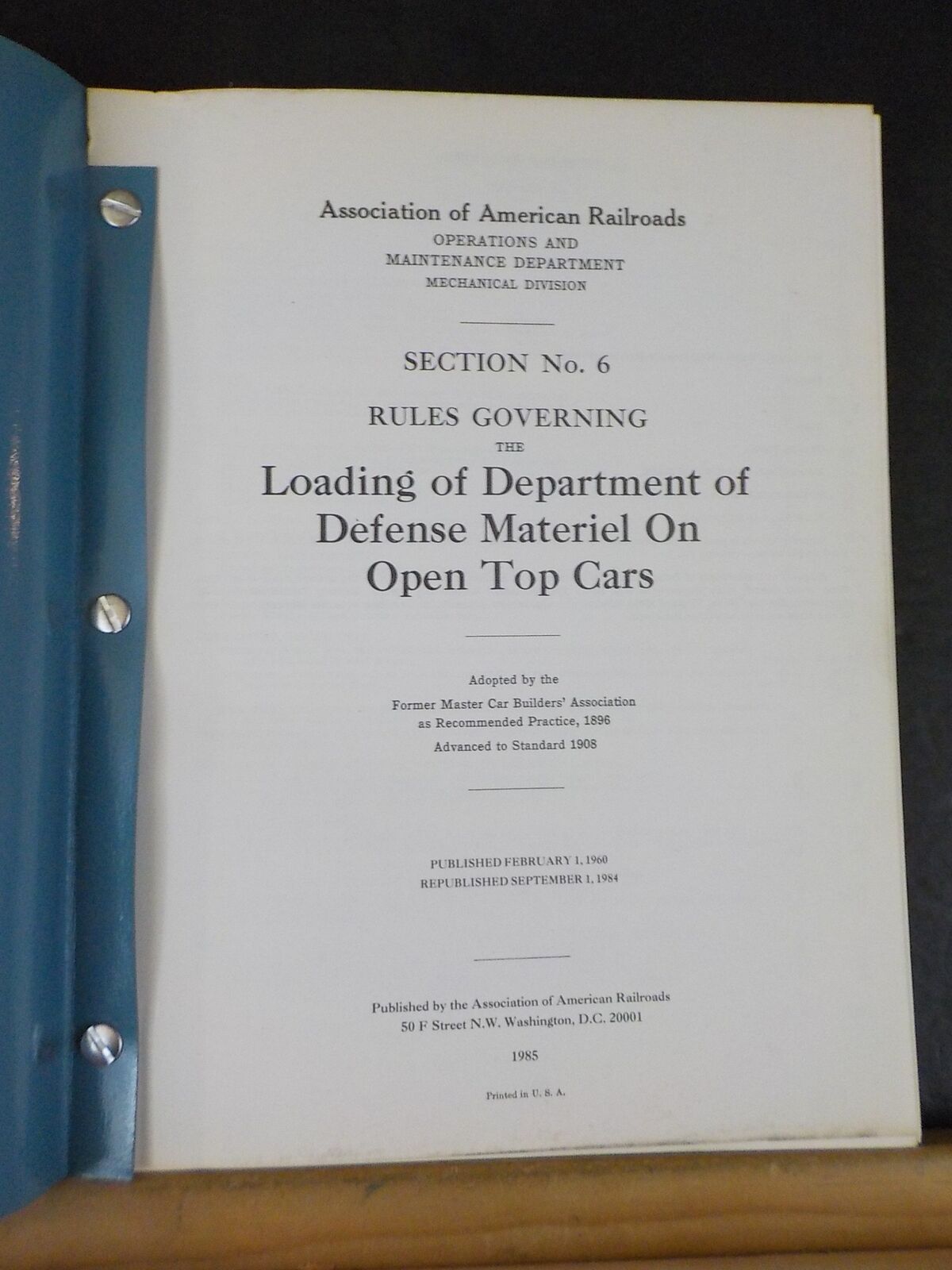

Rukes Governing the Loading of Department of Defense Material on Open Top Cars
The Association Of American Railroads
Soft Cover
158 Pages
Copyright 1985
The Association of American Railroads is engaged in an ongoing effort to keep these rules and loading patterns current with an ever changing business environment in North America. The focus is to provide the rules which will allow for the safe, uniform and economical shipping of commodities on open top rail cars. In establishing these rules, the AAR Open Top Loading Rules Committee relies on the collective effort of the Association of American Railroads, its member rail carriers, their shippers and the many vendors who provide services, material and equipment to the industry.

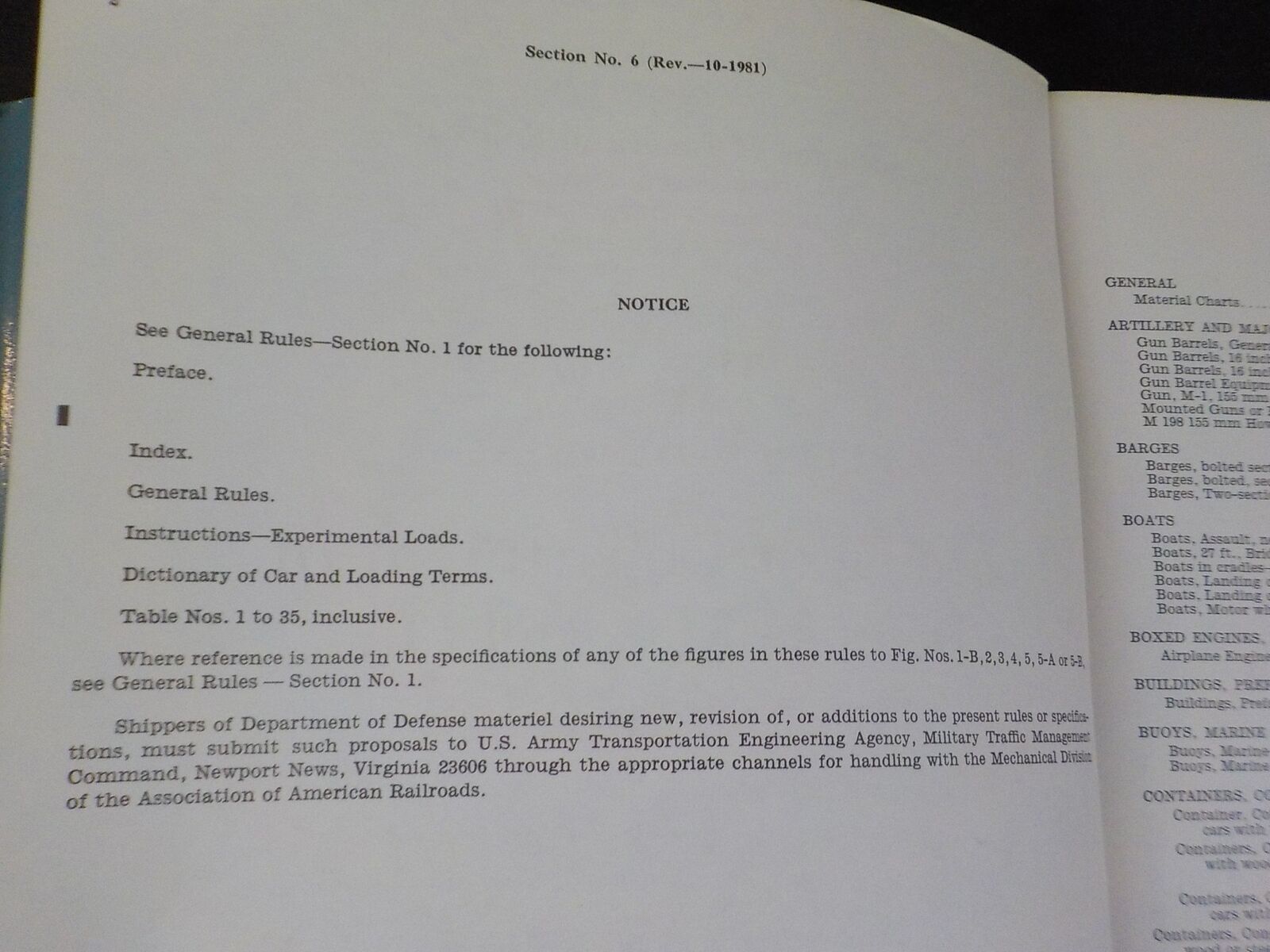

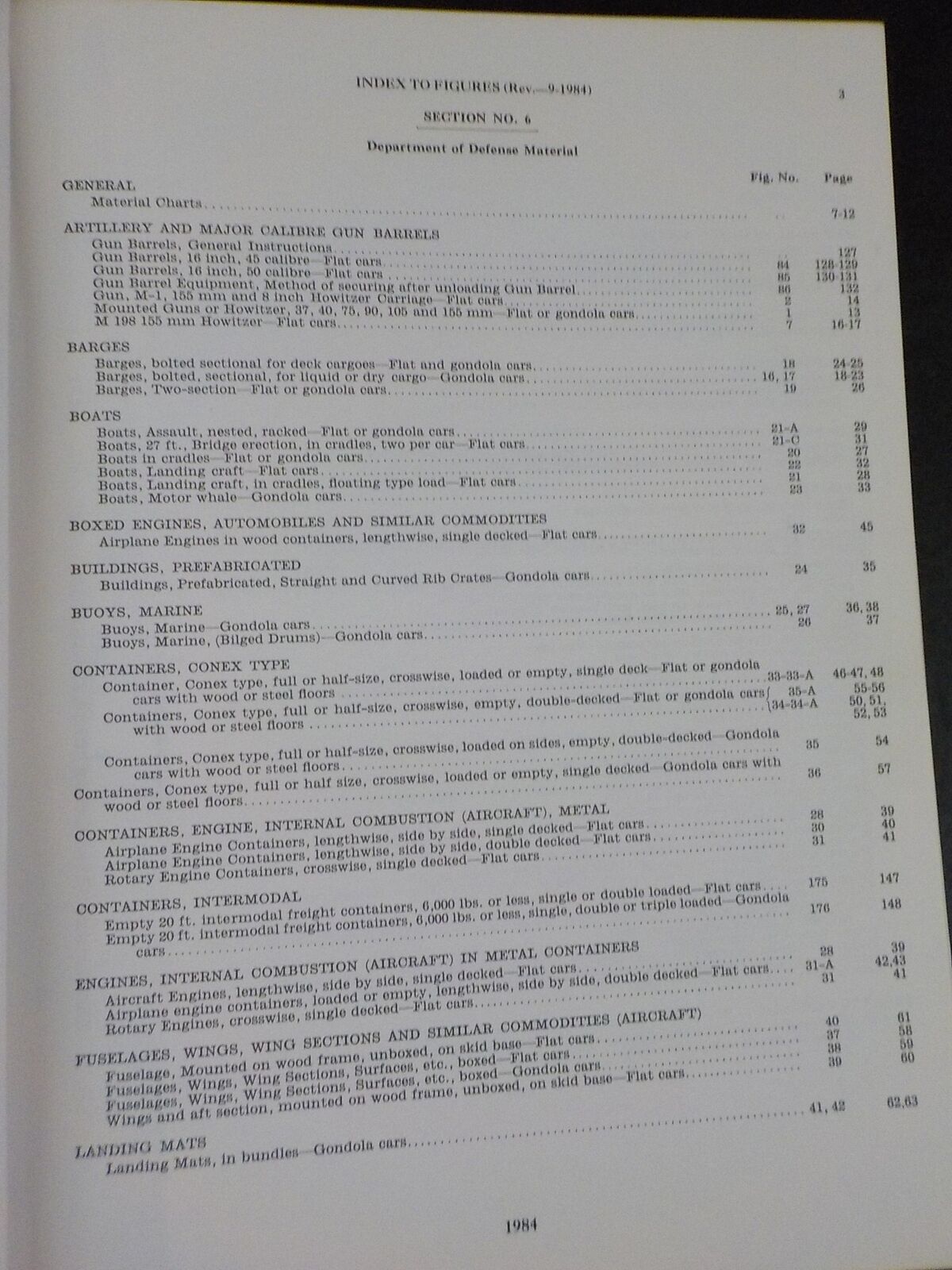

INDEX TO FIGURES (Rev.-9-1984)3
SECTION NO. 6
Department of Defense Material
Fig. No.Page
GENERAL
Material Charts 7-12
ARTILLERY AND MAJOR CALIBRE GUN BARRELS
Gun Barrels, General Instructions 127
Gun Barrels, 16 inch, 45 calibreFlat cars 84128-129
Gun Barrels, 16 inch, 50 calibreFlat cars 85130-131
Gun Barrel Equipment, Method of securing after unloading Gun Barrel 86132
Gun, M-1, 155 mm and 8 inch Howitzer CarriageFlat cars 214
Mounted Guns or Howitzer, 37, 40, 75, 90, 105 and 155 ramFlat or gondola cars 113
M 198 155 mm HowitzerFlat cars 716-17
BARGES
Barges, bolted sectional for deck cargoesFlat and gondola cars 1824-25
Barges, bolted, sectional, for liquid or dry cargoGondola cars 16, 1718-23
Barges, Two-sectionFlat or gondola cars 1926
BOATS
Boats, Assault, nested, rackedFlat or gondola cars 21-A29
Boats, 27 ft., Bridge erection, in cradles, two per carFlat cars 21-C31
Boats in cradlesFlat or gondola cars 2027
Boats, Landing craftFlat cars 2232
Boats, Landing craft, in cradles, floating type loadFlat cars 2128
Boats, Motor whaleGondola cars 2333
BOXED ENGINES, AUTOMOBILES AND SIMILAR COMMODITIES
Airplane Engines in wood containers, lengthwise, single deckedFlat cars 3245
BUILDINGS, PREFABRICATED
Buildings, Prefabricated, Straight and Curved Rib CratesGondola cars 2435
BUOYS, MARINE
Buoys, MarineGondola cars 25, 2736, 38
Buoys, Marine, (Bilged Drums)Gondola cars 2637
CONTAINERS, CONEX TYPE
Container, Conex type, full or half-size, crosswise, loaded or empty, single deckFlat or gondola
cars with wood or steel floors 33-33-A46-47,48
Containers, Conex type, full or half-size, crosswise, empty, double-deckedFlat or gondola cars 35-A55-56
with wood or steel floors 34-34-A50, 51,
52, 53
Containers, Conex type, full or half-size, crosswise, loaded on sides, empty, double-deckedGondola
Cars with wood or steel floors 3554
Containers, Conex type, full or half size, crosswise, loaded or empty, single deckedGondola cars with
wood or steel floors 3657
CONTAINERS, ENGINE, INTERNAL COMBUSTION (AIRCRAFT), METAL
Airplane Engine Containers, lengthwise, side by side, single deckedFlat cars 2839
Airplane Engine Containers, lengthwise, side by side, double deckedFlat cars 3040
Rotary Engine Containers, crosswise, single deckedFlat cars 3141
CONTAINERS, INTERMODAL
Empty 20 ft. intermodal freight containers, 6,000 lbs. or less, single or double loadedFlat cars 175147
Empty 20 ft. intermodal freight containers, 6,000 lbs. or less, single, double or triple loadedGondola
cars 176148
ENGINES, INTERNAL COMBUSTION (AIRCRAFT) IN METAL CONTAINERS
Aircraft Engines, lengthwise, side by side, single deckedFlat cars 2839
Airplane engine containers, loaded or empty, lengthwise, side by side, double deckedFlat cars 31-A42,43
Rotary Engines, crosswise, single deckedFlat cars 3141
FUSELAGES, WINGS, WING SECTIONS AND SIMILAR COMMODITIES (AIRCRAFT)
Fuselage, Mounted on wood frame, unboxed, on skid baseFlat cars 4061
Fuselages, Wings, Wing Sections, Surfaces, etc., boxedFlat cars 3758
Fuselages, Wings, Wing Sections, Surfaces, etc., boxedGondola cars 3859
Wings and aft section, mounted on wood frame, unboxed, on skid baseFlat cars 3960
LANDING MATS
Landing Mats, in bundlesGondola cars 41, 4262,63

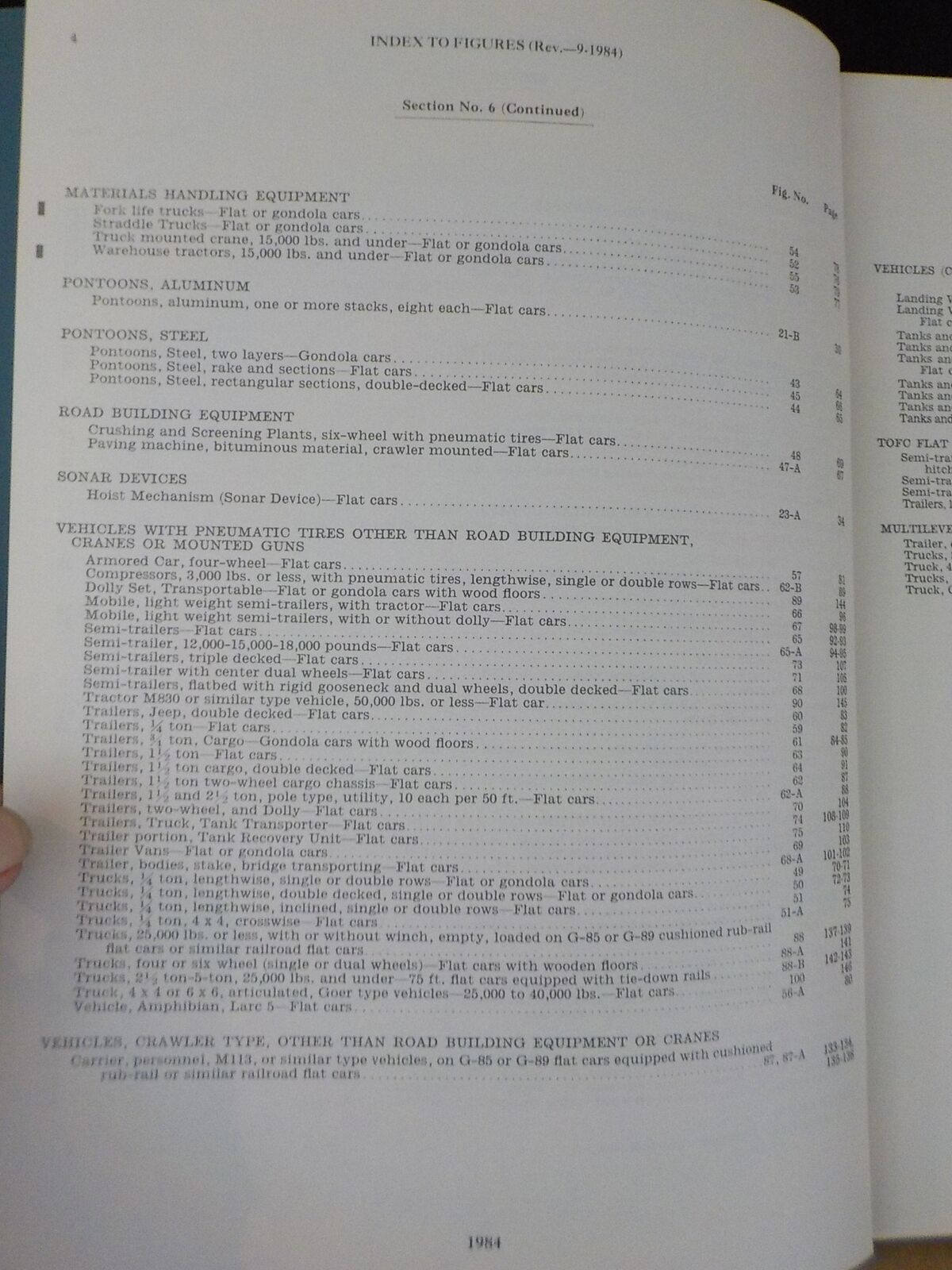

Section No. 6 (Continued)
Fig. No.Page
MATERIALS HANDLING EQUIPMENT
Fork life trucksFlat or gondola cars 5478
Straddle TrucksFlat or gondola cars 5276
Truck mounted crane, 15,000 lbs. and underFlat or gondola cars 5579
Warehouse tractors, 15,000 lbs. and underFlat or gondola cars 5377
PONTOONS, ALUMINUM
Pontoons, aluminum, one or more stacks, eight eachFlat cars 21-B30
PONTOONS, STEEL
Pontoons, Steel, two layersGondola cars 4364
Pontoons, Steel, rake and sectionsFlat cars 4566
Pontoons, Steel, rectangular sections, double-deckedFlat cars 4465
ROAD BUILDING EQUIPMENT
Crushing and Screening Plants, six-wheel with pneumatic tiresFlat cars 4869
Paving machine, bituminous material, crawler mountedFlat cars 47-A67
SONAR DEVICES
Hoist Mechanism (Sonar Device)Flat cars 23-A34
VEHICLES WITH PNEUMATIC TIRES OTHER THAN ROAD BUILDING EQUIPMENT,
CRANES OR MOUNTED GUNS
Armored Car, four-wheelFlat cars 5781
Compressors, 3,000 lbs. or less, with pneumatic tires, lengthwise, single or double rowsFlat cars 62-B89
Dolly Set, TransportableFlat or gondola cars with wood floors 89144
Mobile, light weight semi-trailers, with tractorFlat cars 6696
Mobile, light weight semi-trailers, with or without dollyFlat cars 6798-99
Semi-trailersFlat cars 6592-93
Semi-trailer, 12,000-15,000-18,000 poundsFlat cars 65-A94-95
Semi-trailers, triple deckedFlat cars 73107
Semi-trailer with center dual wheelsFlat cars 71105
Semi-trailers, flatbed with rigid gooseneck and dual wheels, double deckedFlat cars 68100
Tractor M830 or similar type vehicle, 50,000 lbs. or lessFlat car 90145
Trailers, Jeep, double deckedFlat cars 6083
Trailers, 1/4 tonFlat cars 5982
Trailers, 3/4 ton, CargoGondola cars with wood floors 6184-85
Trailers, 1 tonFlat cars 6390
Trailers, 1 ton cargo, double deckedFlat cars 6491
Trailers, 1 ton two-wheel cargo chassisFlat cars 6287
Trailers, 11/2 and 21/2 ton, pole type, utility, 10 each per 50 ft.Flat cars 62-A88
Trailers, two-wheel, and DollyFlat cars 70104
Trailers, Truck, Tank TransporterFlat cars 74108-109
Trailer portion, Tank Recovery UnitFlat cars 75110
Trailer VansFlat or gondola cars 69103
Trailer, bodies, stake, bridge transportingFlat cars 68-A101-102
Trucks, 1/4 ton, lengthwise, single or double rowsFlat or gondola cars 4970-71
Trucks, 1/4 ton, lengthwise, double decked, single or double rowsFlat or gondola cars 5072-73
Trucks, % ton, lengthwise, inclined, single or double rowsFlat cars 5174
Trucks, 1/4 ton, 4 x 4, crosswiseFlat cars 51-A75
Trucks, 25,000 lbs. or less, with or without winch, empty, loaded on G-85 or G-89 cushioned rub-rail
flat cars or similar railroad flat cars 88137-139
Trucks, four or six wheel (single or dual wheels)Flat cars with wooden floors 88-A141
Trucks, 2 ton-5-ton, 25,000 lbs. and under-75 ft. flat cars equipped with tie-down rails 88-B142-143
Truck, 4 x 4 or 6 x 6, articulated, Goer type vehicles-25,000 to 40,000 lbs.Flat cars 100146
Vehicle, Amphibian, Larc 5Flat cars ,56-A80
VEHICLES, CRAWLER TYPE, OTHER THAN ROAD BUILDING EQUIPMENT OR CRANES
Carrier, personnel, M113, or similar type vehicles, on G-85 or G-89 flat cars equipped with cushioned
rub-rail or similar railroad flat cars87, 87-A133-134,
135-136

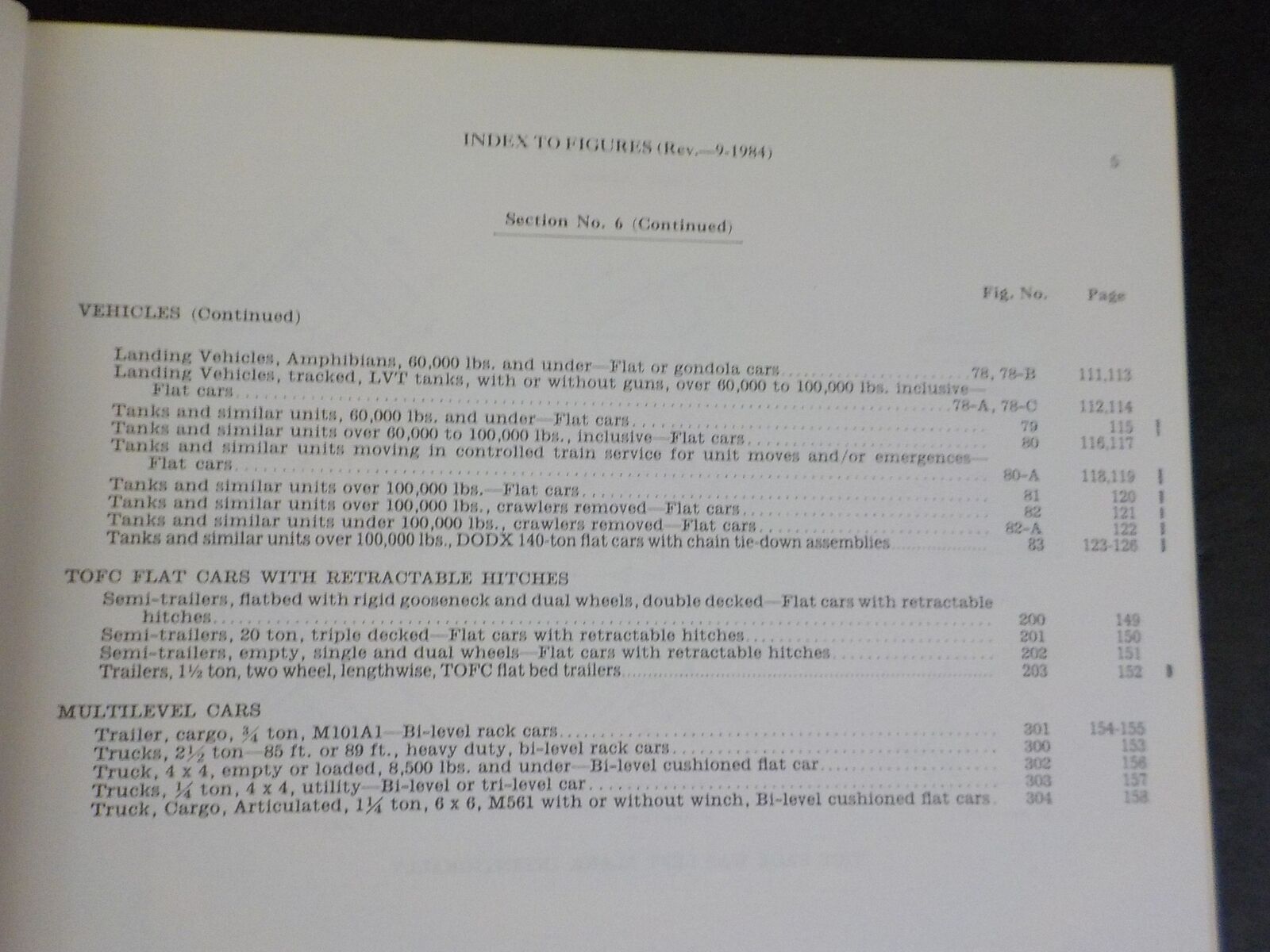

Section No. 6 (Continued)
Fig. No.Page
VEHICLES (Continued)
Landing Vehicles, Amphibians, 60,000 lbs. and underFlat or gondola cars78, 78-B111,113
Landing Vehicles, tracked, LVT tanks, with or without guns, over 60,000 to 100,000 lbs. inclusive
Flat cars78-A, 78-C112,114
Tanks and similar units, 60,000 lbs. and underFlat cars 79115
Tanks and similar units over 60,000 to 100,000 lbs., inclusiveFlat cars 80116,117
Tanks and similar units moving in controlled train service for unit moves and/or emergences
Flat cars 80-A118,119
Tanks and similar units over 100,000 lbs.Flat cars 81120I
Tanks and similar units over 100,000 lbs., crawlers removedFlat cars 82121I
Tanks and similar units under 100,000 lbs., crawlers removedFlat cars 82-A122I
Tanks and similar units over 100,000 lbs., DODX 1/4-ton flat cars with chain tie-down assemblies 83123-126I
TOFC FLAT CARS WITH RETRACTABLE HITCHES
Semi-trailers, flatbed with rigid gooseneck and dual wheels, double deckedFlat cars with retractable
hitches 200149
Semi-trailers, 20 ton, triple deckedFlat cars with retractable hitches 201150
Semi-trailers, empty, single and dual wheelsFlat cars with retractable hitches 202151
Trailers, 11/2 ton, two wheel, lengthwise, TOFC flat bed trailers 203152I
MULTILEVEL CARS
Trailer, cargo, 3/4 ton, M101A1Bi-level rack cars 301154-155
Trucks, 21r ton-85 ft. or 89 ft., heavy duty, bi-level rack cars 300153
Truck, 4 x 4, empty or loaded, 8,500 lbs. and underBi-level cushioned flat car 302156
Trucks, 1/4 ton, 4 x 4, utilityBi-level or tri-level car 303157
Truck, Cargo, Articulated, 1% ton, 6 x 6, M561 with or without winch, Bi-level cushioned flat cars 304158
