Association of American Railroads Section 3 Loaing road grading making Farm Equi

$90.00

RailroadTreasures offers the following item:

Assoc. American RRs Section #3 Ruled Governing the Loading of Road Grading

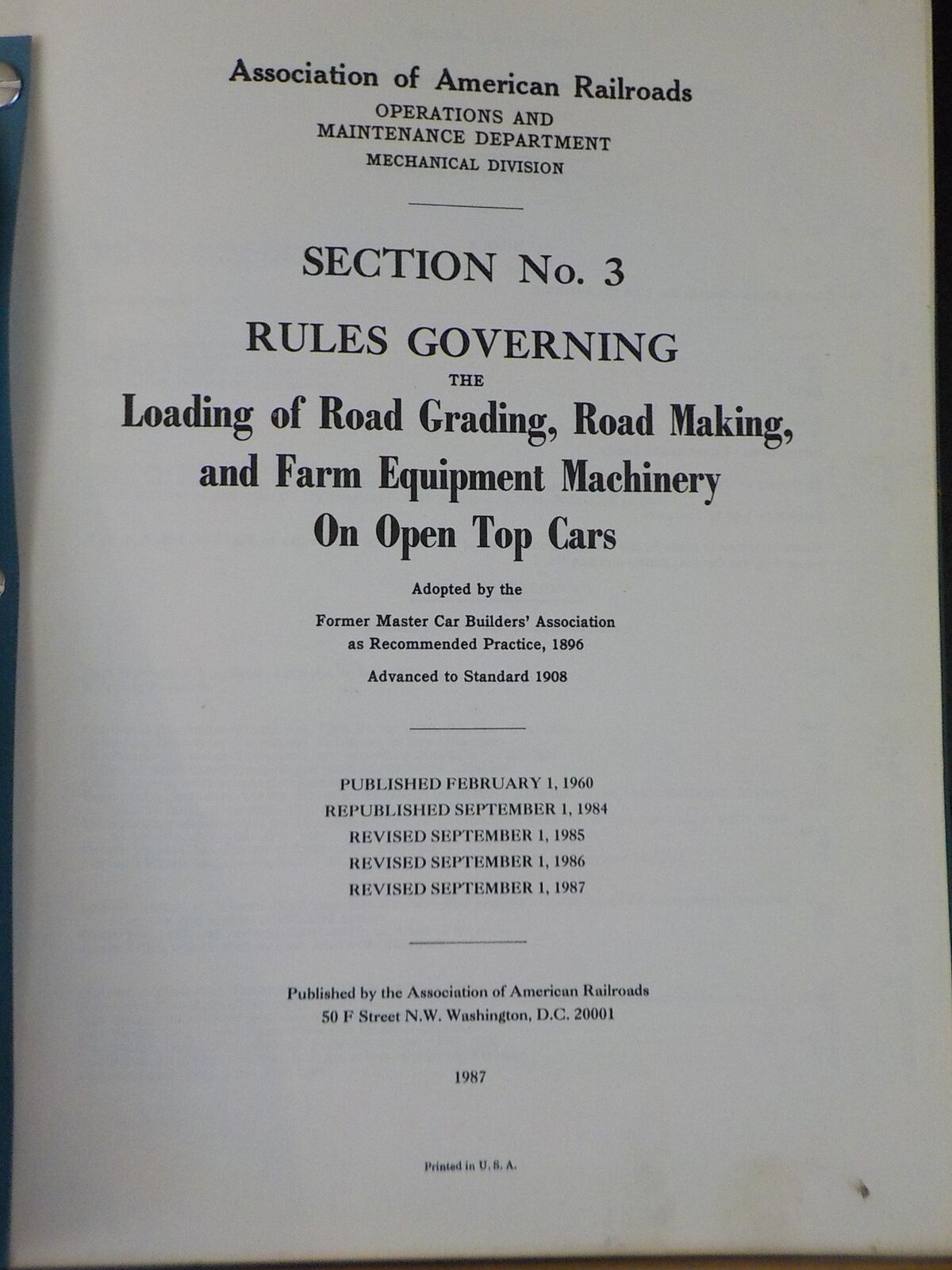

Association of American Railroads Operations and Maintenance Department

Mechanical Division

Section No. 3

Rules Governing the Loading of Road Grading, Road Making, and Farm Equipment Machinery on Open Top Cars.

The Association of American Railroads

in a binder

74 Pages

The Association of American Railroads is engaged in an ongoing effort to keep these rules and loading patterns current with an ever changing business environment in North America. The focus is to provide the rules which will allow for the safe, uniform and economical shipping of commodities on open top rail cars. In establishing these rules, the AAR Open Top Loading Rules Committee relies on the collective effort of the Association of American Railroads, its member rail carriers, their shippers and the many vendors who provide services, material and equipment to the industry.

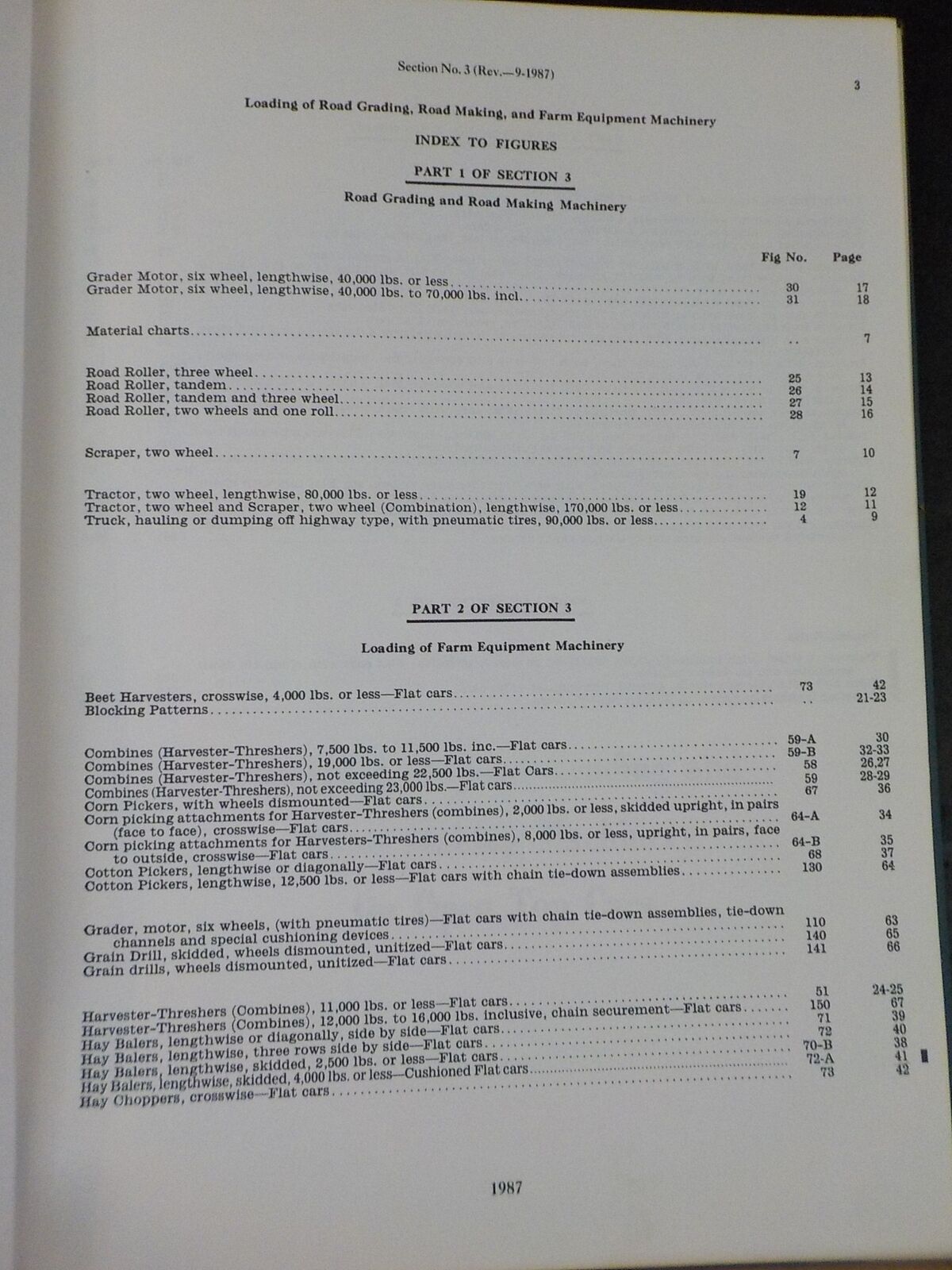

Loading of Road Grading, Road Making, and Farm Equipment Machinery

INDEX TO FIGURES

PART 1 OF SECTION 3

Road Grading and Road Making Machinery

Fig No.Page

Grader Motor, six wheel, lengthwise, 40,000 lbs. or less 3017

Grader Motor, six wheel, lengthwise, 40,000 lbs. to 70,000 lbs. incl 3118

Material charts7

Road Roller, three wheel 2513

Road Roller, tandem 2614

Road Roller, tandem and three wheel 2715

Road Roller, two wheels and one roll 2816

Scraper, two wheel 710

Tractor, two wheel, lengthwise, 80,000 lbs. or less 1912

Tractor, two wheel and Scraper, two wheel (Combination), lengthwise, 170,000 lbs. or less 1211

Truck, hauling or dumping off highway type, with pneumatic tires, 90,000 lbs. or less. 49

PART 2 OF SECTION 3

Loading of Farm Equipment Machinery

Beet Harvesters, crosswise, 4,000 lbs. or lessFlat cars 7342

Blocking Patterns..21-23

Combines (Harvester-Threshers), 7,500 lbs. to 11,500 lbs. inc.Flat cars 59-A30

Combines (Harvester-Threshers), 19,000 lbs. or lessFlat cars 59-B32-33

Combines (Harvester-Threshers), not exceeding 22,500 lbs.Flat Cars 5826,27

Combines (Harvester-Threshers), not exceeding 23,000 lbs.-Flat cars 5928-29

Corn Pickers, with wheels dismountedFlat cars 6736

Corn picking attachments for Harvester-Threshers (combines), 2,000 lbs. or less, skidded upright, in pairs

(face to face), crosswiseFlat cars 64-A34

Corn picking attachments for Harvesters-Threshers (combines), 8,000 lbs. or less, upright, in pairs, face

to outside, crosswiseFlat cars 64-B35

Cotton Pickers, lengthwise or diagonallyFlat cars 6837

Cotton Pickers, lengthwise, 12,500 lbs. or lessFlat cars with chain tie-down assemblies 13064

Grader, motor, six wheels, (with pneumatic tires)Flat cars with chain tie-down assemblies, tie-down

channels and special cushioning devices 11063

Grain Drill, skidded, wheels dismounted, unitizedFlat cars 140

Grain drills, wheels dismounted, unitizedFlat cars 14166

Harvester-Threshers (Combines), 11,000 lbs. or lessFlat cars 5124-25

Harvester-Threshers (Combines), 12,000 lbs. to 16,000 lbs. inclusive, chain securementFlat cars 15067

Hay Balers, lengthwise or diagonally, side by sideFlat cars 7139

Hay Balers, lengthwise, three rows side by sideFlat cars 7240

Hay Balers, lengthwise, skidded, 2,500 lbs. or lessFlat cars 70-B38

Hay Balers, lengthwise, skidded, 4,000 lbs. or lessCushioned Flat cars 72-A41

Hay Choppers, crosswiseFlat cars 7342

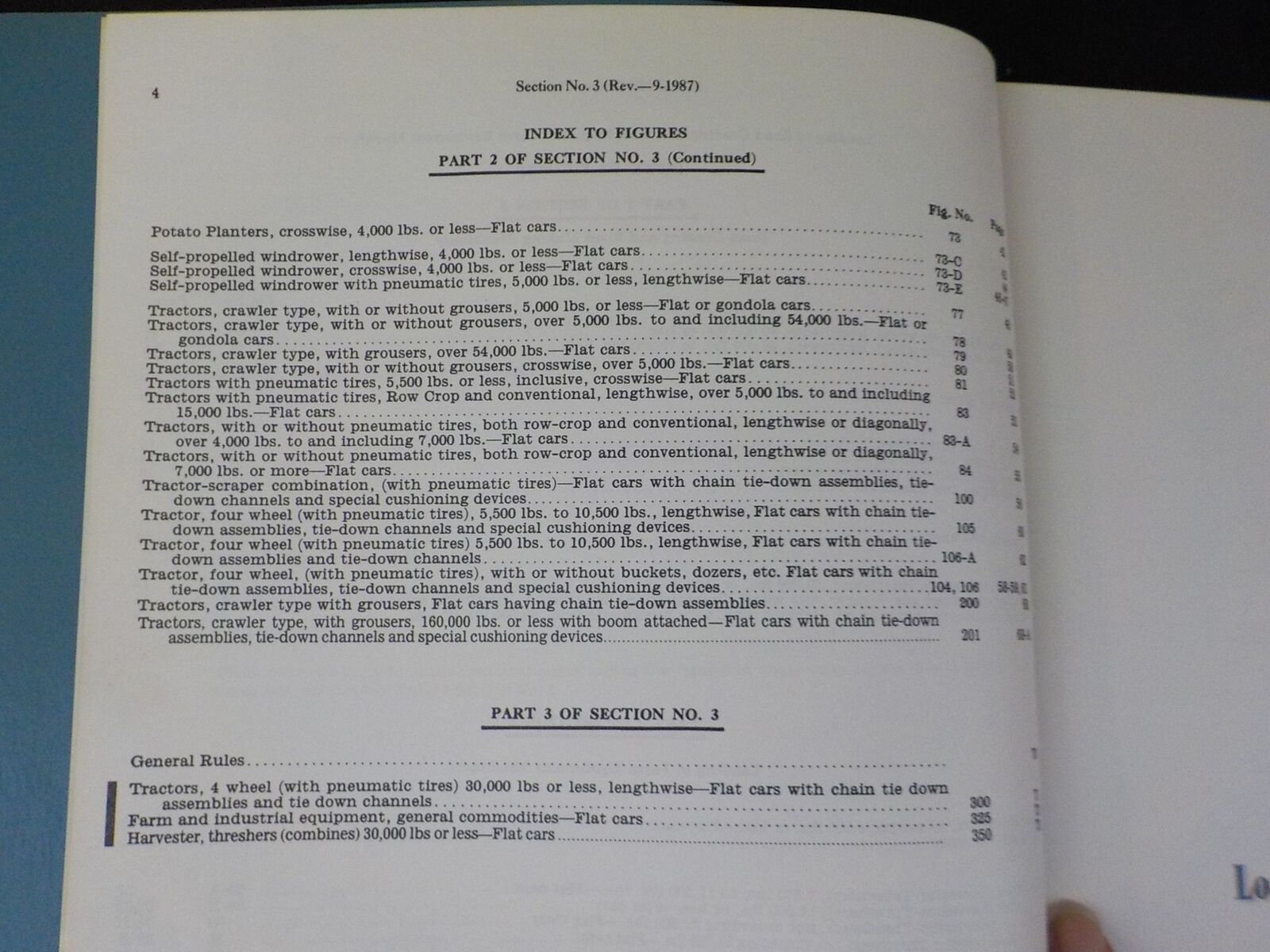

INDEX TO FIGURES

PART 2 OF SECTION NO. 3 (Continued)

Fig. No.Page

Potato Planters, crosswise, 4,000 lbs. or lessFlat cars 7342

Self-propelled windrower, lengthwise, 4,000 lbs. or lessFlat cars 73-C43

Self-propelled windrower, crosswise, 4,000 lbs. or lessFlat cars 73-D44

Self-propelled windrower with pneumatic tires, 5,000 lbs. or less, lengthwiseFlat cars 73-E46-47

Tractors, crawler type, with or without grousers, 5,000 lbs. or lessFlat or gondola cars 7748

Tractors, crawler type, with or without grousers, over 5,000 lbs. to and including 54,000 lbs.Flat or

gondola cars 7849

Tractors, crawler type, with grousers, over 54,000 lbs.Flat cars 7950

Tractors, crawler type, with or without grousers, crosswise, over 5,000 lbs.Flat cars 8051

Tractors with pneumatic tires, 5,500 lbs. or less, inclusive, crosswiseFlat cars 8152

Tractors with pneumatic tires, Row Crop and conventional, lengthwise, over 5,000 lbs. to and including

15,000 lbs.Flat cars 8353

Tractors, with or without pneumatic tires, both row-crop and conventional, lengthwise or diagonally,

over 4,000 lbs. to and including 7,000 lbs.Flat cars 83-A54

Tractors, with or without pneumatic tires, both row-crop and conventional, lengthwise or diagonally,

7,000 lbs. or moreFlat cars 8455

Tractor-scraper combination, (with pneumatic tires)Flat cars with chain tie-down assemblies, tie-

down channels and special cushioning devices 10056

Tractor, four wheel (with pneumatic tires), 5,500 lbs. to 10,500 lbs., lengthwise, Flat cars with chain tie-

down assemblies, tie-down channels and special cushioning devices 10560

Tractor, four wheel (with pneumatic tires) 5,500 lbs. to 10,500 lbs., lengthwise, Flat cars with chain tie-

down assemblies and tie-down channels 106-A62

Tractor, four wheel, (with pneumatic tires), with or without buckets, dozers, etc. Flat cars with chain

tie-down assemblies, tie-down channels and special cushioning devices104, 10658-59, 61

Tractors, crawler type with grousers, Flat cars having chain tie-down assemblies 20068

Tractors, crawler type, with grousers, 160,000 lbs. or less with boom attachedFlat cars with chain tie-down

assemblies, tie-down channels and special cushioning devices 20168-A

PART 3 OF SECTION NO. 3

General Rules 70

I Tractors, 4 wheel (with pneumatic tires) 30,000 lbs or less, lengthwiseFlat cars with chain tie down

assemblies and tie down channels 30071

Farm and industrial equipment, general commoditiesFlat cars 32572

Harvester, threshers (combines) 30,000 lbs or lessFlat cars 35073

All pictures are of the actual item. There may be reflection from the lights in some photos. We try to take photos of any damage. If this is a railroad item, this material is obsolete and no longer in use by the railroad. Please email with questions. Publishers of Train Shed Cyclopedias and Stephans Railroad Directories. Large inventory of railroad books and magazines. Thank you for buying from us.
